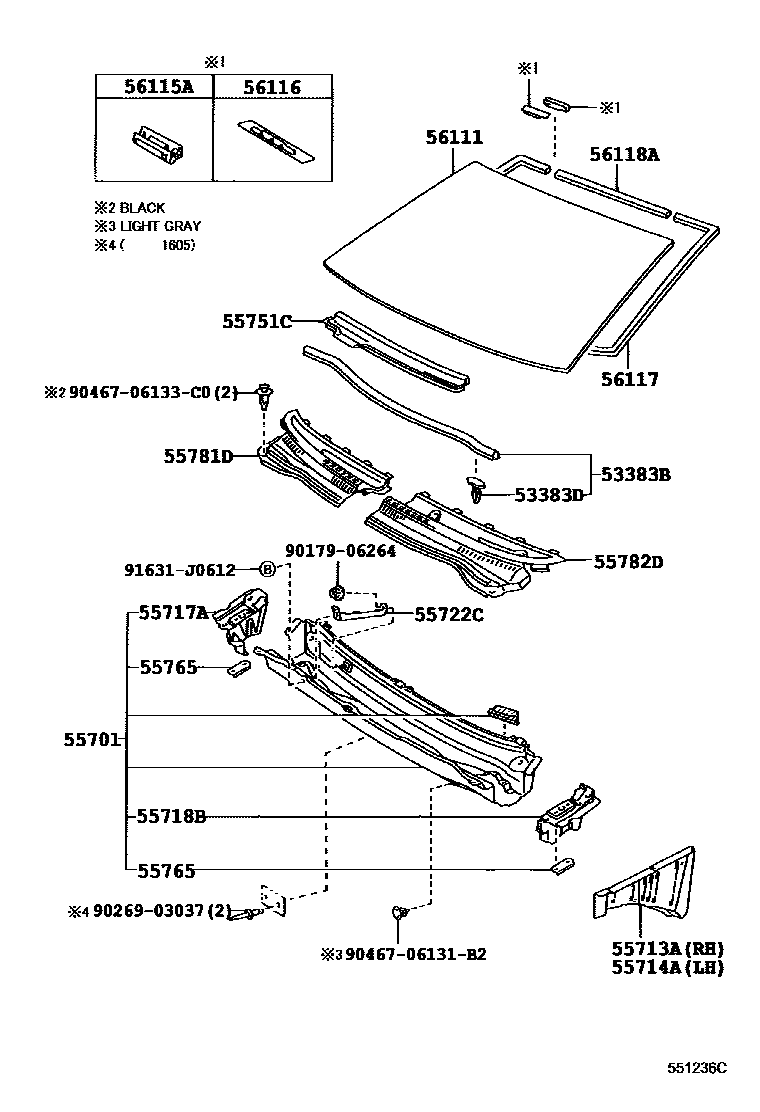

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55751CSHIELD, COWL VENTILATOR SPLASH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,CLEAR
*HSEAL,T=4.76,GREEN
*LAM,T=4.76,GREEN
*HSEAL,T=4.76,GREEN
*LAM,T=4.76,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116SPACER, WINDSHIELD GLASS
56117DAM, FRONT PILLAR, OUTER
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=686
9017906264
main90179-06264
9026903037
main90269-03037
9046706131B2
main90467-06131B2
9046706133C0
main90467-06133C0
91631J0612
main91631-J0612
22 parts on this diagram · 1 diagram in section
