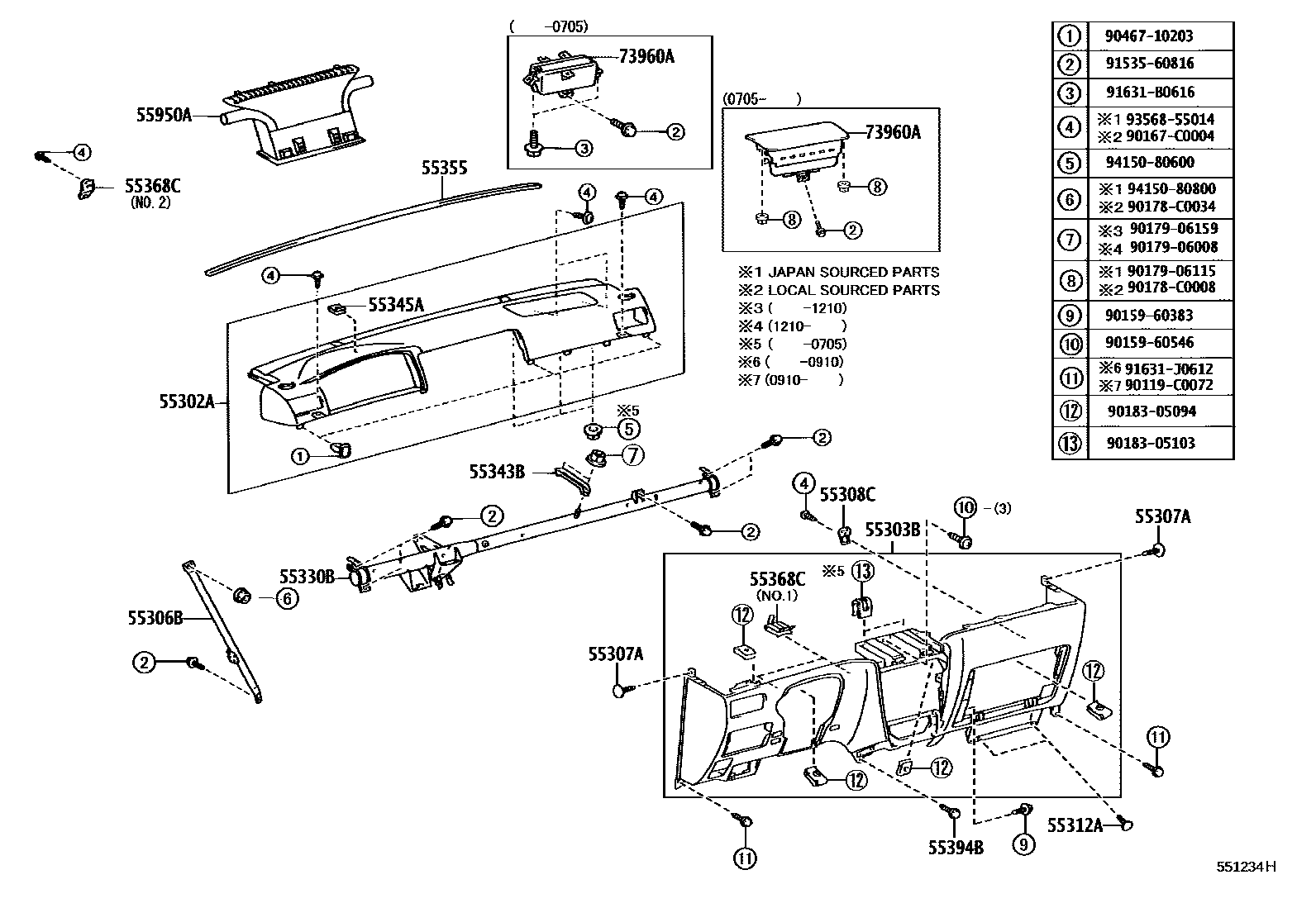

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02061-B0iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

sub55302-02062

main55302-02061-E0iZZE122..GLI,GLXI200402-200705

SANDAL WOOD,TRIM0#

sub55302-02062

main55302-02270-E0iZRE120200705-201210

SANDAL WOOD,TRIM0#

sub55302-02271

main55302-YK010-B1iZRE120201210-201511

DK.GRAY,TRIM0#

sub55302-YK020

main55302-YK020-B0iZRE120201512-201702

DK.GRAY,TRIM0#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02072-A0iZZE122..GLI,GLXI200402-200705

TRIM0#

main55303-02072-B1iZZE122..GLXS200408-200705

TRIM1#

main55303-02270-A0iZRE120200705-201511

IVORY,TRIM0#

sub55303-YK010

main55303-YK010-A0iZRE120201512-201702

IVORY,TRIM0#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-02370iZRE120201108-201210

main55306-12310iZZE122¥2,160200402-201108

55307ACLIP(FOR LOWER SIDE SAFETY PAD SET)

main90467-05020-22iZZE122..4FC..(GLI,GLXI)200402-200705

BLACK,TRIM0#

sub90467-05020¥100

sub90467-05027¥170

main90467-05020-22iZZE122..4FC..GLXS200408-200705

BLACK,TRIM1#

sub90467-05020¥100

sub90467-05027¥170

main90467-05020-22iZZE122..5F200502-201702

BLACK

sub90467-05020¥100

sub90467-05027¥170

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-02060iZRE120201309-201310

sub55308-YK010

main55308-12280iZRE120¥260200402-201309

main55308-YK010iZRE120201311

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0iZZE122..4FC..(GLI,GLXI)200402-200705

BLACK,TRIM0#

sub90467-06089¥90

main90467-06089-C0iZZE122..4FC..GLXS200408-200705

BLACK,TRIM1#

sub90467-06089¥90

main90467-06089-C0iZZE122..5F200502-201702

BLACK

sub90467-06089¥90

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02140iZZE122200402-200603

main55330-02470iZZE122200603-200705

main55330-02471iZRE120200705-201210

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02100iZRE120201111-201210

main55343-12060iZZE122¥910200402-201111

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-02030iZRE120201206-201210

main55345-12060iZZE122¥90200402-201206

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02050iZZE122200402-201309

sub55355-YK010

main55355-YK010iZRE120201310

55368CBRACKET, METER MOUNTING

main55362-02020iZZE122200402-200705

NO.1

main55362-02030iZRE120201206-201210

NO.1

main55362-02030iZRE120201210

main55362-12050iZRE120¥160200705-201206

NO.1

main55368-12090iZRE120¥300200705-201210

NO.2

main55368-12090iZZE122¥300200402-200705

55394BBOLT, INSTRUMENT PANEL

main55394-12010iZRE120¥120200402-201210

OD=6

main55394-12020iZZE122¥160200402-200705

OD=7

55950ANOZZLE ASSY, DEFROSTER

main55950-02100iZRE120200402-201512

sub55950-YK010

main55950-YK010iZRE120201512

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02110iZZE122200603-200705

sub73960-02600

main73960-02150-E0iZRE120200705-201210

SANDAL WOOD,TRIM0#

sub73960-02610

main73960-12060iZZE122¥120,000200402-200602

sub73960-12500

main73960-YK010-B1iZRE120201210-201410

DK.GRAY,TRIM0#

sub73960-YK030

main73960-YK020-B0iZRE120201410-201702

DK.GRAY,TRIM0#

sub73960-YK040

90119C0072

main90119-C0072

9015960383

main90159-60383¥70

9015960546

main90159-60546¥60

90167C0004

main90167-C0004

90178C0008

main90178-C0008

90178C0034

main90178-C0034

9017906008

main90179-06008¥60

9017906115

main90179-06115¥120

9017906159

main90179-06159¥70

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046710203

main90467-10203¥60

9153560816

main91535-60816¥130

91631B0616

main91631-B0616¥90

91631J0612

main91631-J0612¥110

9356855014

main93568-55014¥70

9415080600

main94150-80600¥60

9415080800

main94150-80800¥90

32 parts on this diagram · 7 diagrams in section
