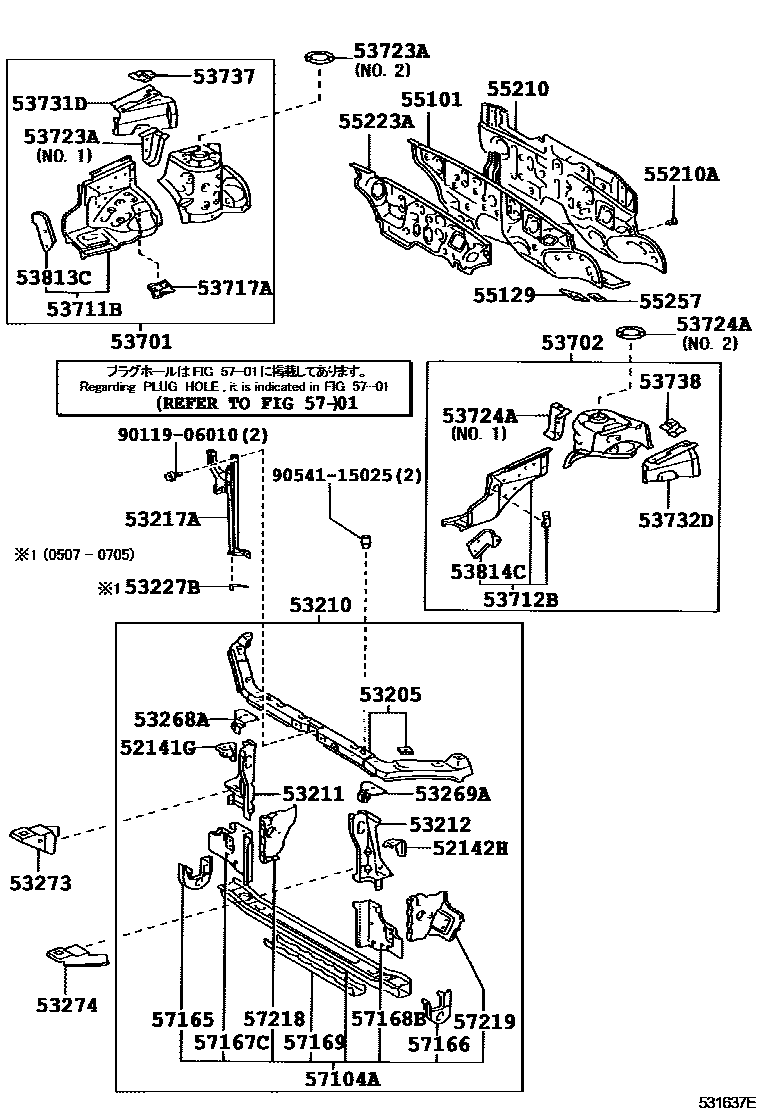

FRONT FENDER APRON & DASH PANEL
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53210SUPPORT ASSY, RADIATOR
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
53227BPLATE, HOOD LOCK SUPPORT
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
NO.2
N0.1
N0.1
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
NO.2
N0.1
N0.1
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55129COVER, DASH PANEL HOLE
RH
RH
LH
LH
55210ACLIP
BLACK,TRIM0#
55223AINSULATOR, DASH PANEL, OUTER
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57169MEMBER, FRONT FLOOR, FRONT RH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
9011906010
9054115025
42 parts on this diagram · 3 diagrams in section
