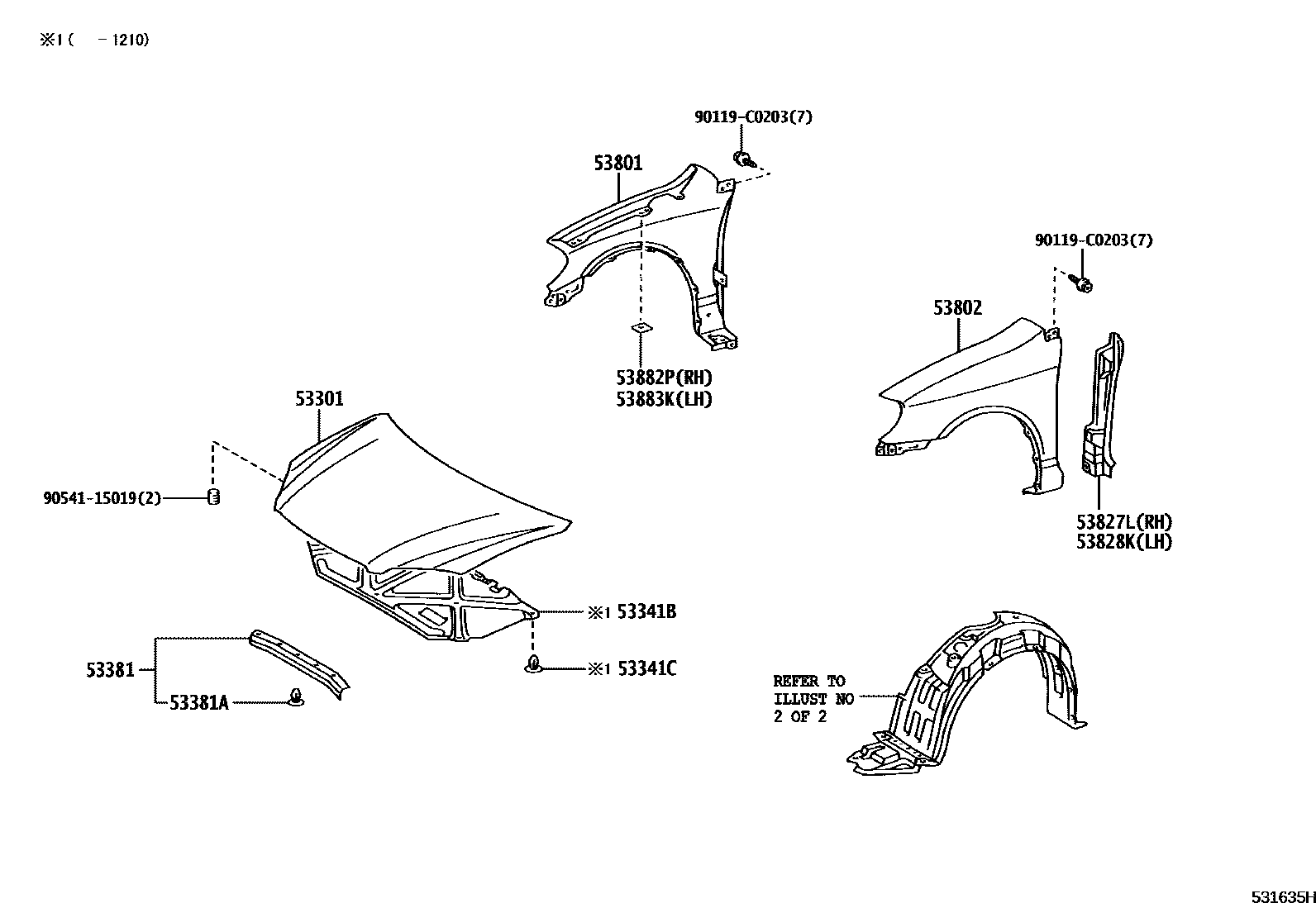

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-02140iZZE122200402-201210

main53301-YK010iZRE120201210

53341BINSULATOR, HOOD

main53341-02150iZZE122200601-201210

main53341-12220iZZE122200402-200601

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iZRE120200402-201210

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02100iZZE122200402-201210

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iZZE122200402-201210

53801FENDER SUB-ASSY, FRONT RH

main53811-02150iZRE120200402-201210

main53811-02160iZZE122..GLXS200408-200705

main53811-YK010iZRE120201210

53802FENDER SUB-ASSY, FRONT LH

main53812-02150iZZE122..GLI,GLXI200402-201210

main53812-02160iZZE122..GLXS200408-200705

main53812-YK010iZRE120201210

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12050iZRE120200402-201210

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12050iZZE122200402-201210

53882PSEAL, FRONT FENDER, RH

main53882-16030iZZE122200402-201210

53883KSEAL, FRONT FENDER, LH

main53882-16030iZZE122200402-201210

90119C0203

main90119-C0203

9054115019

main90541-15019

13 parts on this diagram · 2 diagrams in section
