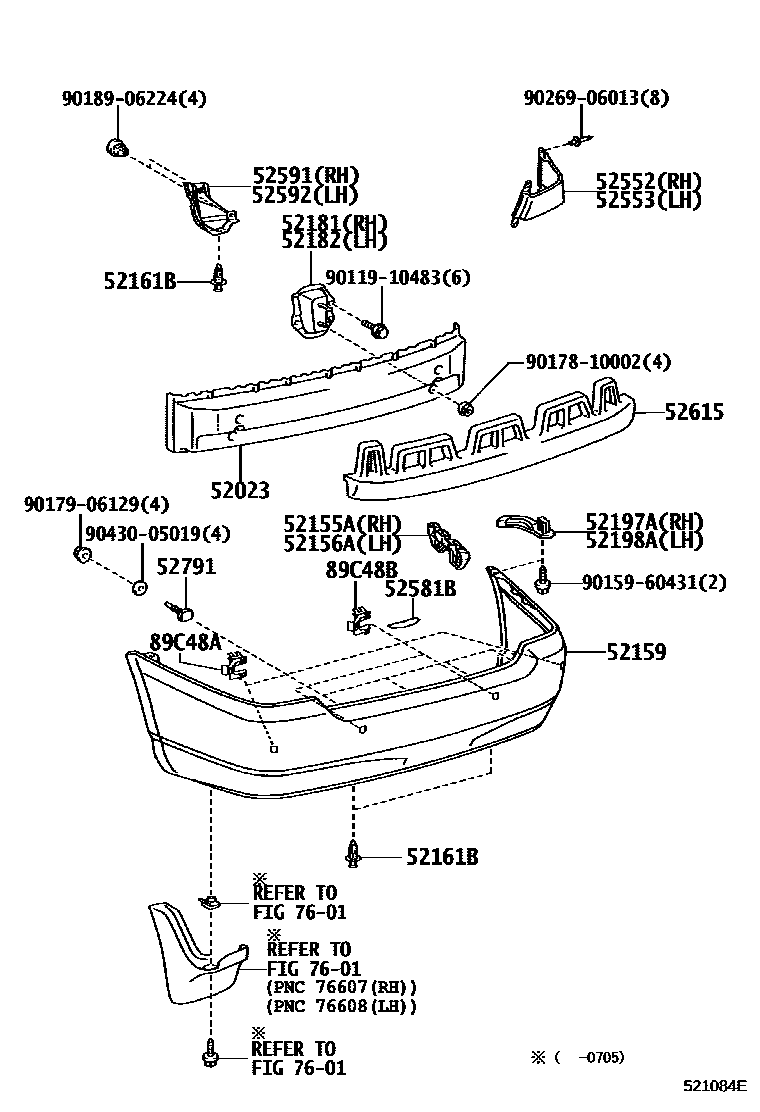

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,W(CLEARANCE & BACK SONAR)
PAINT REQ.
52161BPIECE, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52791BOLT, BUMPER MOULDING SET, NO.1
7601
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011910483
main90119-10483
9015960431
main90159-60431
9017810002
main90178-10002
9017906129
main90179-06129
9018906224
main90189-06224
9026906013
main90269-06013
9043005019
main90430-05019
26 parts on this diagram · 2 diagrams in section
