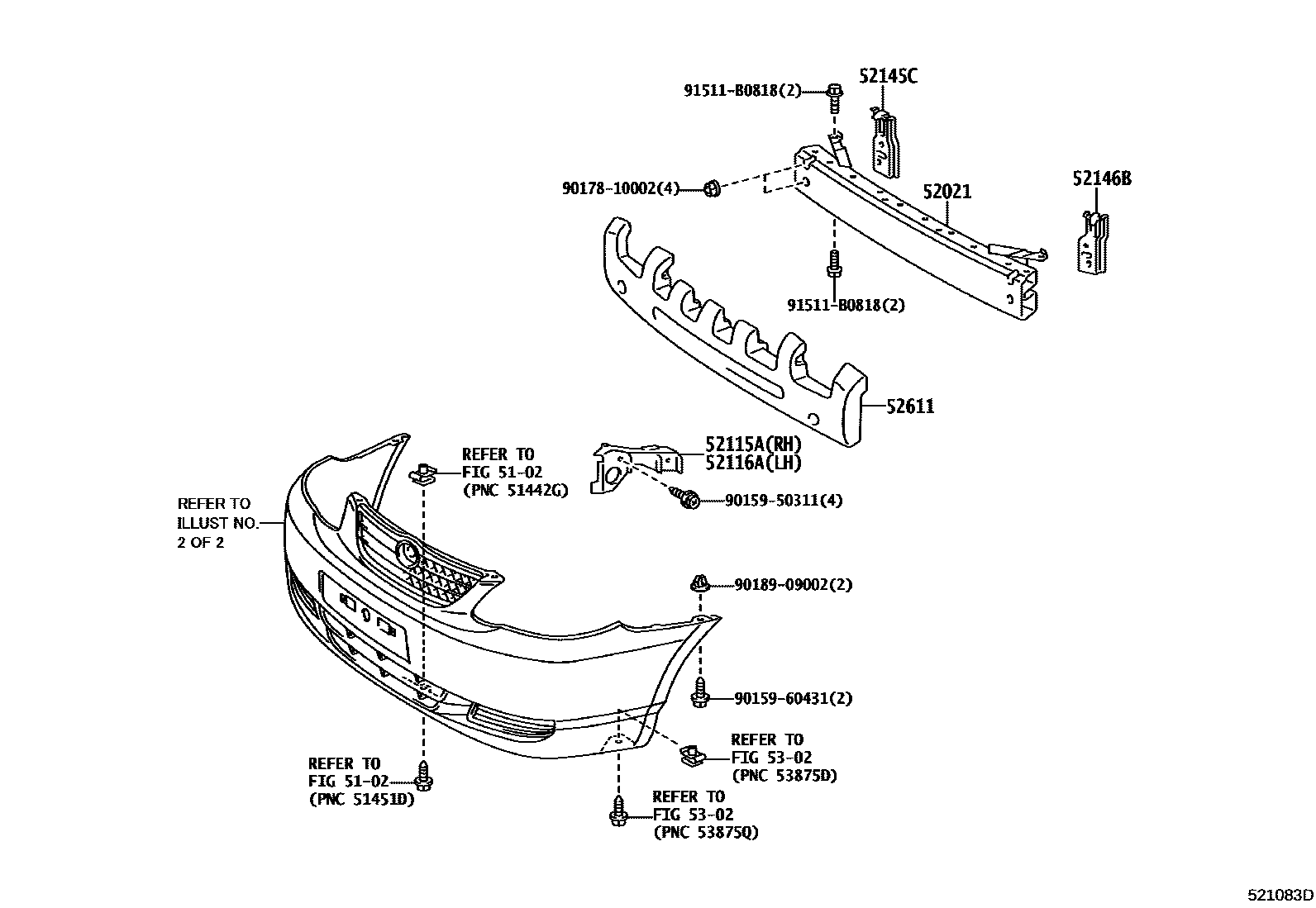

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02110iZZE122200402-201210

main52021-YK010iZRE120201210

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02090iZZE122200601-201210

main52115-12400iZZE122200402-200601

main52115-YK010iZRE120201210-201702

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02090iZRE120200601-201210

main52116-12360iZZE122200402-200601

main52116-YK010iZRE120201210

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-02060iZZE122200402-201210

main52145-YK010iZRE120201210

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-02050iZZE122200402-201210

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02080iZZE122200402-200608

main52611-02180iZZE122200609-201005

main52611-YK010iZRE120201005-201210

main52611-YK020iZRE120201210

5302

9015950311

main90159-50311

9015960431

main90159-60431

9017810002

main90178-10002

9018909002

main90189-09002

91511B0818

main91511-B0818

13 parts on this diagram · 6 diagrams in section
