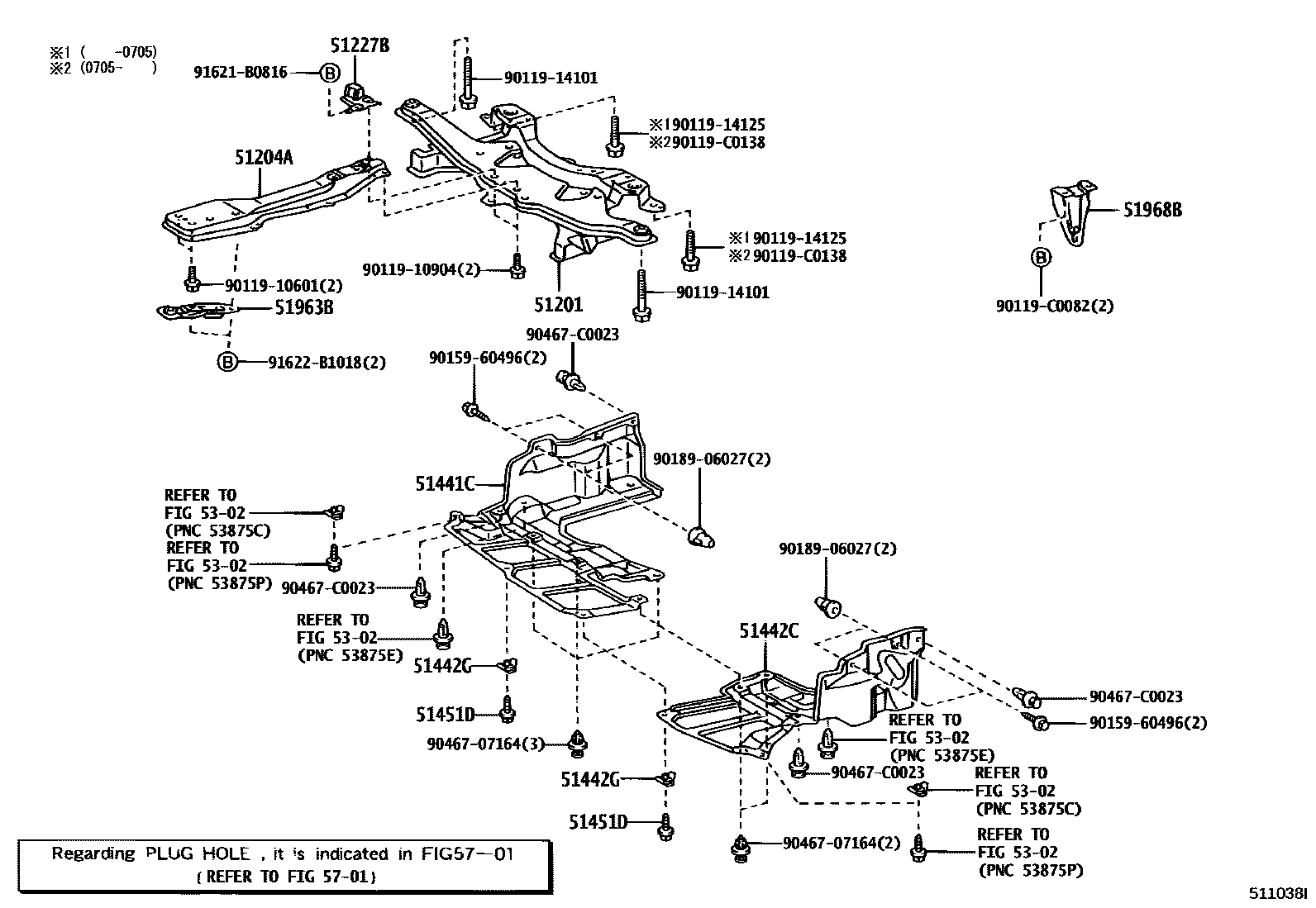

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02110iZZE122200506-201210

main51201-12431iZZE122200402-200506

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02060iZRE120200506-201104

main51204-02061iZRE120201104-201702

main51204-12150iZZE122200402-200506

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-02070iZZE122200705-201104

main51227-12070iZZE122200402-200704

51441CCOVER, ENGINE UNDER, RH

main51441-02160iZZE122200402-200705

main51441-02270iZRE120200705-201210

51442CCOVER, ENGINE UNDER, LH

main51442-02091iZZE122..5F200502-200705

main51442-02250iZZE122..4FC200402-200705

main51442-02340iZRE120..4FC200705-201210

main51442-02350iZRE120..5F200705-201210

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-05138iZZE122200402-201702

51451DSCREW, NO.1

main90159-60488iZZE122200402-200705

main90159-60488iZRE120200705-201210

(J)

main90159-C0012iZRE120200705-201702

(L)

51963BHOOK, TRANSPORT, FRONT RH

main51963-02200iZRE120201210-201608

(L)

main51963-12240iZRE120200402-201210

51968BHOOK, TRANSPORT, REAR LH

main51968-02070iZZE122200402-201210

5302

5701

9011910601

main90119-10601

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

90119C0082

main90119-C0082

90119C0138

main90119-C0138

9015960496

main90159-60496

9018906027

main90189-06027

9046707164

main90467-07164

90467C0023

main90467-C0023

91621B0816

main91621-B0816

91622B1018

main91622-B1018

23 parts on this diagram · 1 diagram in section
