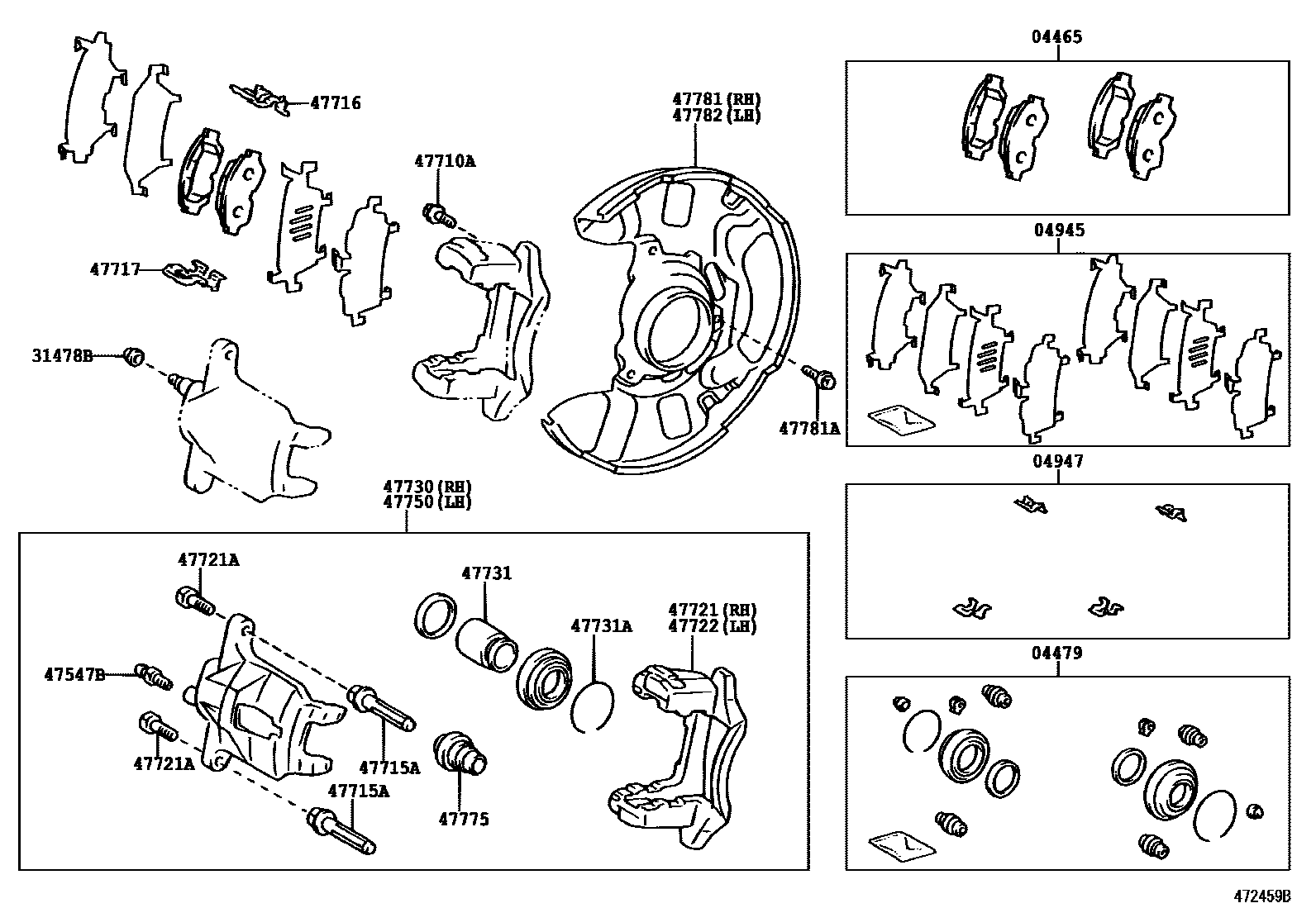

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-21030iZZE122200502-201411

MARK SUMITOMO PS558H

main04465-21040iZRE120201411

MARK SUMITOMO PS558H

main04465-52250iZZE122200402-200502

MARK AISIN PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02080iZZE122200502-200512

sub04478-02140

main04478-02140iZRE120200512-201210

main04479-20320iZZE122200402-200502

sub04478-47060

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0P020iZRE120200512-201210

main04945-13030iZZE122200502-200511

main04945-20210iZZE122200402-200502

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iZZE122200402-200502

main04947-20120iZRE120200502-201210

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iZZE122200502-201210

main31478-30010iZZE122200402-200502

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZZE122200402-201210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZZE122200402-201702

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-02331iZRE120200512-201210

main47715-22080iZZE122200502-200512

main47715-52010iZZE122200402-200502

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200iZZE122200402-200502

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100iZZE122200402-200502

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02331iZRE120200608-201210

main47721-20440iZZE122200402-200502

main47721-20460iZZE122200502-200608

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZZE122200402-201210

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02331iZZE122200608-201210

main47722-20130iZZE122200402-200502

main47722-20150iZZE122200502-200608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02331iZRE120200512-201210

main47730-20600iZZE122200402-200502

main47730-20640iZZE122200502-200512

47731PISTON, FRONT DISC BRAKE

main47731-20260iZZE122200402-200502

main47731-44010iZZE122200502-201210

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iZZE122200402-200502

main90522-66001iZRE120200502-201210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02331iZRE120200512-201210

main47750-20510iZZE122200402-200502

main47750-20640iZZE122200502-200512

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010iZZE122200402-200502

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02260iZRE120201508-201702

main47781-12240iZRE120200402-201507

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iZRE120200402-201702

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02260iZRE120201508-201702

main47782-12240iZZE122200402-201507

21 parts on this diagram · 2 diagrams in section
