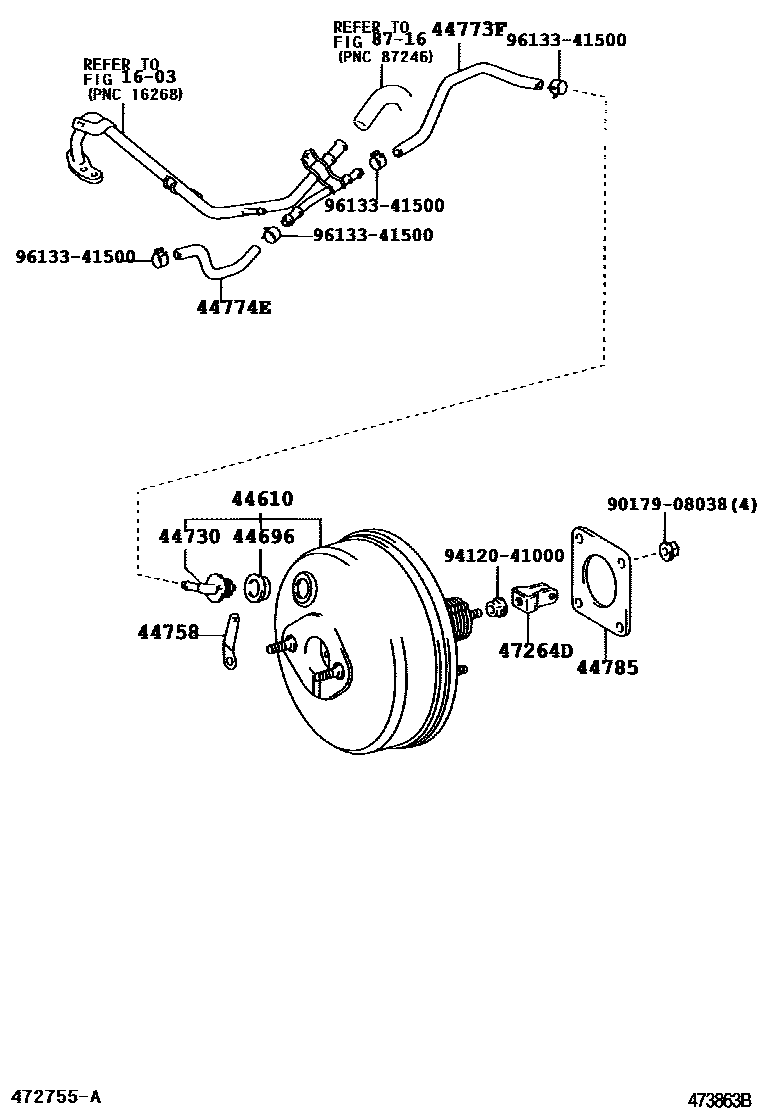

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1603

44610BOOSTER ASSY, BRAKE

main44610-02310iZZE122200507-201210

(L)

main44610-1E600iZZE122¥46,600200402-201301

(J)

44696GROMMET, CHECK VALVE

main90480-24439iZZE122¥390200402-201210

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZZE122¥1,720200402-201210

44758BRACKET, VACUUM CHECK VALVE

main44758-02020iZRE120200402-201210

44773FHOSE, UNION TO CHECK VALVE

main44773-02100iZRE120200705-200910

sub44773-02190

main44773-02190iZRE120200910-201210

main44773-12870iZZE122200402-200705

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12730iZZE122200402-200705

44785GASKET, BRAKE BOOSTER

main44785-02030iZZE122200402-201210

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iZZE122¥250200402-201210

8716

9017908038

main90179-08038¥130

9412041000

main94120-41000¥80

9613341500

main96133-41500¥140

13 parts on this diagram · 2 diagrams in section
