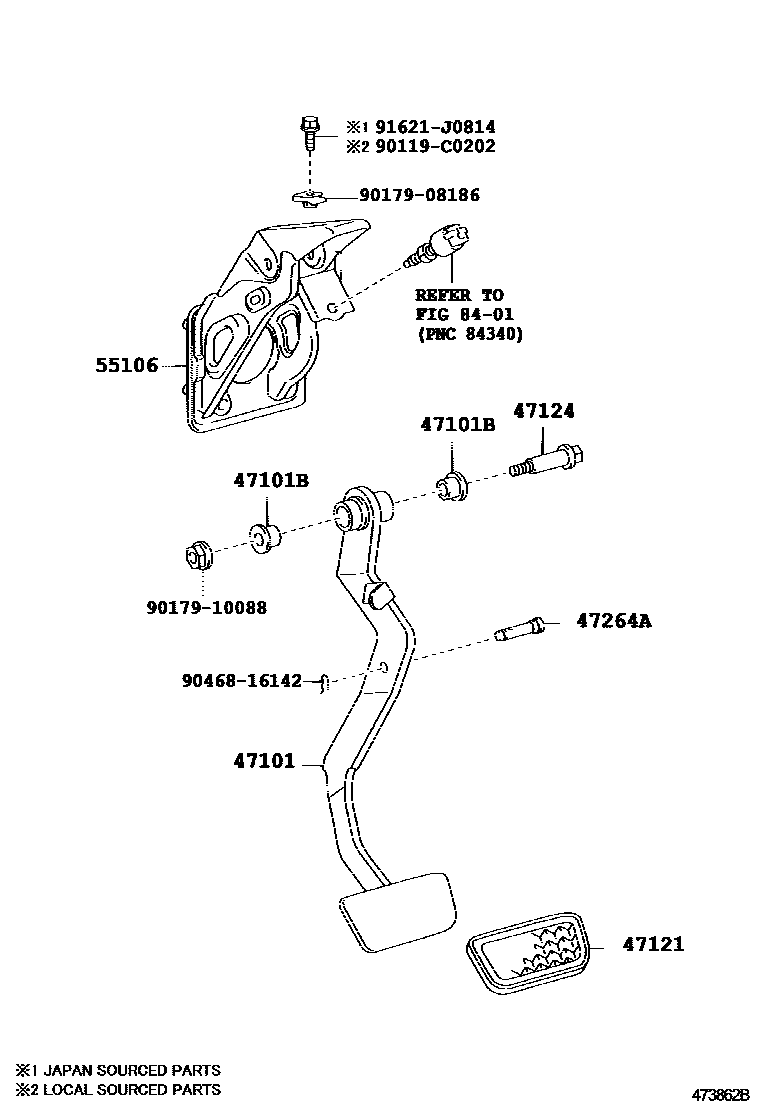

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12610iZZE122..5F200502-201210

main47101-12620iZZE122..4FC200402-201210

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZE122200402-201210

47121PAD, BRAKE PEDAL

main31321-52010iZRE120..5F200502-201210

main47121-52010iZRE120..4FC200402-201210

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE120200402-201210

47264APIN(FOR PUSH ROD)

main47148-12070iZRE120200402-201210

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02110iZZE122..4FC200402-201107

main55106-12660iZZE122..5F200502-200606

8401

90119C0202

main90119-C0202

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

12 parts on this diagram · 1 diagram in section
