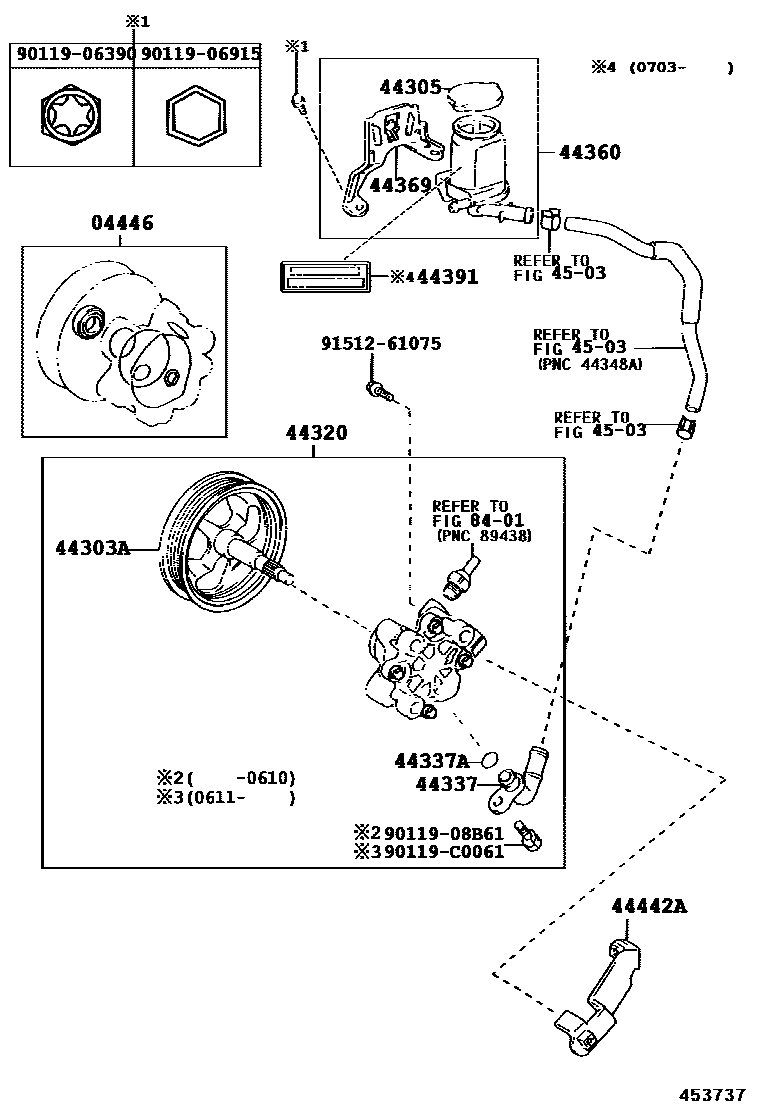

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-02130iZZE122200611

main04446-20170iZZE122¥860200510-200611

main04446-32050iZZE122¥970200402-200510

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-32010iZZE122¥8,200200402

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iZZE122¥1,590200402

sub44305-28060¥1,590

44320PUMP ASSY, VANE

main44310-02120iZZE122200407

(L)

main44310-12540iZZE122¥94,600200402-200512

(J)

44337UNION, POWER STEERING SUCTION PORT

main44337-06100iZZE122200611

main44337-32110iZZE122..GLXS;ZZE122..5F..(GLI,GLXI)¥1,430200402-200610

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iZZE122¥140200402

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-02090iZZE122200402

(L)

main44360-12100iZZE122¥10,300200402-200512

(J)

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iZZE122¥1,870200402

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-33010iZZE122200703-200705

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZE122¥670200402

4503

8401

9011906390

main90119-06390¥70

9011906915

main90119-06915¥60

9011908B61

main90119-08B61¥60

90119C0061

main90119-C0061

9151261075

main91512-61075¥220

17 parts on this diagram · 1 diagram in section
