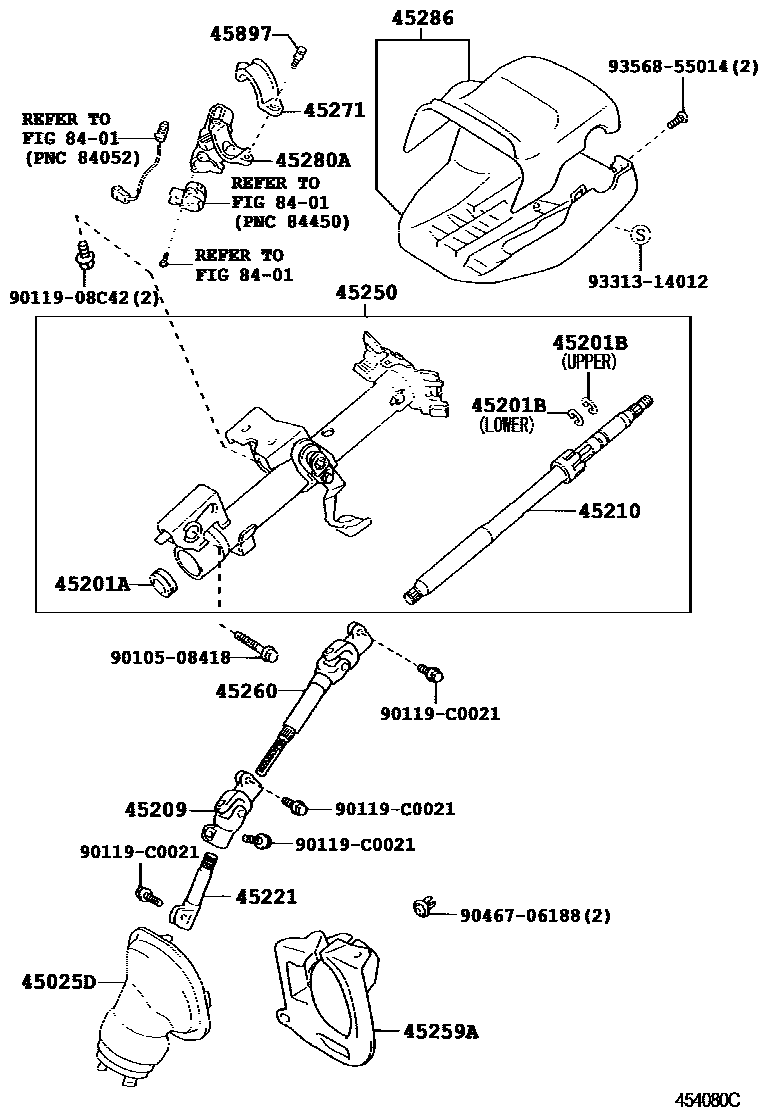

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
W(AUTOMATIC LIGHT CONTROL),DK.GRAY,TRIM16
W(AUTOMATIC LIGHT CONTROL),SANDAL WOOD,TRIM05
45897BOLT, STEERING LOCK SET
8401
9010508418
9011908C42
90119C0021
main90119-C0021
9046706188
9331314012
9356855014
20 parts on this diagram · 2 diagrams in section
