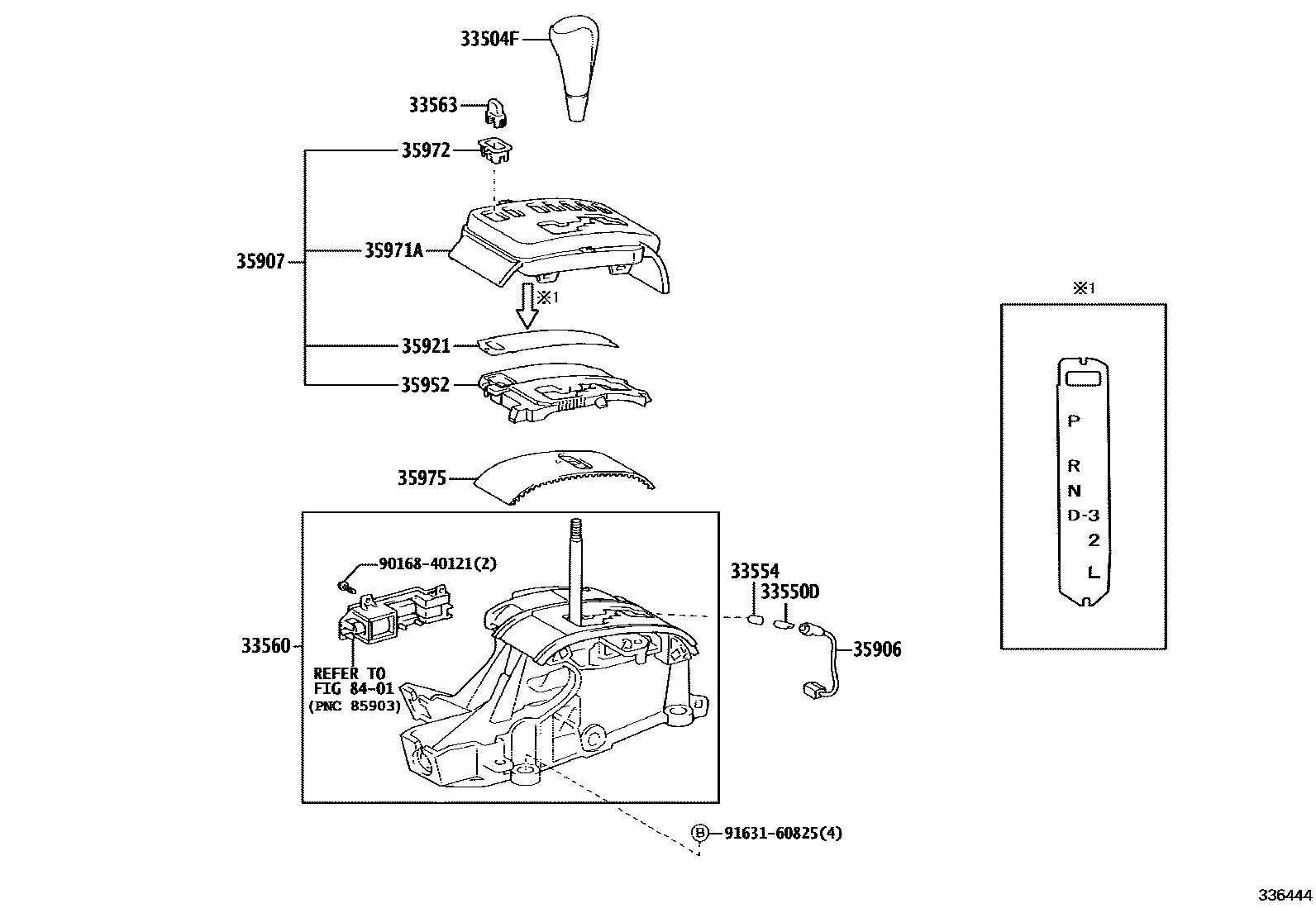

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iZRE120..5F201210-201702

DK.GRAY,TRIM0#

sub33504-12180¥3,810

main33504-12180-L0iZRE120..5F200502-201210

SANDAL WOOD,TRIM0#

sub33504-12180¥3,810

main33504-22140-B2iZZE122..5F..GLXS200502-200705

DK.GRAY,TRIM1#

sub33504-22140¥7,400

main33504-22140-E2iZZE122..5F..GLXI200502-200705

SANDAL WOOD,TRIM0#

sub33504-22140¥7,400

main33504-22170-E1iZZE122..4FC..GLI200402-201210

SANDAL WOOD,TRIM0#

sub33504-22170¥2,730

main33504-30281-B1iZZE122..4FC..GLXS200408-200705

DK.GRAY,TRIM1#

sub33504-52090¥6,200

sub33504-30281¥6,200

sub33504-22170¥2,730

main33504-30281-E0iZZE122..4FC..GLXI200402-200705

SANDAL WOOD,TRIM0#

sub33504-52090¥6,200

sub33504-30281¥6,200

sub33504-22170¥2,730

main33504-YK010-B1iZRE120..4FC201210-201702

DK.GRAY,TRIM0#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iZRE120..4FC¥120200402-201210

14V 1.4W

33554CAP, SHIFT LEVER

main33554-12100iZRE120..4FC¥120200402-201210

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12090iZZE122..4FC¥55,300200402-201210

33563BUTTON, SHIFT LOCK RELEASE

main33563-12110iZRE120..4FC¥120200402-201210

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12190iZZE122..4FC¥720200402-201210

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-12020iZRE120..4FC¥2,980200402-201210

35921PLATE, CONTROL POSITION INDICATOR

main35921-12580iZZE122..4FC¥700200402-201210

35952LENS, POSITION INDICATOR

main35952-12030iZZE122..4FC¥410200402-201210

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12510iZZE122..4FC¥1,610200402-201210

35972COVER, POSITION INDICATOR HOUSING

main35972-12020iZZE122..4FC¥100200402-201210

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30270iZZE122..4FC¥650200402-201210

8401

9016840121

main90168-40121¥100

9163160825

main91631-60825¥80

15 parts on this diagram · 6 diagrams in section
