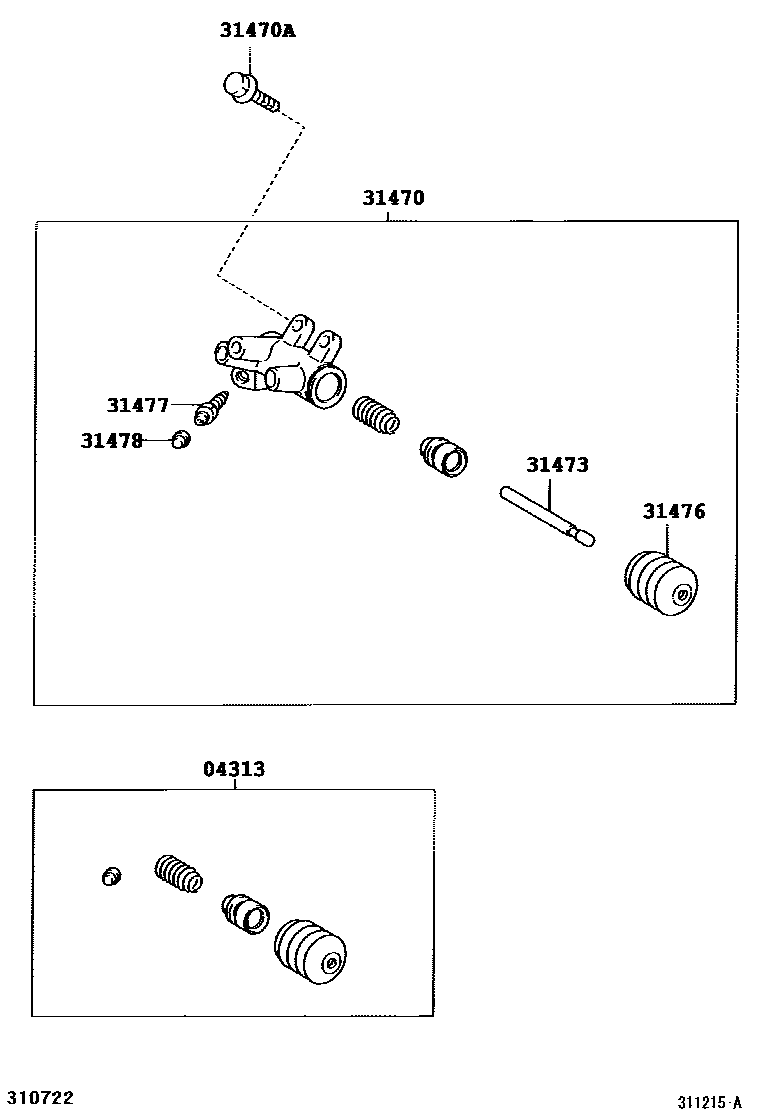

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-02010iZRE120..5F200705-201301

main04313-02011iZRE120..5F201301

main04313-17040iZZE122..5F¥860200502-200705

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-02020iZRE120..5F200705-201301

sub31470-02021

main31470-02021iZRE120..5F201301

main31470-12111iZZE122..5F¥7,400200502-200705

sub31470-12140¥7,400

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZZE122..5F¥170200502-201011

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE122..5F¥470200502-200705

main31473-22030iZRE120..5F¥520200705-201210

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-02010iZRE120..5F200705-201210

main31476-22010iZZE122..5F¥230200502-200705

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZRE120..5F¥200200502-201210

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-0N010iZRE120..5F200705-201210

main31478-30010iZZE122..5F¥160200502-200705

7 parts on this diagram · 2 diagrams in section
