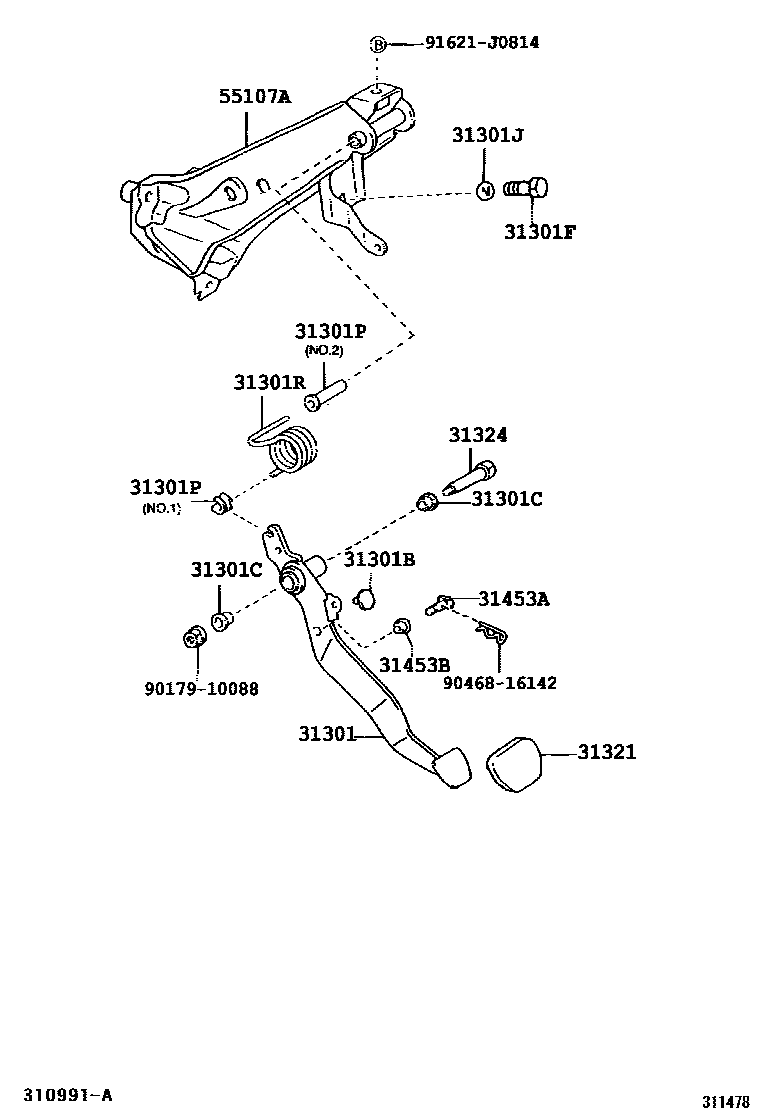

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12470iZZE122..5F¥2,500200502-201210

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZE122..5F¥110200502-201210

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZE122..5F¥120200502-201210

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZE122..5F¥110200502-201011

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iZZE122..5F¥80200502-201011

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZZE122..5F¥110200502-200705

NO.1

main90389-05019iZZE122..5F¥270200502-200705

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iZZE122..5F¥850200502-200705

31321PAD, CLUTCH PEDAL

main31321-52010iZZE122..5F¥200200502-201210

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZE122..5F¥190200502-201011

main90109-10174iZRE120..5F¥190201011-201210

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iZZE122..5F¥220200502-201210

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE122..5F¥240200502-201210

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12220iZZE122..5F¥3,370200502-201107

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

91621J0814

main91621-J0814¥60

15 parts on this diagram · 4 diagrams in section
