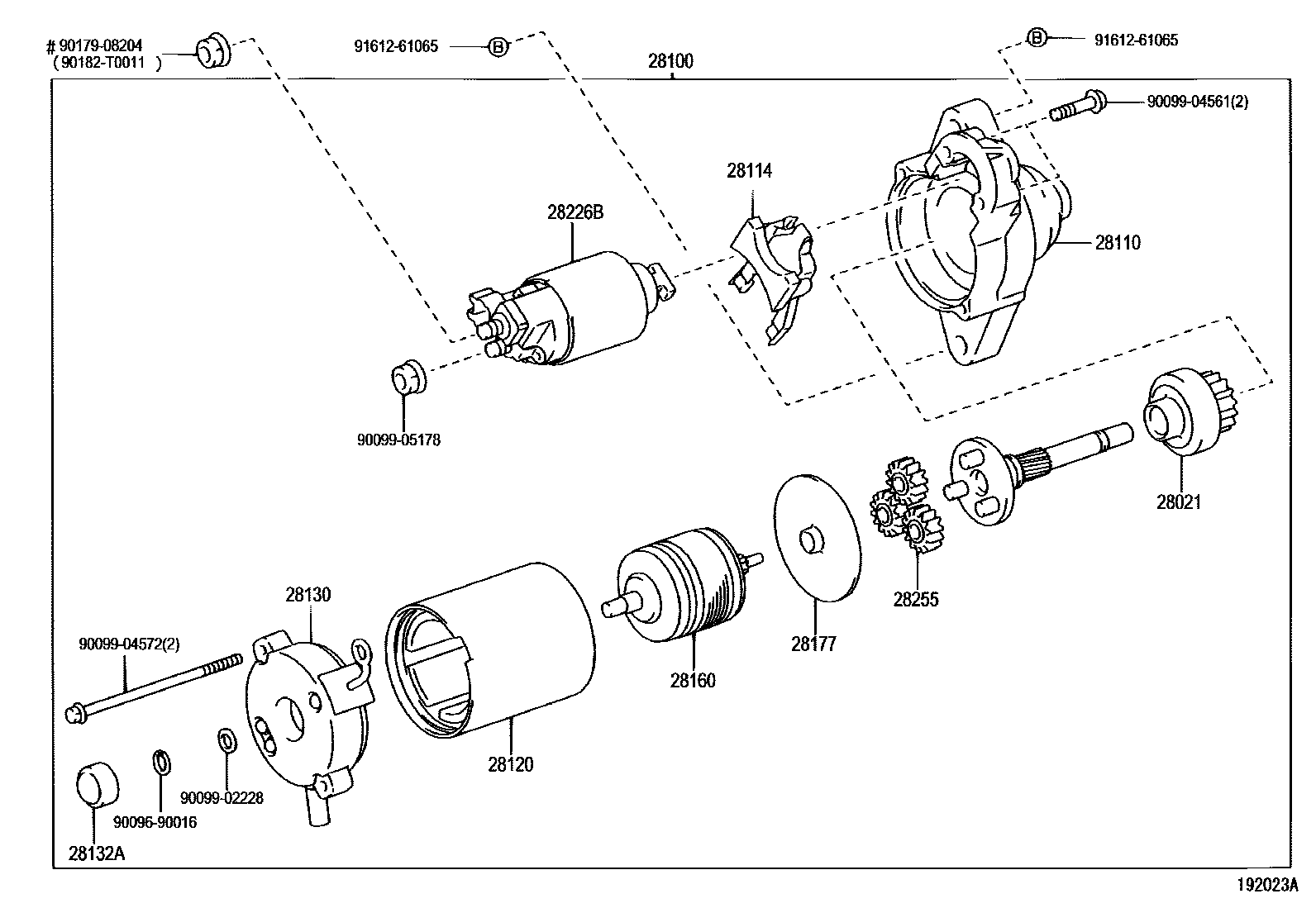

STARTER

0001 112V 1.6KW 0002 112V 1.6KW 0003 112V 1.6KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1ZZFE..ZZE122200402-200705

main28021-37050i1ZRFE..ZRE120200705-201301

28100STARTER ASSY

main28100-0T020i1ZRFE..ZRE120200705-201212

12V 1.6KW

sub28100-0T300

main28100-0T300i1ZRFE..ZRE120201301

12V 1.6KW

main28100-22090i1ZZFE..ZZE122200402-200705

12V 1.6KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0T020i1ZRFE..ZRE120200705-201109

main28110-22060i1ZZFE..ZZE122200402-200705

main28110-37040i1ZRFE..ZRE120201301

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i1ZZFE..ZZE122200402-200705

28120YOKE ASSY, STARTER

main28120-28040i1ZZFE..ZZE122200402-200705

sub28120-28060

main28120-28060i1ZRFE..ZRE120201301

main28120-37050i1ZRFE..ZRE120200705-201301

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0T020i1ZRFE..ZRE120200705-201109

main28130-21060i1ZZFE..ZZE122200402-200705

main28130-37120i1ZRFE..ZRE120201301

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1ZZFE..ZZE122200402-200705

28160ARMATURE ASSY, STARTER

main28160-0T020i1ZRFE..ZRE120200905-201301

main28160-21060i1ZZFE..ZZE122200402-200705

main28160-37050i1ZRFE..ZRE120200705-200905

sub28160-75210

28177PLATE(FOR STARTER ARMATURE)

main28177-0T020i1ZRFE..ZRE120200705-201109

main28177-28040i1ZZFE..ZZE122200402-200705

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i1ZZFE..ZZE122200402-200705

main28226-37120i1ZRFE..ZRE120201301

28255GEAR, PLANET

main28255-28040i1ZZFE..ZZE122200402-200705

main28255-37050i1ZRFE..ZRE120200705-201109

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

90182T0011

main90182-T0011

9161261065

main91612-61065

19 parts on this diagram · 3 diagrams in section
