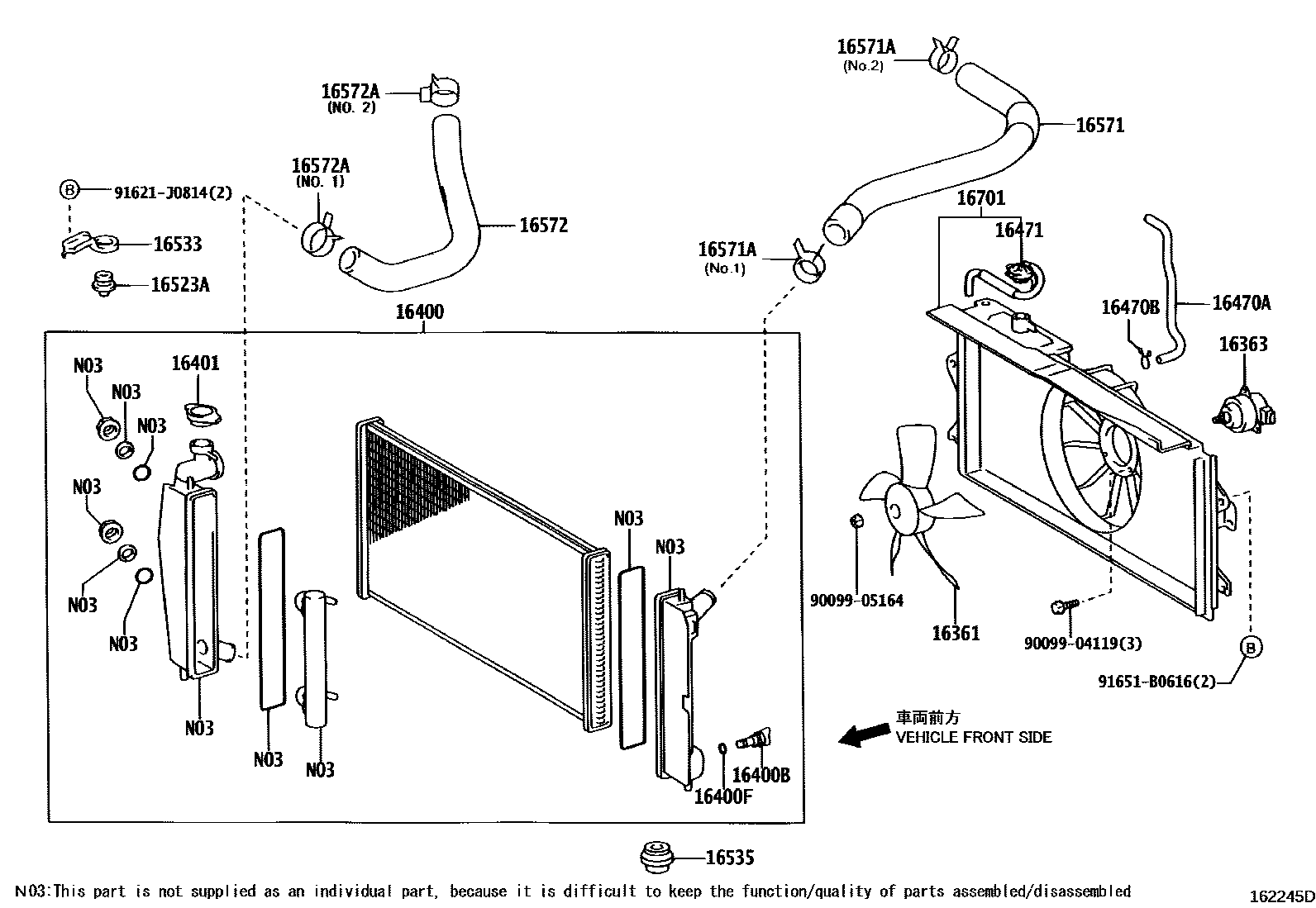

RADIATOR & WATER OUTLET
16400BPLUG, RADIATOR DRAIN COCK
NO.2
NO.1
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
sub16571-0D210
BEIJING SPEC,REFER TO FIG 22-11
BEIJING SPEC,REFER TO FIG 22-11
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.1
NO.2
NO.1
NO.2
NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1 & NO.2
NO.2
NO.1
NO.1
16701SHROUD SUB-ASSY, FAN
9009904119
main90099-04119
9009905164
main90099-05164
91621J0814
main91621-J0814
91651B0616
main91651-B0616
22 parts on this diagram · 6 diagrams in section
