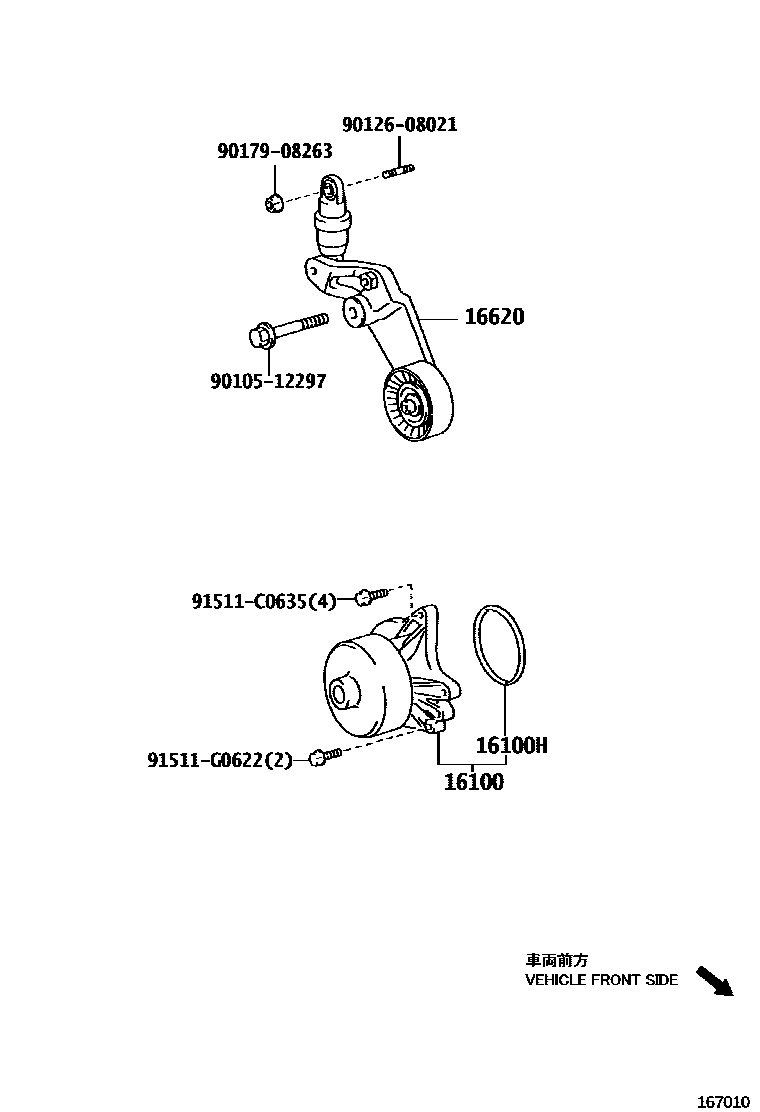

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09550i1ZRFE..ZRE120200909-201210

(L)

main16100-29175i1ZZFE..ZZE122200402-200705

(L)

sub16100-29415

main16100-29415i1ZZFE..ZZE122200402-200705

(J)

main16100-39465i1ZRFE..ZRE120200705-200906

(J)

sub16100-39466

sub91551-80825

main16100-39466i1ZRFE..ZRE120200906-200909

(J)

16100HRING, O(FOR WATER PUMP)

main90301-69006i1ZZFE..ZZE122200402-200705

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22011i1ZZFE..ZZE122200402-200412

sub16620-22012

main16620-22012i1ZZFE..ZZE122200412-200609

sub16620-22013

main16620-22013i1ZZFE..ZZE122200609-200705

sub16620-0W093

9010512297

main90105-12297

9012608021

main90126-08021

9017908263

main90179-08263

91511C0635

main91511-C0635

91511G0622

main91511-G0622

8 parts on this diagram · 2 diagrams in section
