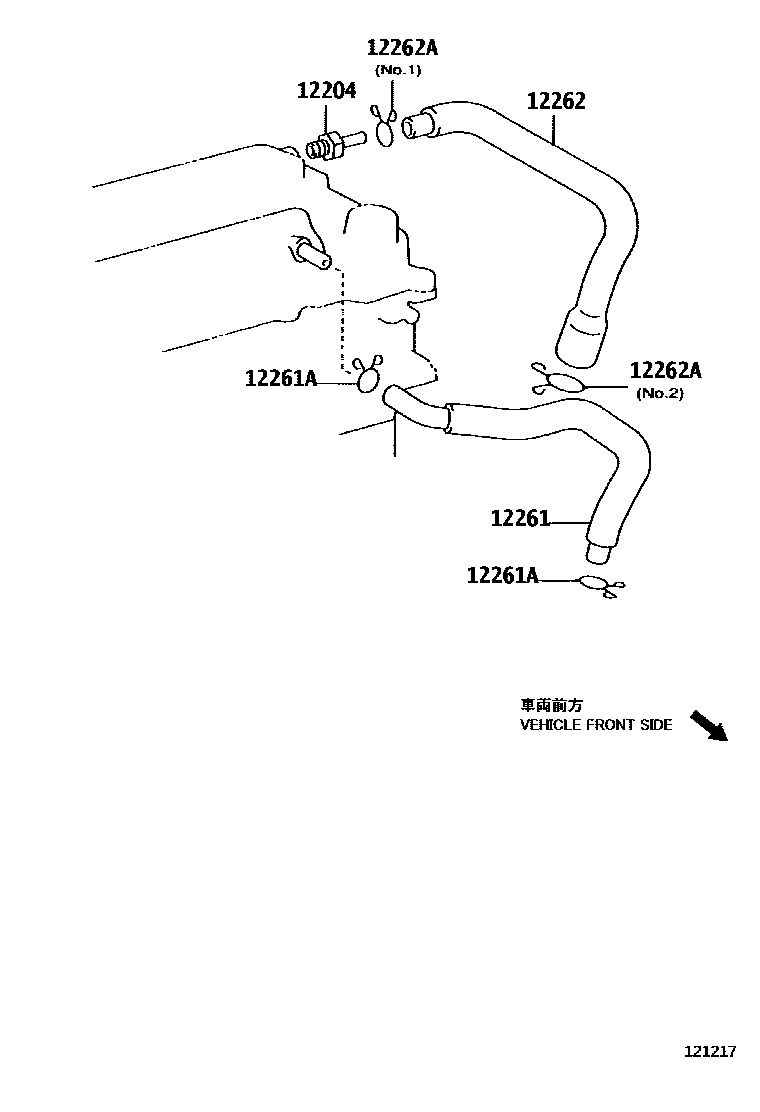

VENTILATION HOSE
12261HOSE, VENTILATION
(L)
(J)
BEIJING SPEC,REFER TO FIG 22-11
(J)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
NO.1
BEIJING SPEC,REFER TO FIG 22-11,NO.1
NO.2
NO.2
NO.2
BEIJING SPEC,REFER TO FIG 22-11,NO.2
12262HOSE, VENTILATION, NO.2
(L)
(J)
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
BEIJING SPEC,REFER TO FIG 22-11,NO.2
NO.2
NO.1
NO.2
5 parts on this diagram · 4 diagrams in section
