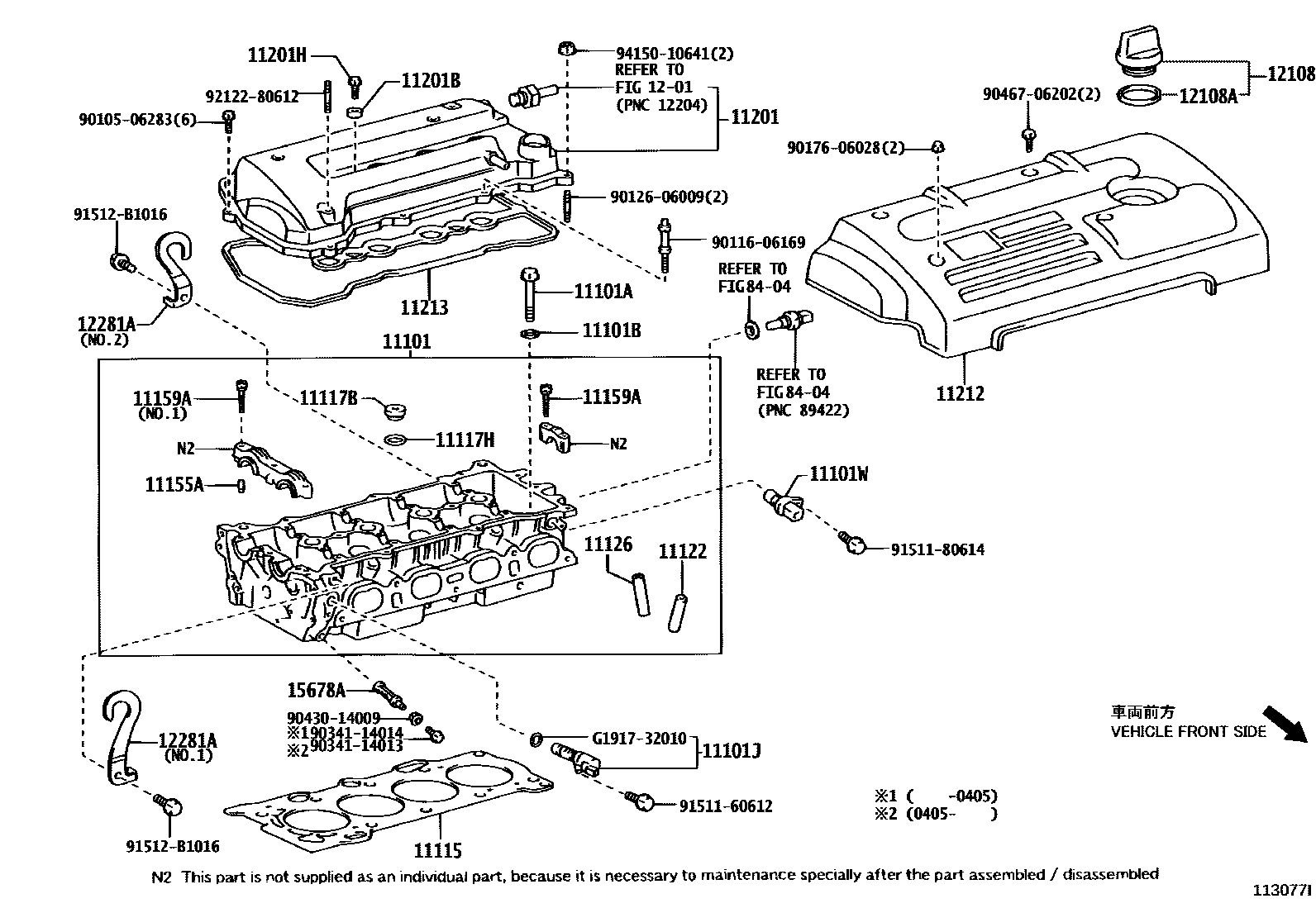

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
BEIJING SPEC,REFER TO FIG 22-11
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
11101WSENSOR, CRANK POSITION, NO.1
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD,(L)
O/S 0.05
O/S 0.05,(J)
O/S 0.05,(L)
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD,(L)
O/S 0.05,(L)
11155APIN, RING W/HEAD
(J)
(L)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
(L)
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
NO.1,(L)
W(PAINTED)
NO.1,(J)
NO.2
W/O(PAINTED)
15678AFILTER, OIL CONTROL VALVE
8404
9010506283
9011606169
9012606009
9017606028
9034114013
9034114014
9043014009
9046706202
9151160612
9151180614
91512B1016
9212280612
9415010641
G191732010
37 parts on this diagram · 3 diagrams in section
