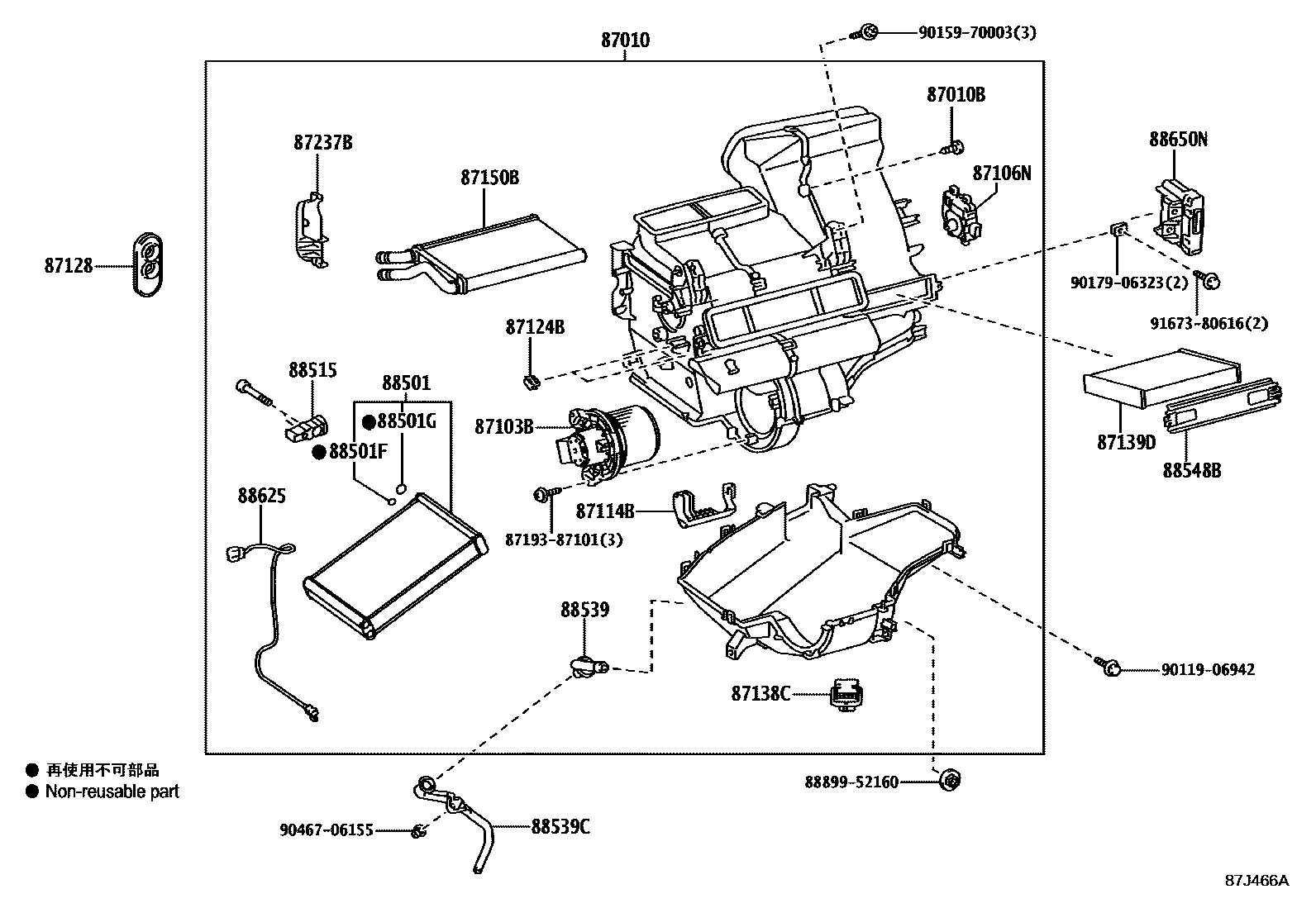

HEATING & AIR CONDITIONING - COOLER UNIT
87010UNIT ASSY, AIR CONDITIONER
87010BSCREW(FOR AIR CONDITIONER UNIT)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87114BCOVER, HEATER
87124BCLAMP, HEATER
87128GROMMET, HEATER
87138CRESISTOR, BLOWER
87139DELEMENT, AIR REFINER
DUST FILTER
*DPF
87150BRADIATOR ASSY, HEATER
87237BCOVER, HEATER PIPING
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
8719387101
main87193-87101
8889952160COVER, EVAPORATOR
main88899-52160
9011906942
main90119-06942
9015970003
main90159-70003
9017906323
main90179-06323
9046706155
main90467-06155
9167380616
main91673-80616
27 parts on this diagram · 2 diagrams in section
