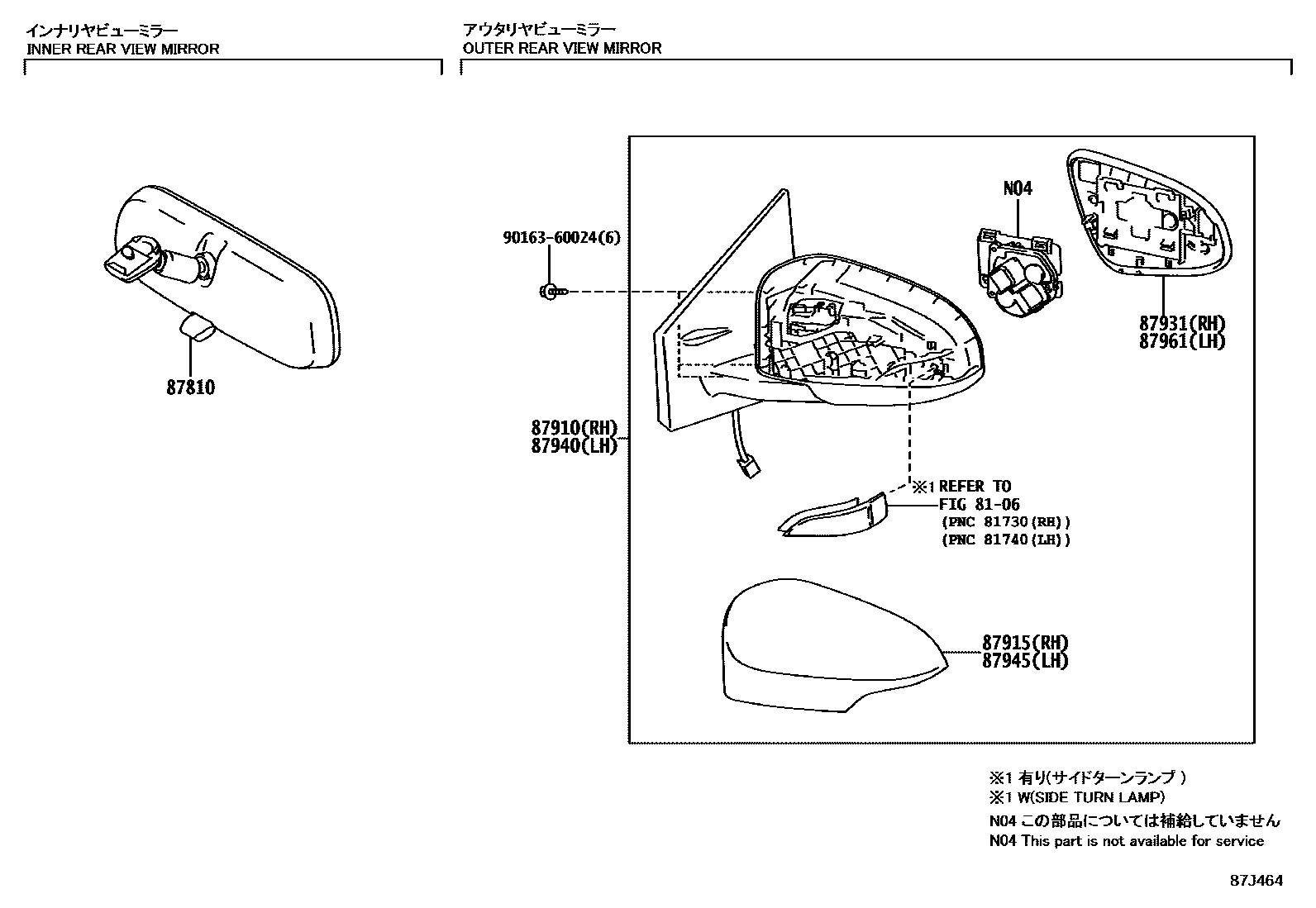

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
NO PAINT REQ.
PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
NO PAINT REQ.
PAINT REQ.
87961MIRROR OUTER, LH
9016360024
main90163-60024
9 parts on this diagram · 1 diagram in section
