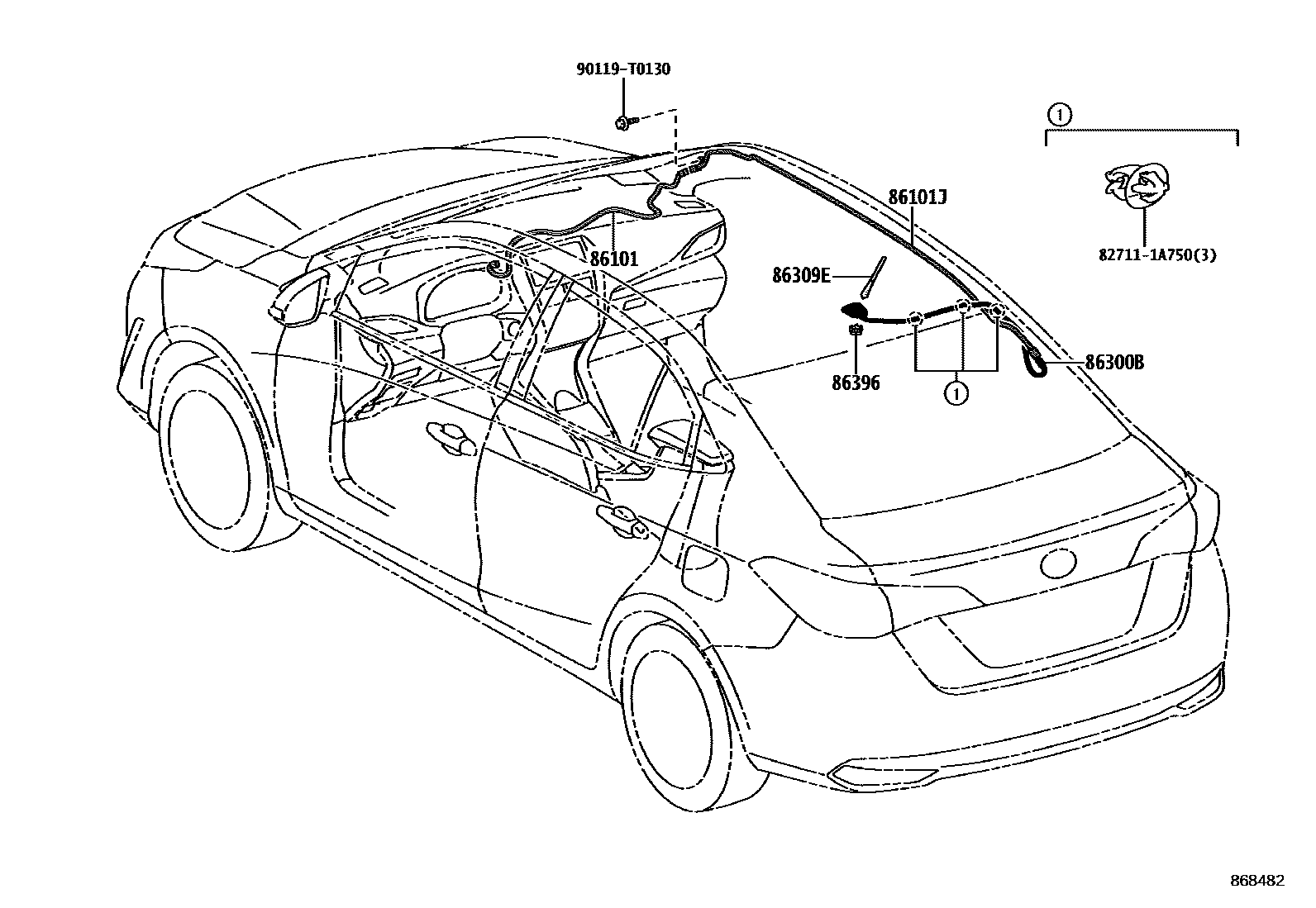

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-0DA40iNSP151..5D202101-202407

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D890iNSP151..D202101-202407

main86101-0DA00iNSP151..5D202101-202306

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D400iNSP151..4D..(R,V)202101-202407

main86300-0D480iNSP151..5D202103-202306

TYPE B:REFER ILLUST.

main86300-0D481iNSP151..5D202101-202103

main86300-0D481iNSP151..5D202103-202306

TYPE A:REFER ILLUST.

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D220iNSP151..D202101-202407

86396NUT, ANTENNA

main86396-47010iNSP151..D202101-202407

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

90119T0130

main90119-T0130

7 parts on this diagram · 2 diagrams in section
