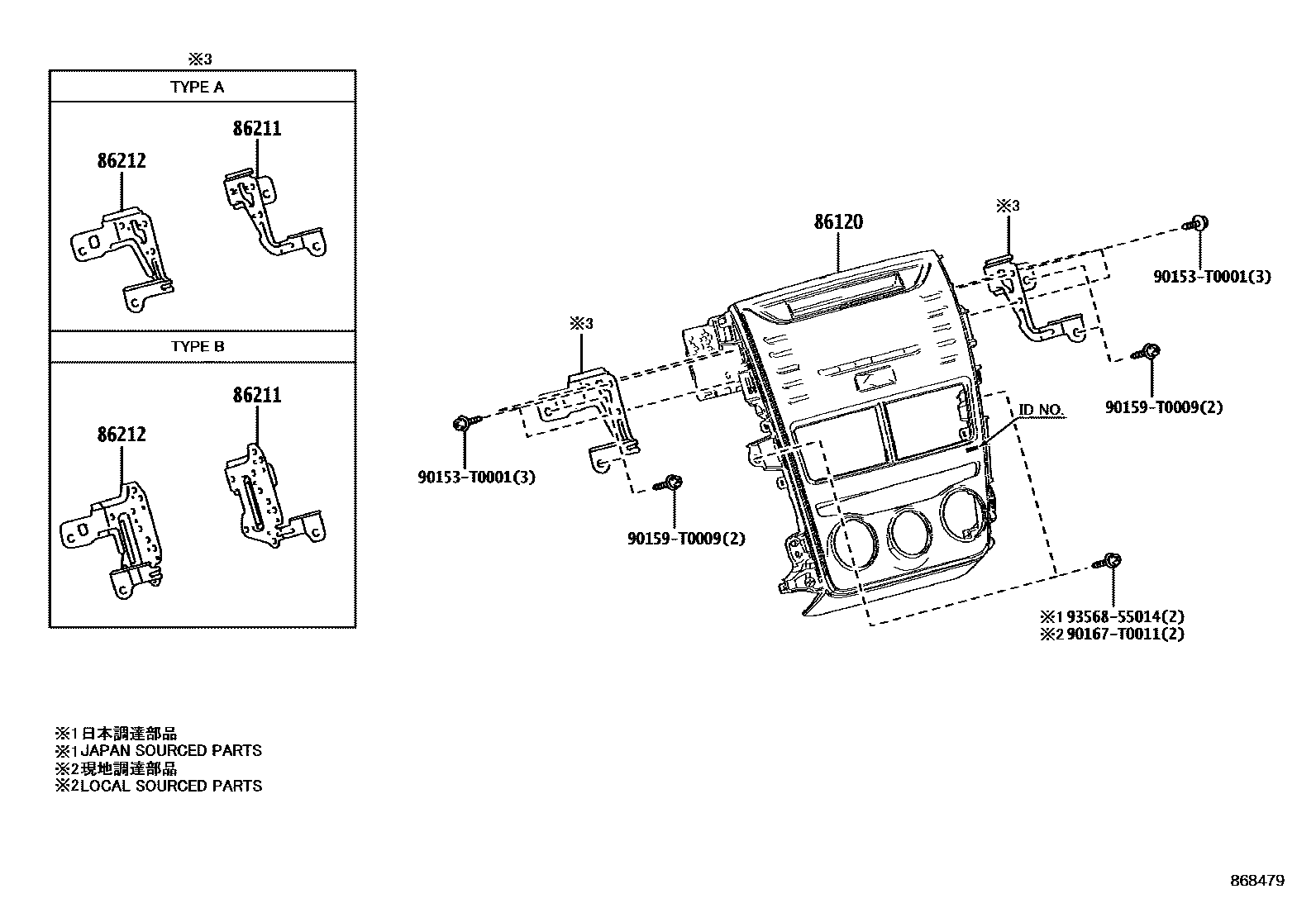

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1CONDENSER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0DD21iNSP151..D202101-202407

PANASONIC,ID=510272

main86120-0DE21iNSP151..5D..R202101-202306

PANASONIC,ID=510313

86211BRACKET, RADIO, NO.1

main86211-0D310iNSP151..5D..R202101-202407

TYPE A:REFER ILLUST.

main86211-0D370iNSP151..4D..(R,V)202101-202306

TYPE B:REFER ILLUST.

86212BRACKET, RADIO, NO.2

main86212-0D320iNSP151..5D..R202101-202407

TYPE A:REFER ILLUST.

main86212-0D350iNSP151..5D..(G,V)202101-202306

TYPE B:REFER ILLUST.

90153T0001

main90153-T0001

90159T0009

main90159-T0009

90167T0011

main90167-T0011

9356855014

main93568-55014

7 parts on this diagram · 3 diagrams in section
