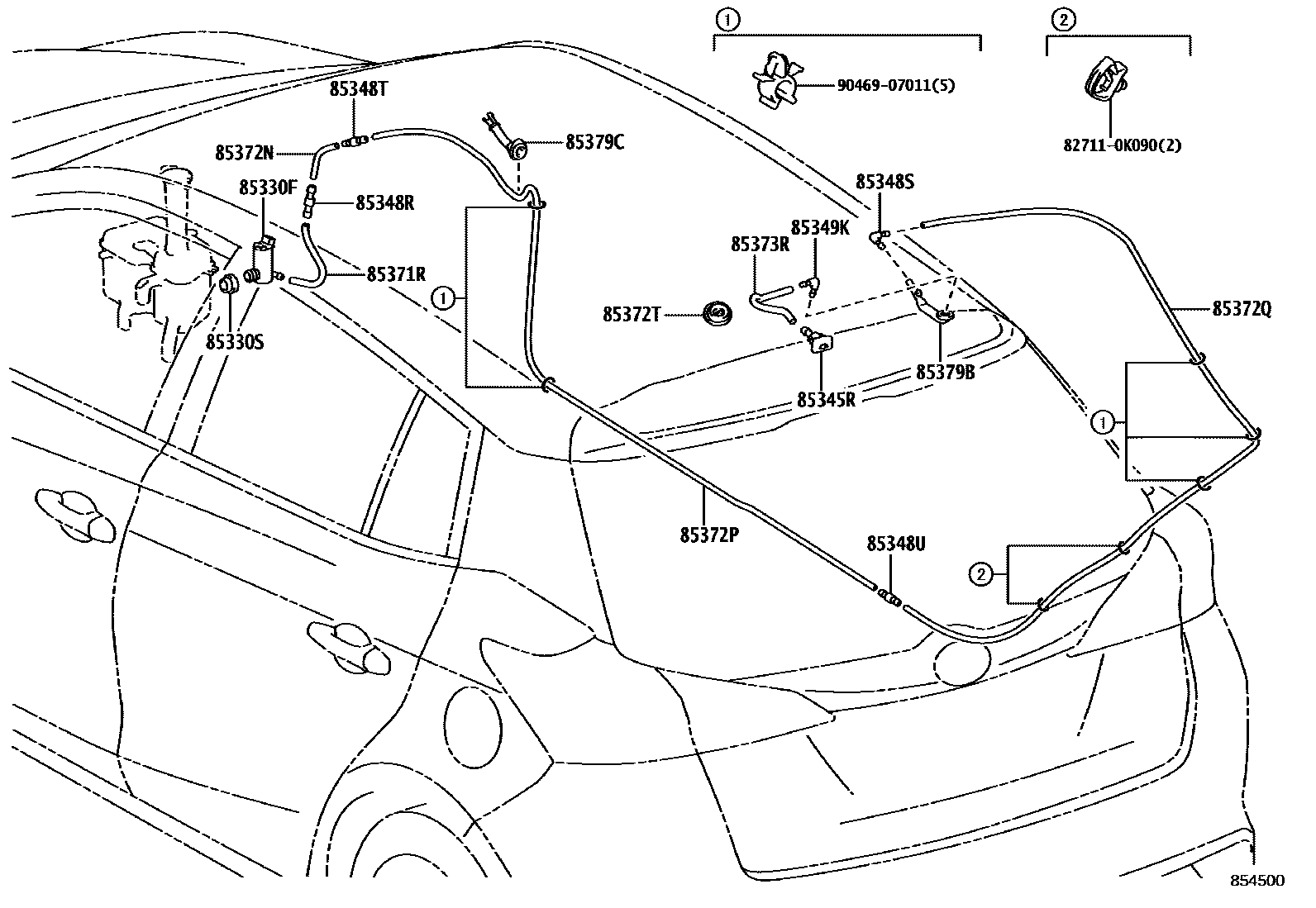

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=190
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=50)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2450
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2200
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
827110K090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K090
9046907011
main90469-07011
18 parts on this diagram · 1 diagram in section
