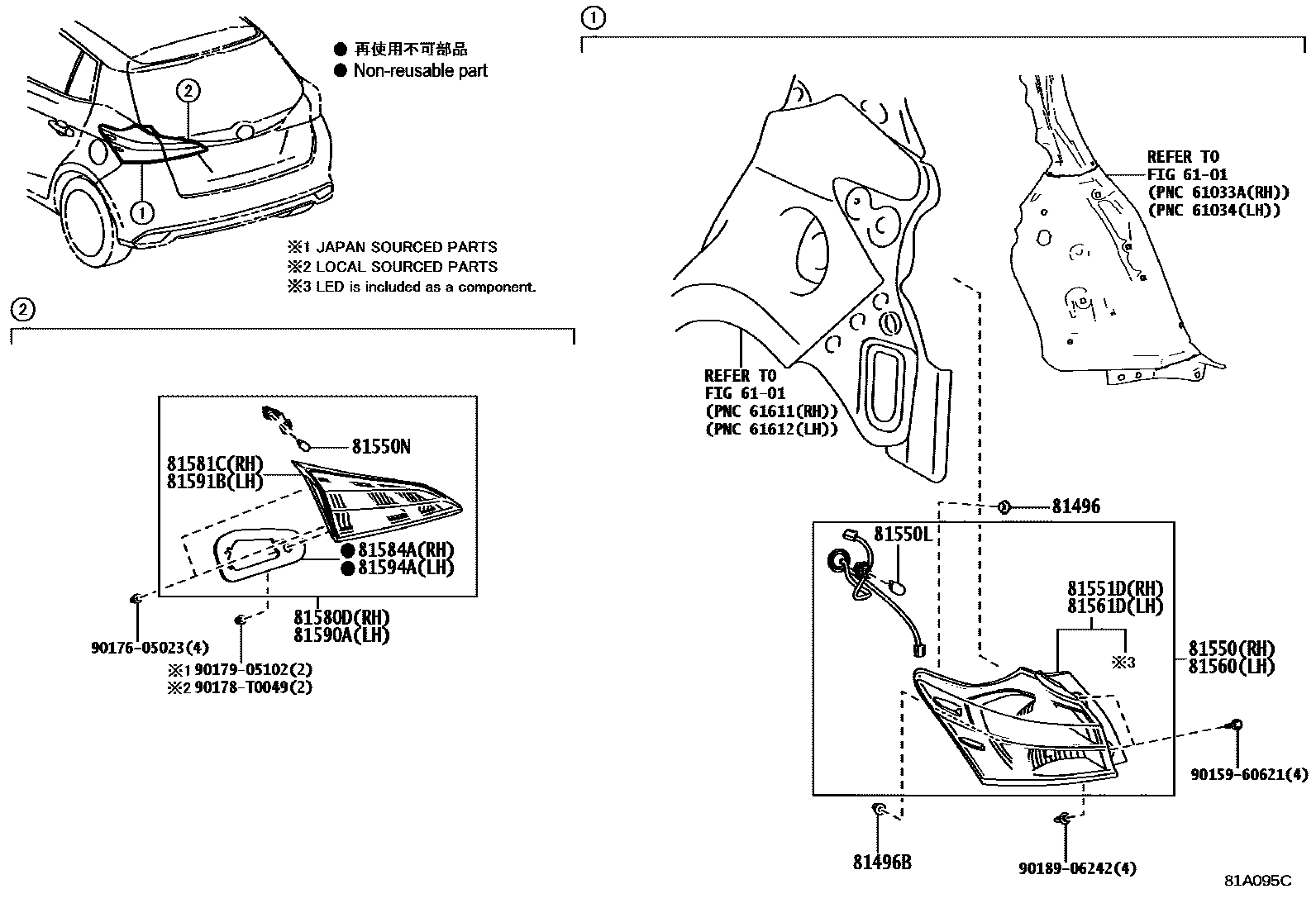

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
G-HI PACKAGE,WITH(*CUSA)
81550LAMP ASSY, REAR COMBINATION, RH
G-HI PACKAGE,WITH(*CUSA)
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
G-HI PACKAGE,WITH(*CUSA)
81560LAMP ASSY, REAR COMBINATION, LH
G-HI PACKAGE,WITH(*CUSA)
81561DLENS & BODY, REAR COMBINATION LAMP, LH
G-HI PACKAGE,WITH(*CUSA)
81580DLAMP ASSY, REAR, RH
G-HI PACKAGE,WITH(*CUSA)
81581CLENS AND BODY, REAR LAMP, RH
G-HI PACKAGE,WITH(*CUSA)
81584AGASKET, REAR LAMP RH
G-HI PACKAGE,WITH(*CUSA)
81590ALAMP ASSY, REAR, LH
G-HI PACKAGE,WITH(*CUSA)
81591BLENS AND BODY, REAR LAMP, LH
G-HI PACKAGE,WITH(*CUSA)
81594AGASKET, REAR LAMP LH
G-HI PACKAGE,WITH(*CUSA)
9015960621
main90159-60621
9017605023
main90176-05023
90178T0049
main90178-T0049
9017905102
main90179-05102
9018906242
main90189-06242
20 parts on this diagram · 4 diagrams in section
