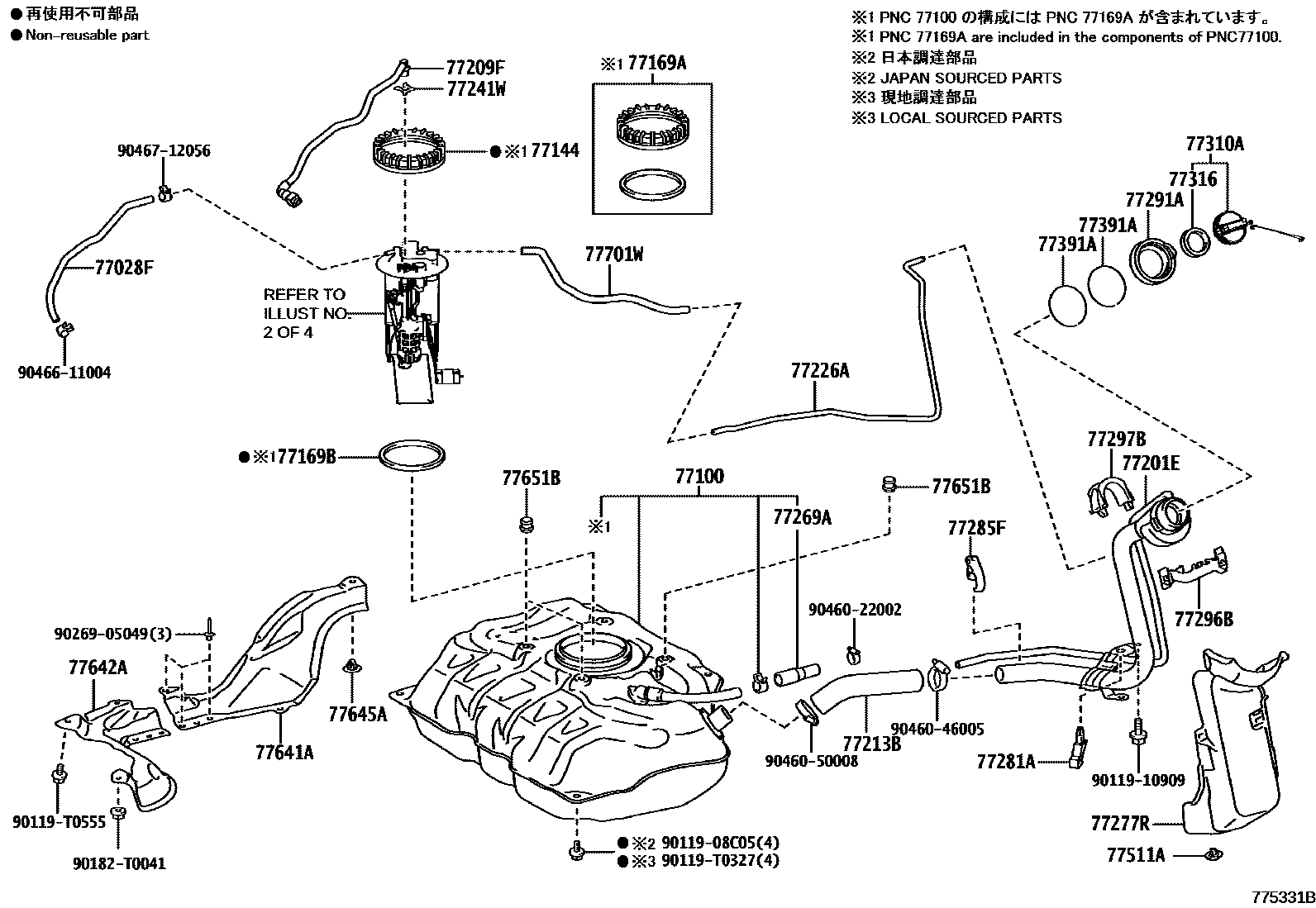

FUEL TANK & TUBE
77028FTUBE SUB-ASSY, FUEL EMISSION, NO.2
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77285FCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77297BSUPPORT, FUEL TUBE PROTECTOR, NO.2
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77645ARETAINER, FUEL TANK PROTECTOR
77651BCUSHION, FUEL TANK
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
9011908C05
main90119-08C05
9011910909
main90119-10909
90119T0327
main90119-T0327
90119T0555
main90119-T0555
90182T0041
main90182-T0041
9026905049
main90269-05049
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046611004
main90466-11004
9046712056
main90467-12056
37 parts on this diagram · 6 diagrams in section
