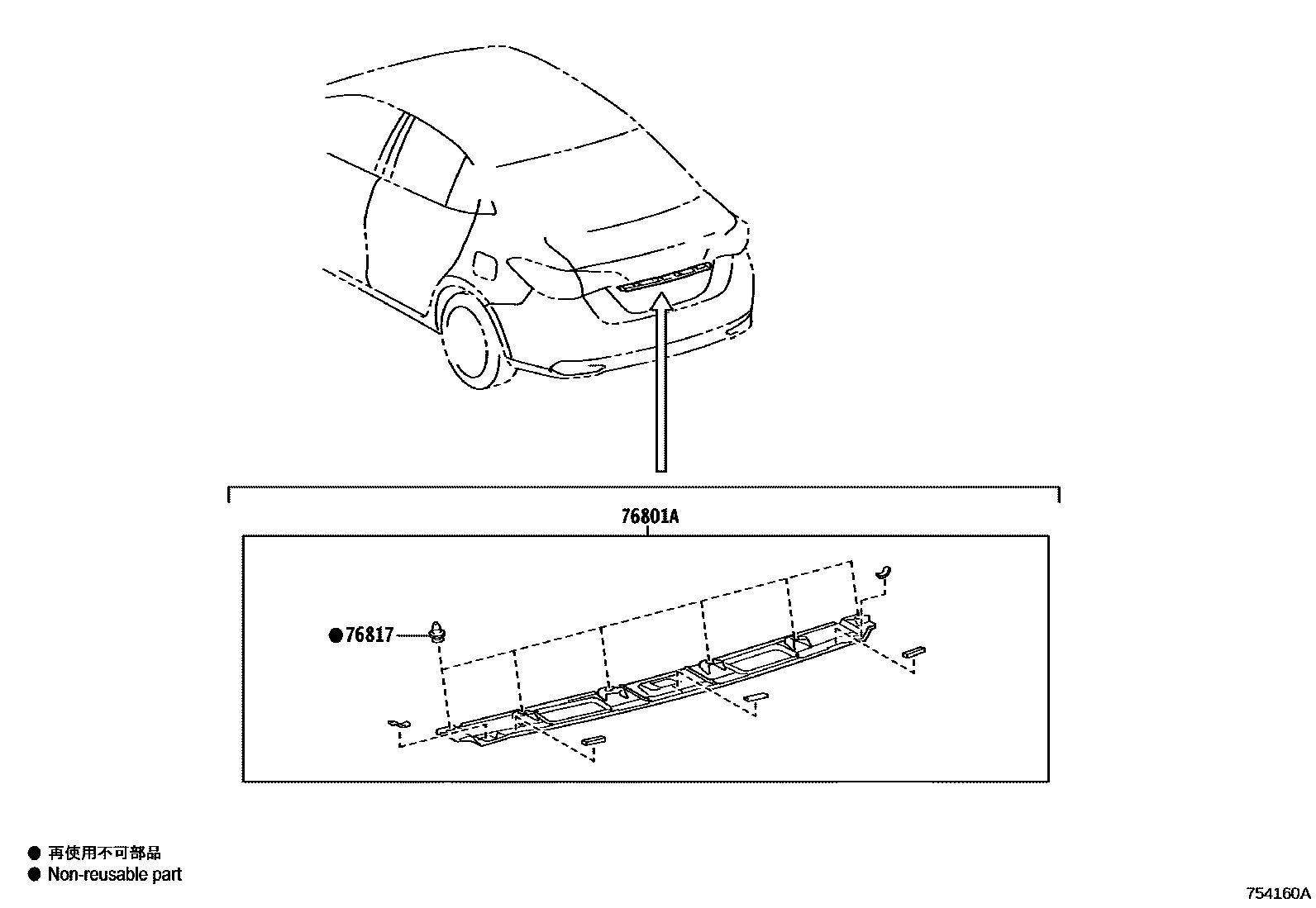

REAR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
NO PAINT REQ.
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
NO PAINT REQ.
NO PAINT REQ.
76817CLIP, BACK DOOR OUTSIDE GARNISH
(J)
(L)
3 parts on this diagram · 2 diagrams in section
