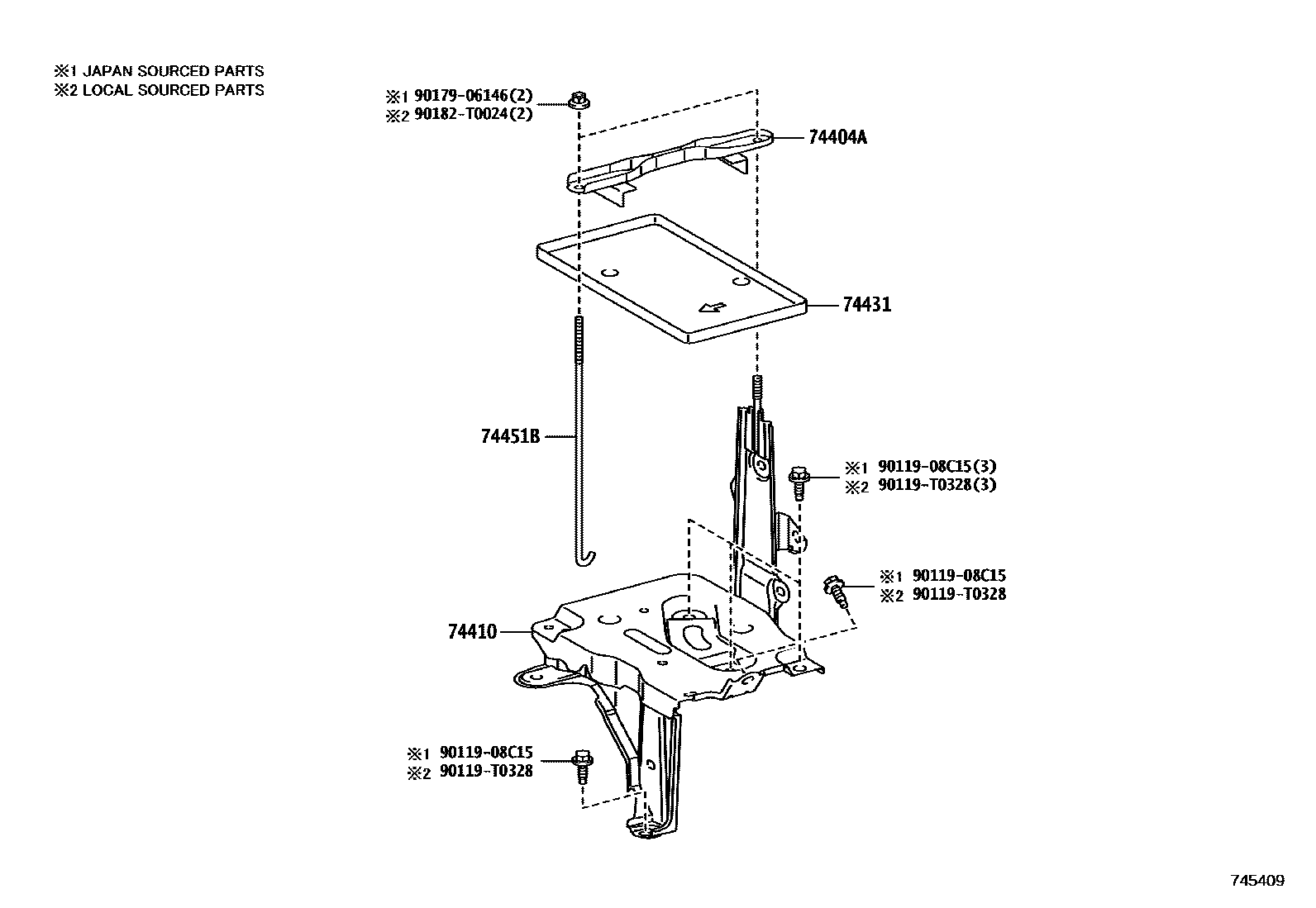

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0D201iNSP151..4D..(R,V)202409

main74404-0D220iNSP151..D202101-202408

sub74404-0D201

74410CARRIER ASSY, BATTERY

main74410-0D180iNSP151..5D202101-202407

74431TRAY, BATTERY

main74431-0D250iNSP151..5D202101-202407

74451BBOLT, BATTERY CLAMP

main74451-0D040iNSP151..5D202101-202408

main74451-0D150iNSP151..4D..(R,V)202409

9011908C15

main90119-08C15

90119T0328

main90119-T0328

9017906146

main90179-06146

90182T0024

main90182-T0024

8 parts on this diagram · 1 diagram in section
