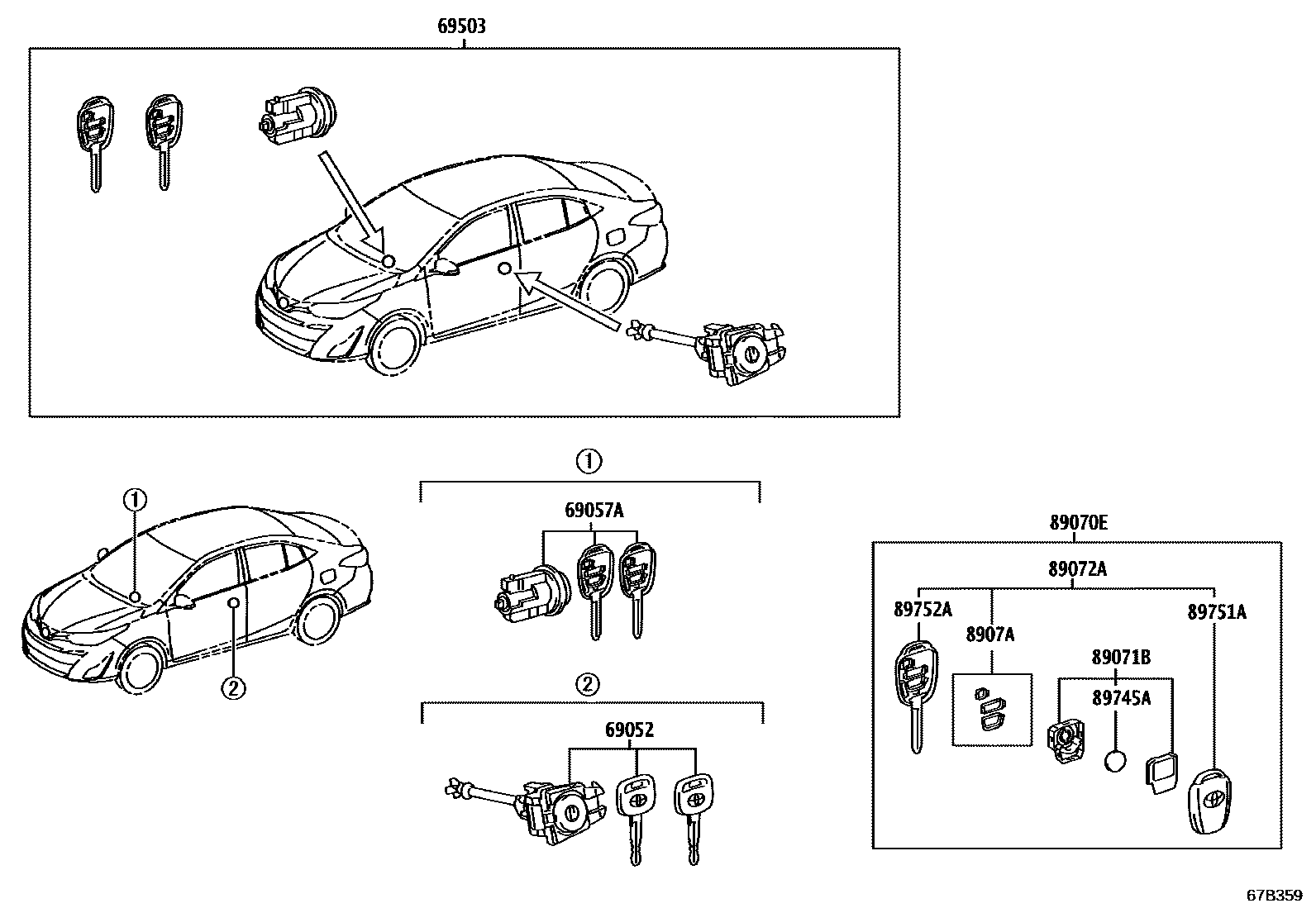

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY) 0004 1W(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0D380iNSP151..5D..(G,R)202101-202407

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0DA00iNSP151..D202101-202407

main69057-0DA90iNSP151..5D..(G,R)202101-202306

69503CYLINDER SET, LOCK

main69005-0DJ50iNSP151..4D..R202101-202407

main69005-0DJ60iNSP151..5D..(G,R)202101-202306

main69005-0DJ70iNSP151..G202101-202306

G-HI PACKAGE,WITH(*CUSA)

main69005-0DJ70iNSP151..4D..V202101

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0D610iNSP151..5D..(G,R)202101-202306

main89070-0DB10iNSP151..D202101-202407

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-0D090iNSP151..5D..(G,R)202101-202306

main89071-0D180iNSP151..D202101-202407

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-0D470iNSP151..5D..(G,R)202101-202306

main89072-0D670iNSP151..D202101-202407

8907ASWITCH SET, TRANSMITTER

main8907A-22010iNSP151..D202101-202407

main8907A-52010iNSP151..5D..(G,R)202101-202306

89745ABATTERY, TRANSMITTER

main89745-0D040iNSP151..4D..R202101-202407

CR1620

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iNSP151..5D..(G,R)202101-202407

89752ACASE, TRANSMITTER HOUSING

main89752-52230iNSP151..D202101-202407

main89752-68080iNSP151..5D..(G,R)202101-202306

10 parts on this diagram · 4 diagrams in section
