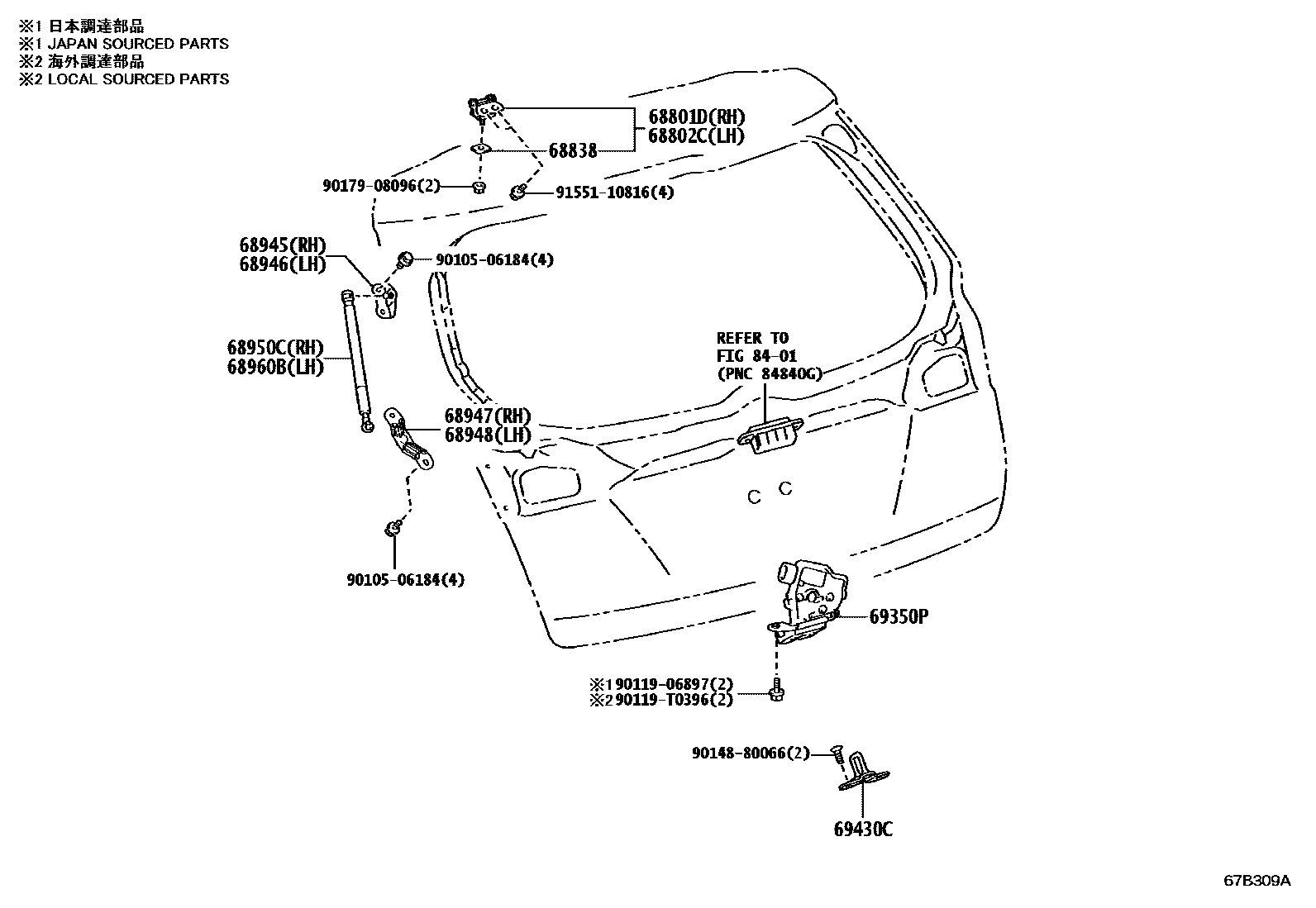

BACK DOOR LOCK & HANDLE
68801DHINGE SUB-ASSY, BACK DOOR, RH
68802CHINGE SUB-ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=0.5
T=1.0
T=1.5
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
8401
9010506184
main90105-06184
9011906897
main90119-06897
90119T0396
main90119-T0396
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816
18 parts on this diagram · 1 diagram in section
