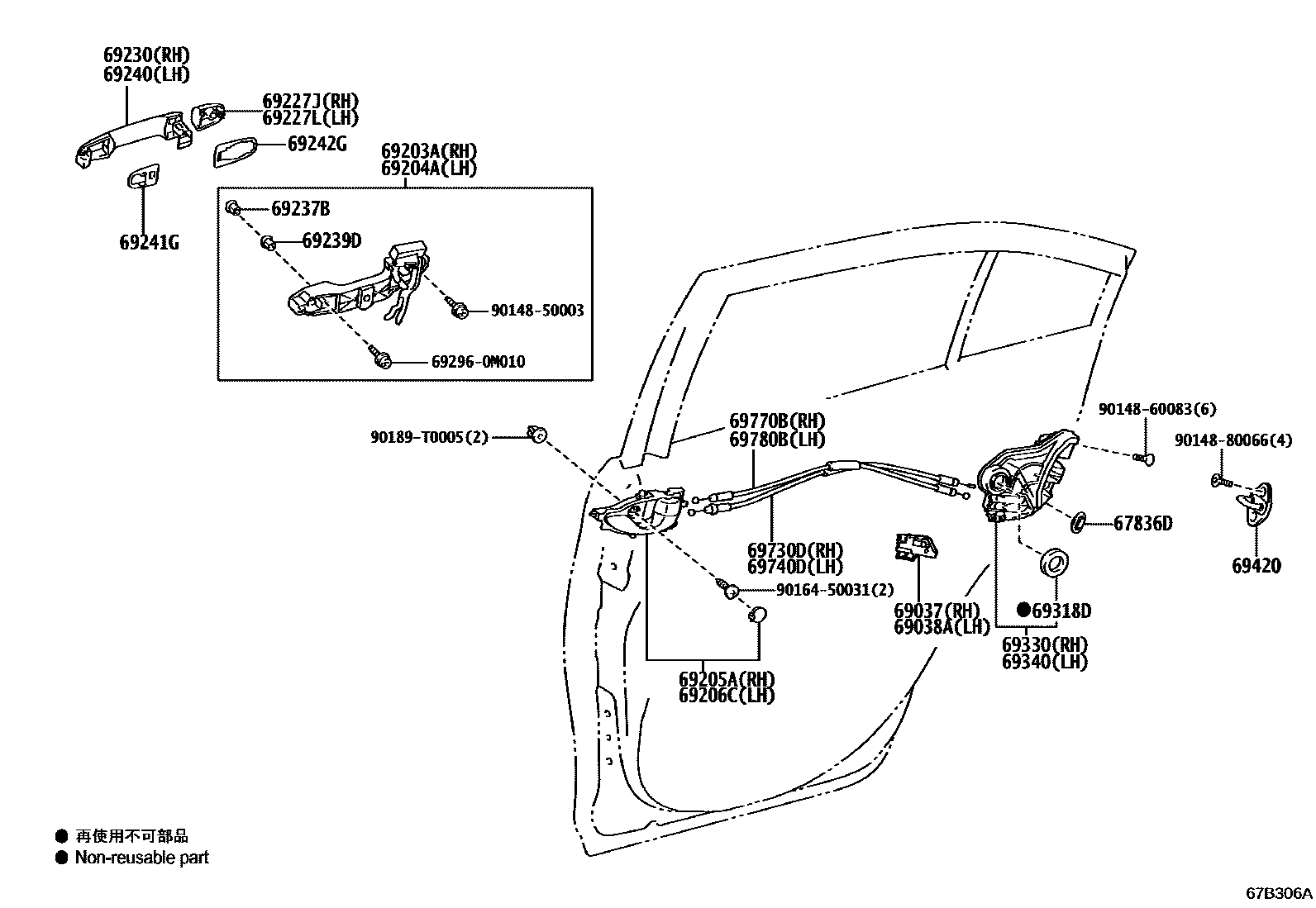

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
G-HI PACKAGE,WITH(*CUSA),BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
G-HI PACKAGE,WITH(*CUSA),BLACK,TRIM2#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
G-HI PACKAGE,WITH(*CUSA)
69340LOCK ASSY, REAR DOOR, LH
G-HI PACKAGE,WITH(*CUSA)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
692960M010SCREW, DOOR INSIDE HANDLE
main69296-0M010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
90189T0005
main90189-T0005
29 parts on this diagram · 1 diagram in section
