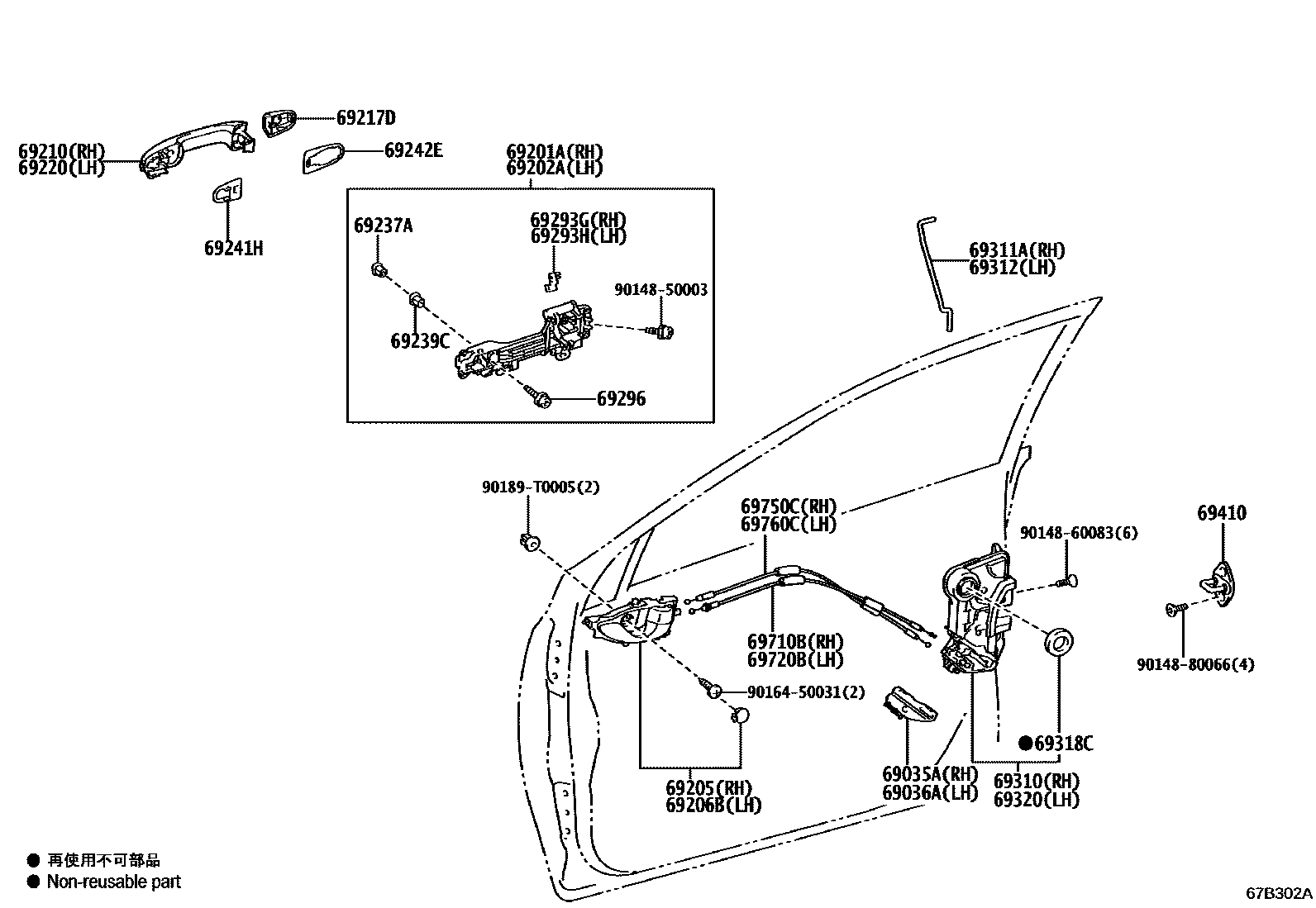

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
G-HI PACKAGE,WITH(*CUSA),BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
G-HI PACKAGE,WITH(*CUSA),BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
G-HI PACKAGE,WITH(*CUSA),SUPER WHITE 2,040
SILVER ME.,1F7
G-HI PACKAGE,WITH(*CUSA),SILVER ME.,1F7
GRAY ME.,1G3
G-HI PACKAGE,WITH(*CUSA),GRAY ME.,1G3
G-HI PACKAGE,WITH(*CUSA),BLACK MC.,209
BLACK MC.,209
RED M.M.,3R3
G-HI PACKAGE,WITH(*CUSA),RED M.M.,3R3
AIR YELLOW,5B6
G-HI PACKAGE,WITH(*CUSA),AIR YELLOW,5B6
G-HI PACKAGE,WITH(*CUSA),DK.BLUE M.M.,8W7
DK.BLUE M.M.,8W7
CYAN METALLIC,8W9
G-HI PACKAGE,WITH(*CUSA),CYAN METALLIC,8W9
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
G-HI PACKAGE,WITH(*CUSA)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
90189T0005
main90189-T0005
31 parts on this diagram · 1 diagram in section
