PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM2#,(L)
58707FPLUG SET, HOLE
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
BLACK,TRIM2#,(L)
64271EPANEL, ROOM PARTITION
64274PAD, ROOM PARTITION TRIM, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM2#,(L)
64332COVER, PACKAGE TRAY TRIM
BLACK,TRIM2#
64334PAD, PACKAGE TRAY TRIM SILENCER
64371ACLIP(FOR PACKAGE TRAY TRIM)
BLACK,TRIM2#,(L)
64374ASUPPORT, PACKAGE TRAY TRIM
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM2#
BLACK,TRIM0#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#
BLACK,TRIM2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM2#,(L)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64721HCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM2#,(L)
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64726ACLIP, LUGGAGE TRIM, REAR
64770COVER ASSY, SPARE WHEEL
64772BPAD, SPARE WHEEL COVER
64779ASTOPPER, SPARE WHEEL COVER
64779ETRAY, SPARE WHEEL COVER
9011908C89
9053025010

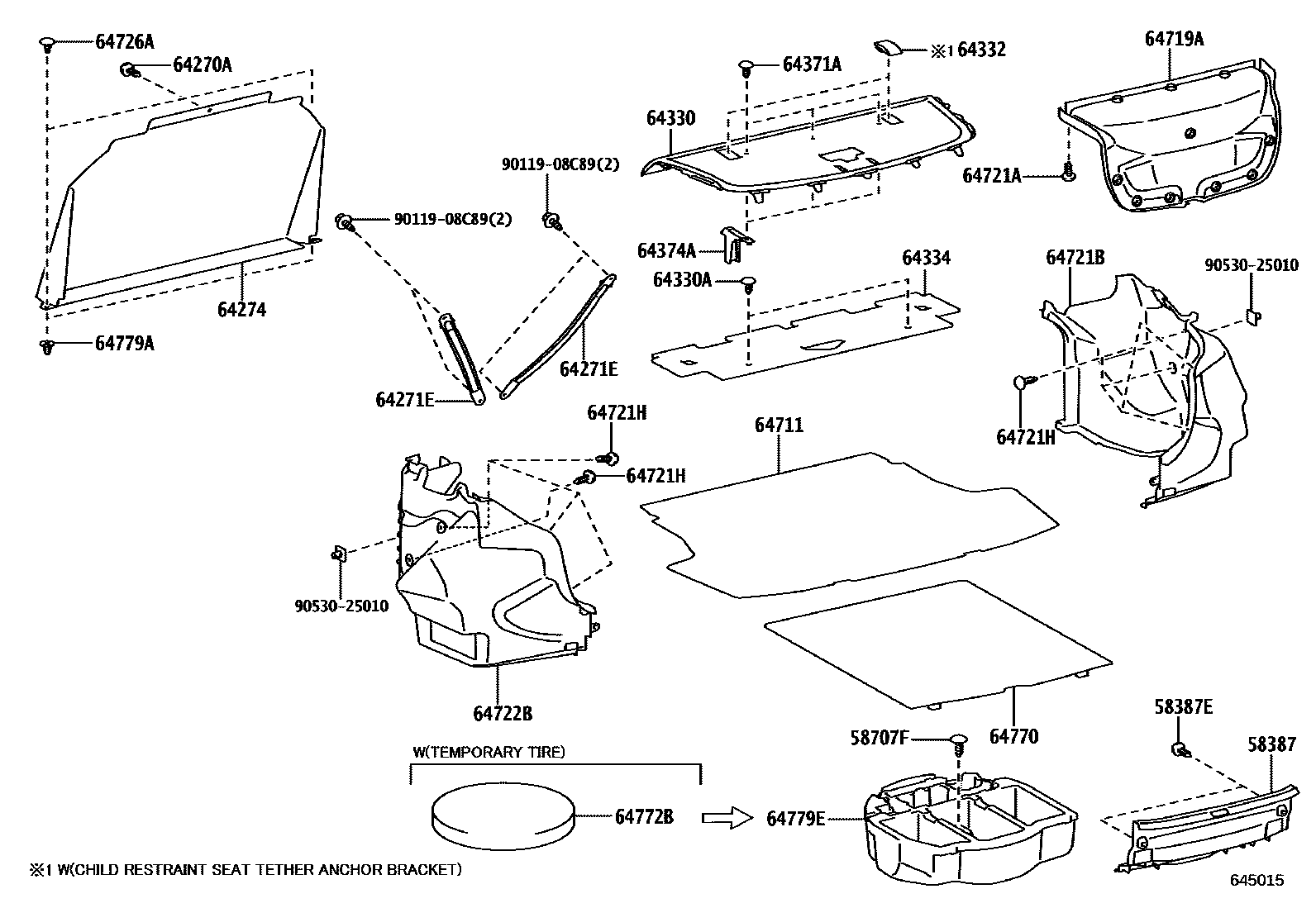

25 parts on this diagram · 1 diagram in section
