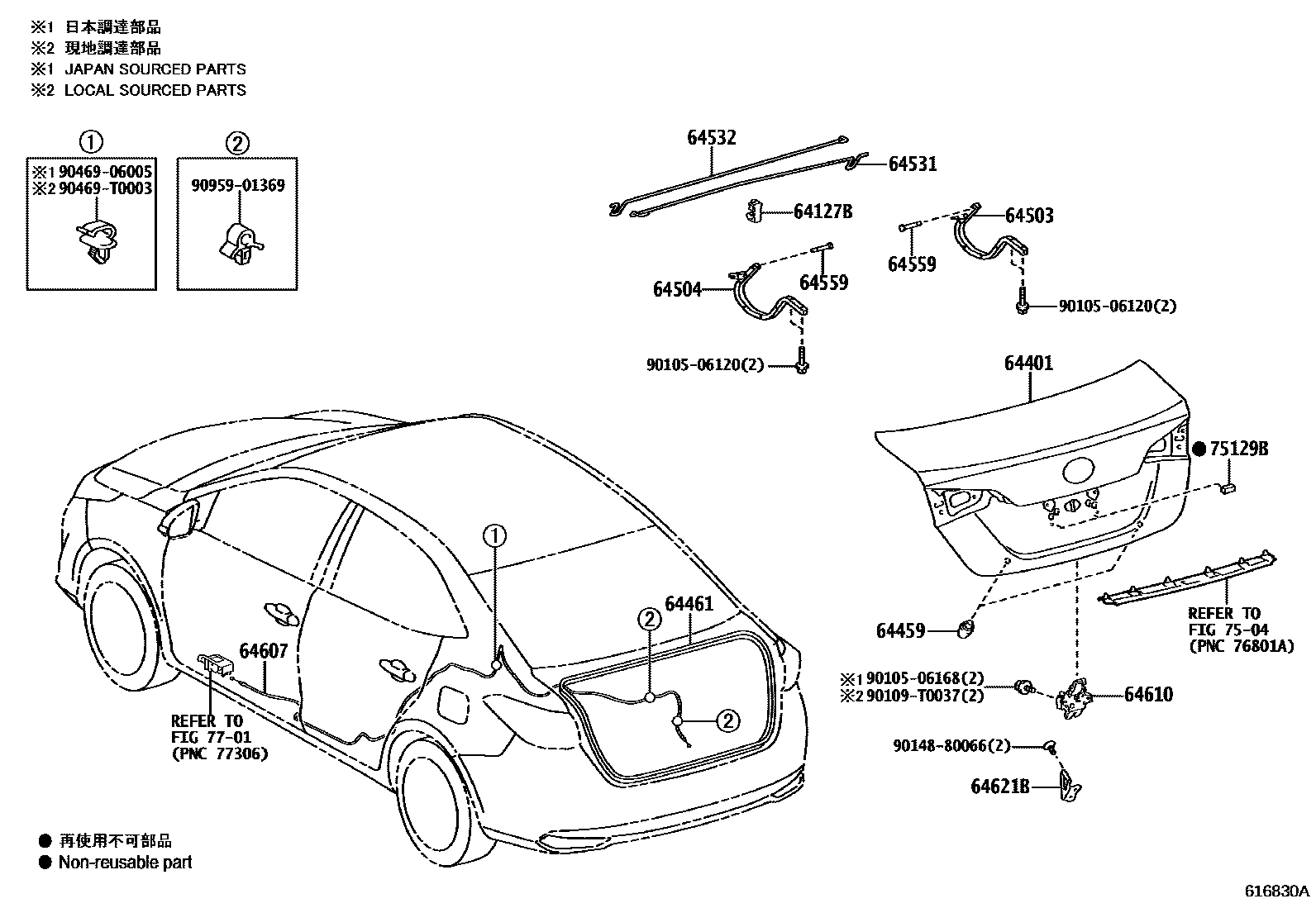

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP151..4D..(R,V)202101-202407

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D420iNSP151..4D..V202101

main64401-0D520iNSP151..D202101-202407

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNSP151..4D..(R,V)¥170202101-202407

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D220iNSP151..D202101-202407

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D100iNSP151..D202101-202407

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D100iNSP151..D202101-202407

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D340iNSP151..D202101-202407

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D330iNSP151..D202101-202407

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP151..D¥100202101-202407

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D470iNSP151..D202101-202407

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0D040iNSP151..D202101-202407

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151..D202101-202407

7504

75129BCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP151..D202101-202407

7701

9010506120

main90105-06120¥90

9010506168

main90105-06168¥120

90109T0037

main90109-T0037

9014880066

main90148-80066¥60

9046906005

main90469-06005¥80

90469T0003

main90469-T0003

9095901369

main90959-01369¥100

22 parts on this diagram · 1 diagram in section
