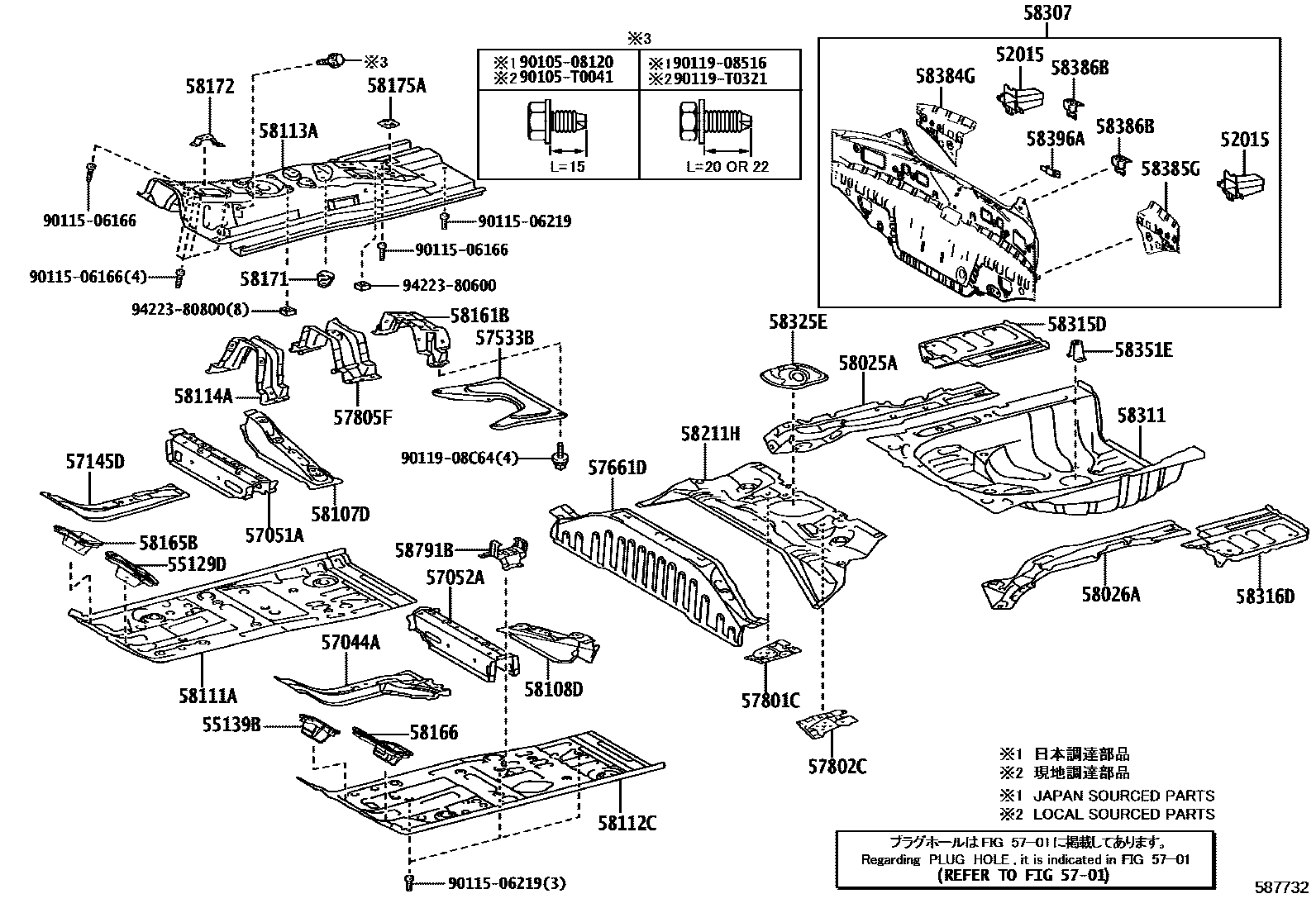

FLOOR PAN & LOWER BACK PANEL
52015ARM SUB-ASSY, REAR BUMPER
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57533BBRACE, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH
57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58396ABRACKET, WIRE HARNESS CLAMP
9010508120
90105T0041
main90105-T0041
9011506166
9011506219
9011908516
9011908C64
90119T0321
main90119-T0321
9422380600
9422380800
48 parts on this diagram · 2 diagrams in section
