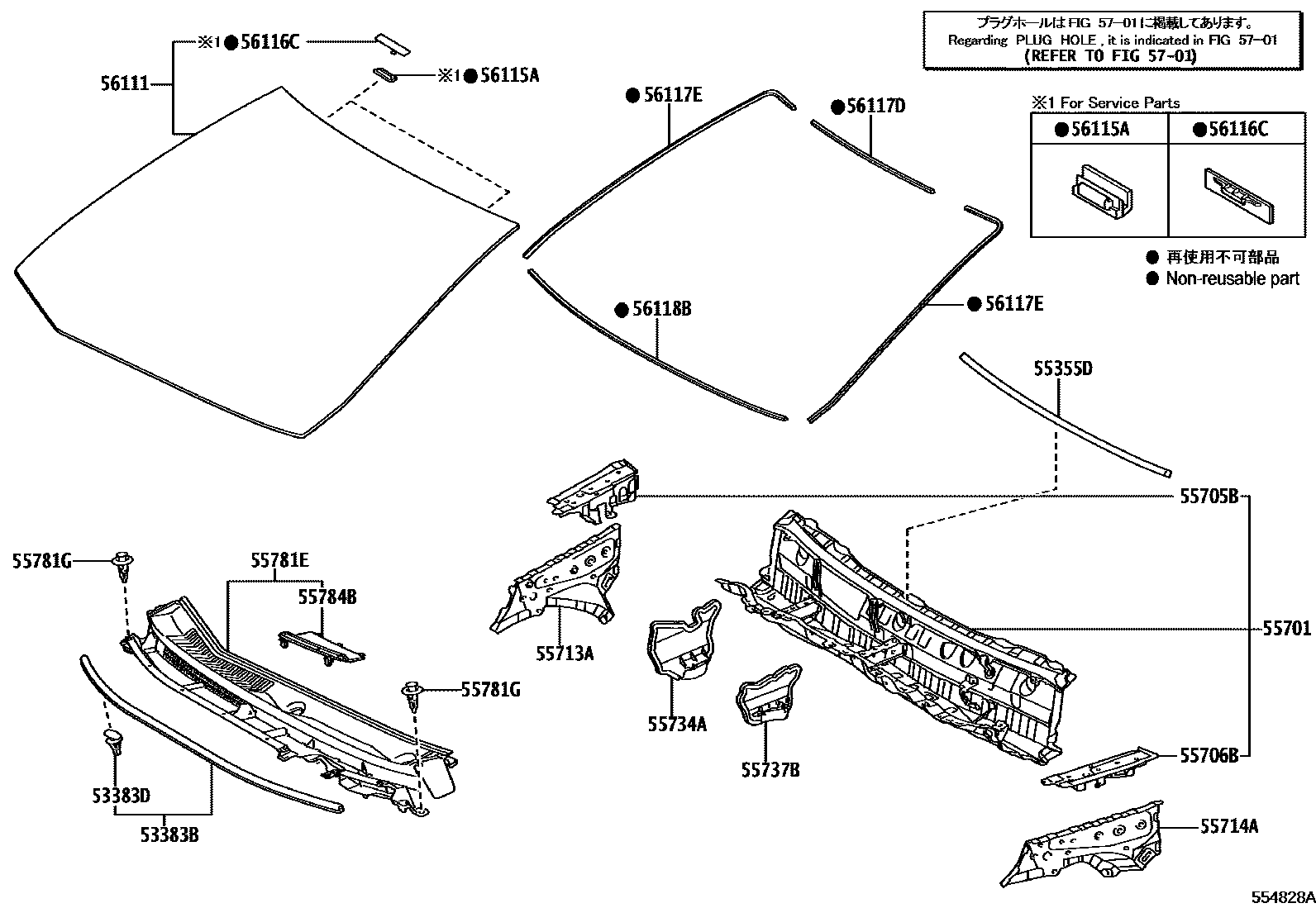

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55355DCUSHION, INSTRUMENT PANEL, NO.1
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56111GLASS, WINDSHIELD
G-HI PACKAGE,WITH(*CUSA)&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=549
*D,L=549,G-HI PACKAGE,WITH(*CUSA)&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
*D,L=549,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
56117EDAM, WINDOW GLASS ADHESIVE
*D,L=915
*D,L=915,G-HI PACKAGE,WITH(*CUSA)&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
*D,L=915,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=1182
L=1182,G-HI PACKAGE,WITH(*CUSA)&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
L=1182,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
5701
20 parts on this diagram · 1 diagram in section
