FLOOR SIDE MEMBER
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53273CREINFORCEMENT, RADIATOR SUPPORT, RH
53274CREINFORCEMENT, RADIATOR SUPPORT, LH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH
57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57616AMEMBER, REAR FLOOR SIDE, REAR LH
58251DBRACE, FLOOR PANEL, FRONT
RH
LH
58289DBRACKET, FLOOR BRAKE HOSE, REAR
RH
LH
9011506166
main90115-06166
9011908C64
main90119-08C64
91554A0820
main91554-A0820

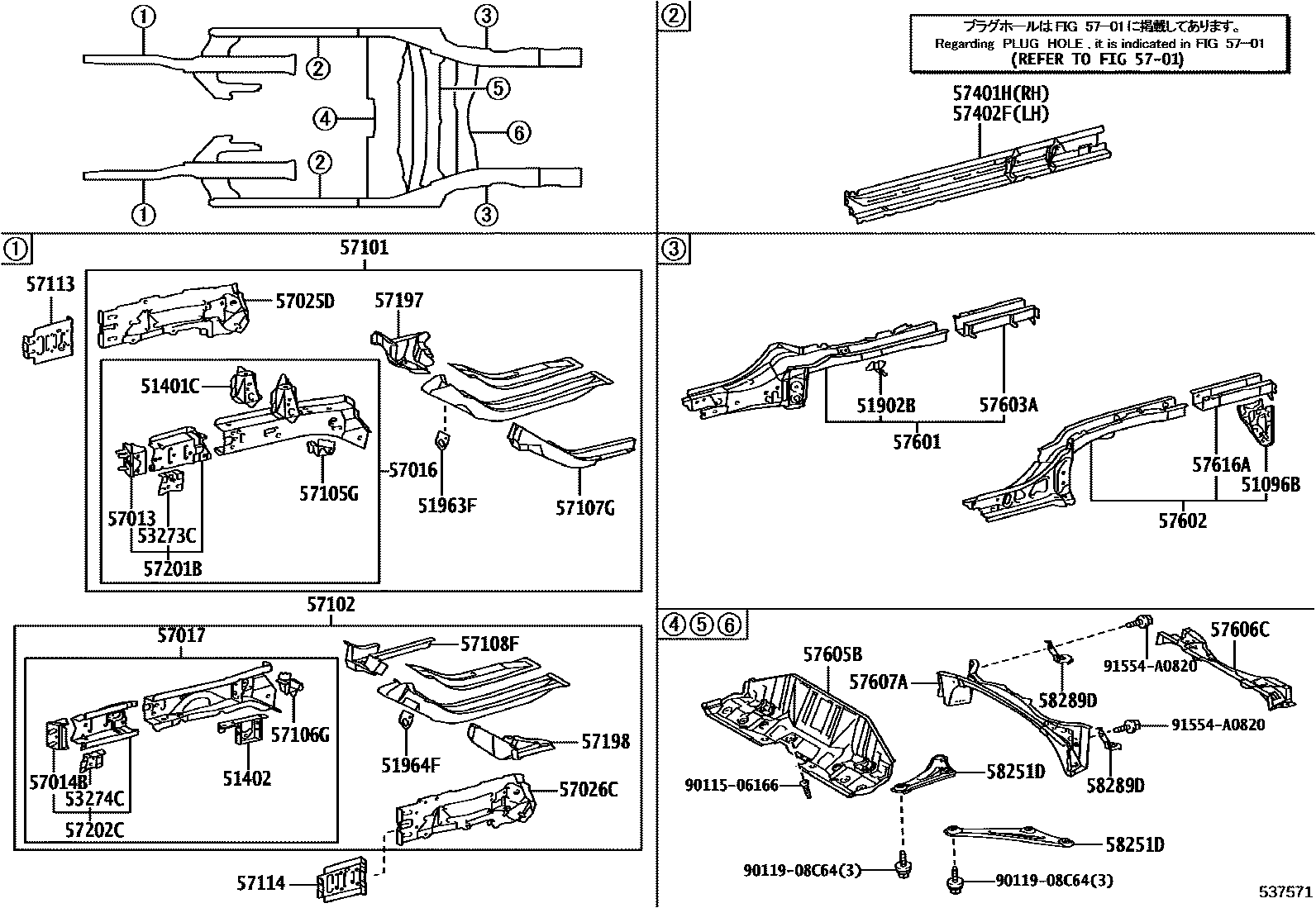

41 parts on this diagram · 2 diagrams in section
