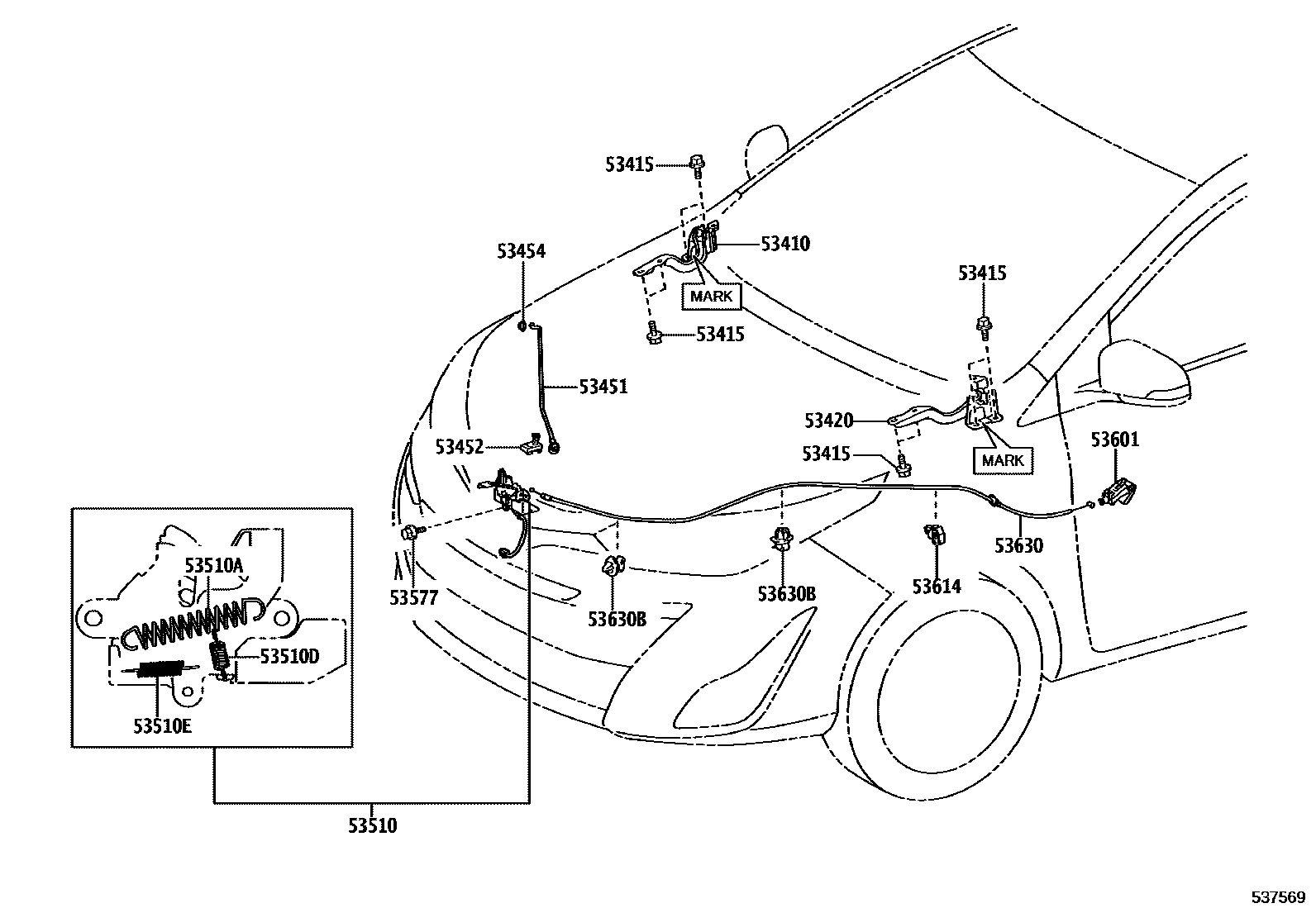

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0D520iNSP151..D202101-202407

MARK 0

main53410-0D540iNSP151..5D202101-202407

MARK -

53415BOLT, HOOD HINGE

main91551-80820iNSP151..5D202101-202407

53420HINGE ASSY, HOOD, LH

main53420-0D520iNSP151..5D202101-202407

MARK 0

main53420-0D530iNSP151..D202101-202407

MARK +

53451ROD, HOOD SUPPORT

main53440-0D250iNSP151..5D202101-202407

53452HOLDER, HOOD STAY

main53452-0D110iNSP151..5D202101-202407

53454CLIP, HOOD SUPPORT ROD

main90480-T0009iNSP151..5D202101-202407

53510LOCK ASSY, HOOD

main53510-0D730iNSP151..4D..(R,V)202101-202407

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNSP151..5D202101-202407

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iNSP151..5D202101-202407

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iNSP151..5D202101-202407

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90119-06939iNSP151..5D202101-202407

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D080-A0iNSP151..G,R202101-202306

IVORY,TRIM0#

main53601-0D080-C0iNSP151..5D202101-202407

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790iNSP151..5D202101-202407

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D360iNSP151..5D202101-202407

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNSP151..5D202101-202407

15 parts on this diagram · 1 diagram in section
