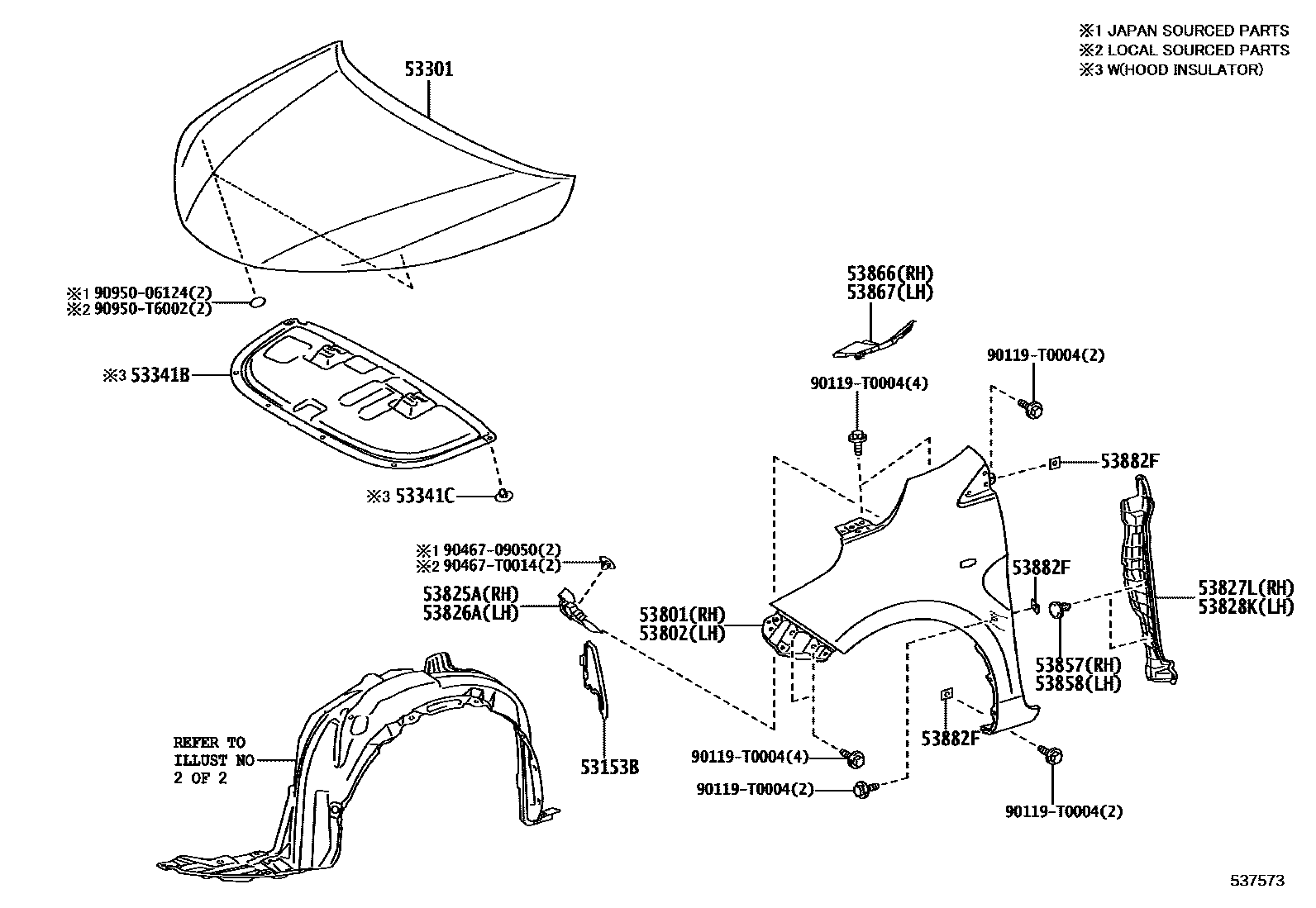

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-0D040iNSP151..4D..(R,V)202101-202407

53301HOOD SUB-ASSY

main53301-0D310iNSP151..5D202101-202407

53341BINSULATOR, HOOD

main53341-0D310iNSP151..D202101-202407

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNSP151..5D..(G,V)202101-202407

(J)

main90467-T0014iNSP151..4D..R202101-202407

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-0D190iNSP151..5D..R202101-202407

main53801-0D200iNSP151..5D..(G,V)202101-202306

53802FENDER SUB-ASSY, FRONT LH

main53802-0D190iNSP151..5D..R202101-202407

main53802-0D200iNSP151..4D..(R,V)202101-202306

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-0D070iNSP151..5D202101-202407

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-0D070iNSP151..5D202101-202407

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D241iNSP151..5D202101-202407

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D241iNSP151..4D..(R,V)202101-202407

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iNSP151..5D202101-202407

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iNSP151..5D202101-202407

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D220iNSP151..5D202101-202407

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D220iNSP151..5D202101-202407

53882FSEAL, FRONT FENDER

main53882-33060iNSP151..5D202101-202407

90119T0004

main90119-T0004

9046709050

main90467-09050

90467T0014

main90467-T0014

9095006124

main90950-06124

90950T6002

main90950-T6002

20 parts on this diagram · 2 diagrams in section
