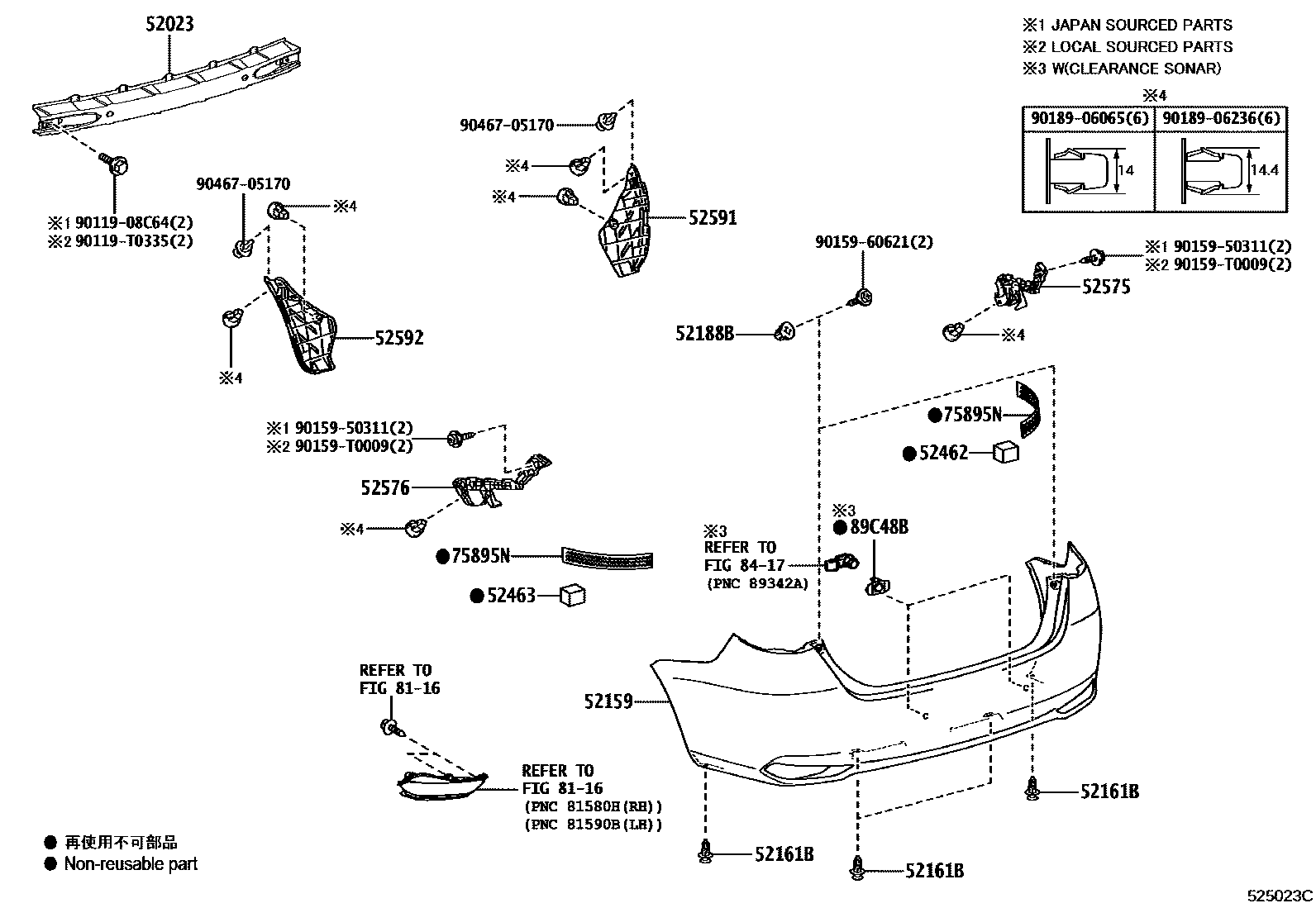

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D110iNSP151..5D202101-202407

52159COVER, REAR BUMPER

main52159-0U962iNSP151..5D..R202101-202306

PAINT REQ.

main52159-0U966iNSP151..D202101-202407

PAINT REQ.

main52159-0U968iNSP151..4D..(R,V)202101

PAINT REQ.

main52159-0U970iNSP151..5D..(G,V)202101-202306

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K060iNSP151..4D..(R,V)202101-202407

(L)

main52161-0K060iNSP151..5D202101-202306

main52161-16010iNSP151..D¥120202101-202407

(J)

sub52161-0K040¥120

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNSP151..5D¥80202101-202407

52462PAD, REAR BUMPER, RH

main52462-0D080iNSP151..D202101-202407

NO PAINT REQ.

52463PAD, REAR BUMPER, LH

main52462-0D080iNSP151..D202101-202407

NO PAINT REQ.

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D350iNSP151..D202101-202407

main52575-0D420iNSP151..5D202101-202306

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D340iNSP151..D202101-202407

main52576-0D410iNSP151..5D202101-202306

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D410iNSP151..4D..(R,V)202101-202407

main52591-0D480iNSP151..5D202101-202306

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D410iNSP151..D202101-202407

main52592-0D480iNSP151..5D202101-202306

75895NTAPE, MOULDING, NO.1

main75895-0D350iNSP151..5D202101-202407

8116

8417

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0D030iNSP151..5D..(G,V)202101-202306

9011908C64

main90119-08C64¥90

90119T0335

main90119-T0335

9015950311

main90159-50311¥70

9015960621

main90159-60621¥60

90159T0009

main90159-T0009

9018906065

main90189-06065¥80

9018906236

main90189-06236¥100

9046705170

main90467-05170¥80

22 parts on this diagram · 2 diagrams in section
