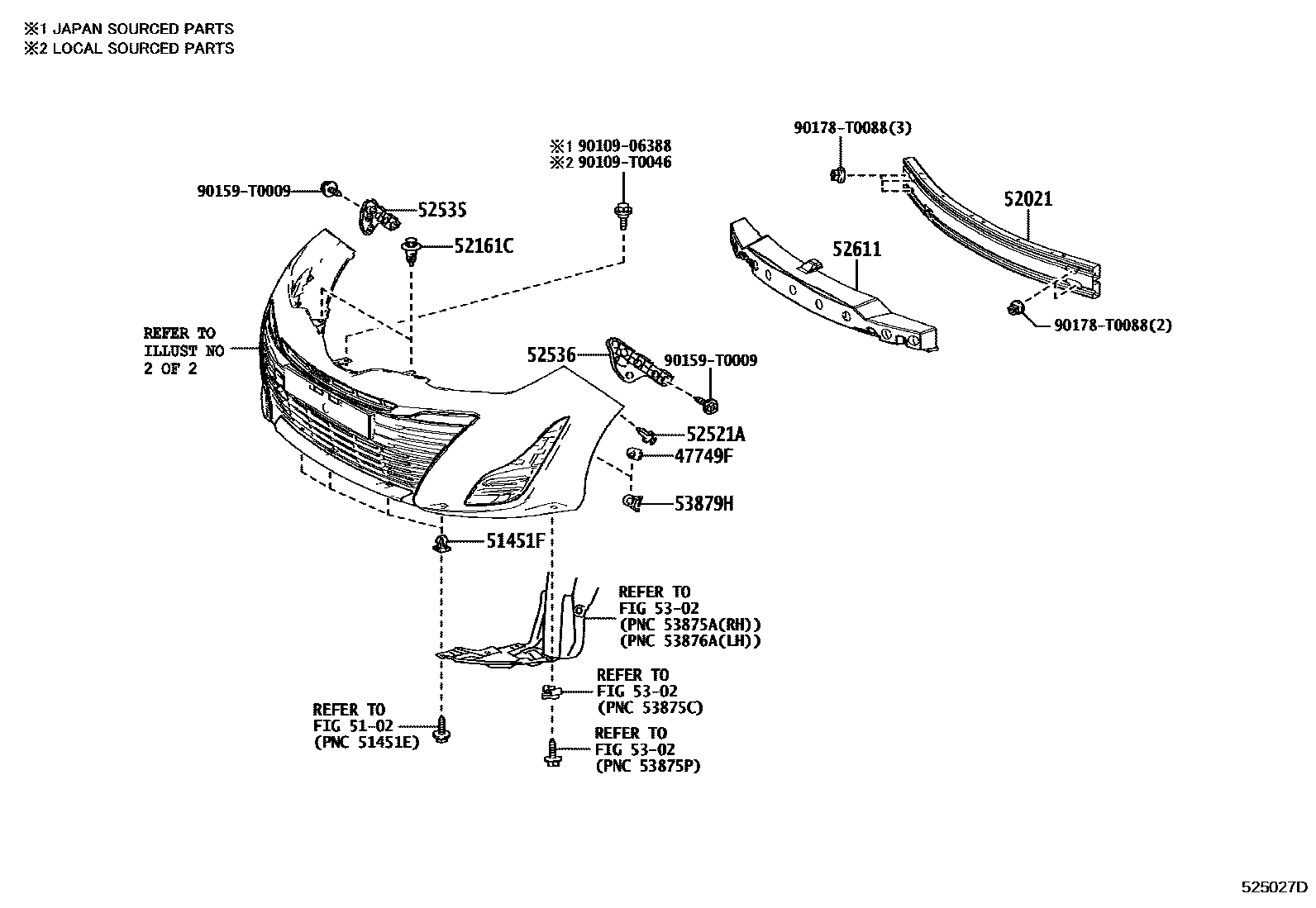

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-33030iNSP151..5D202101-202407

5102

51451FGROMMET, NO.1

main90189-06237iNSP151202101-202306

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D170iNSP151..5D202101-202407

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP151..D202101-202407

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP151..5D202101-202407

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D260iNSP151..5D202101-202407

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D260iNSP151..5D202101-202407

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D190iNSP151..D202306-202407

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030iNSP151..5D202101-202407

9010906388

main90109-06388

90109T0046

main90109-T0046

90159T0009

main90159-T0009

90178T0088

main90178-T0088

15 parts on this diagram · 4 diagrams in section
