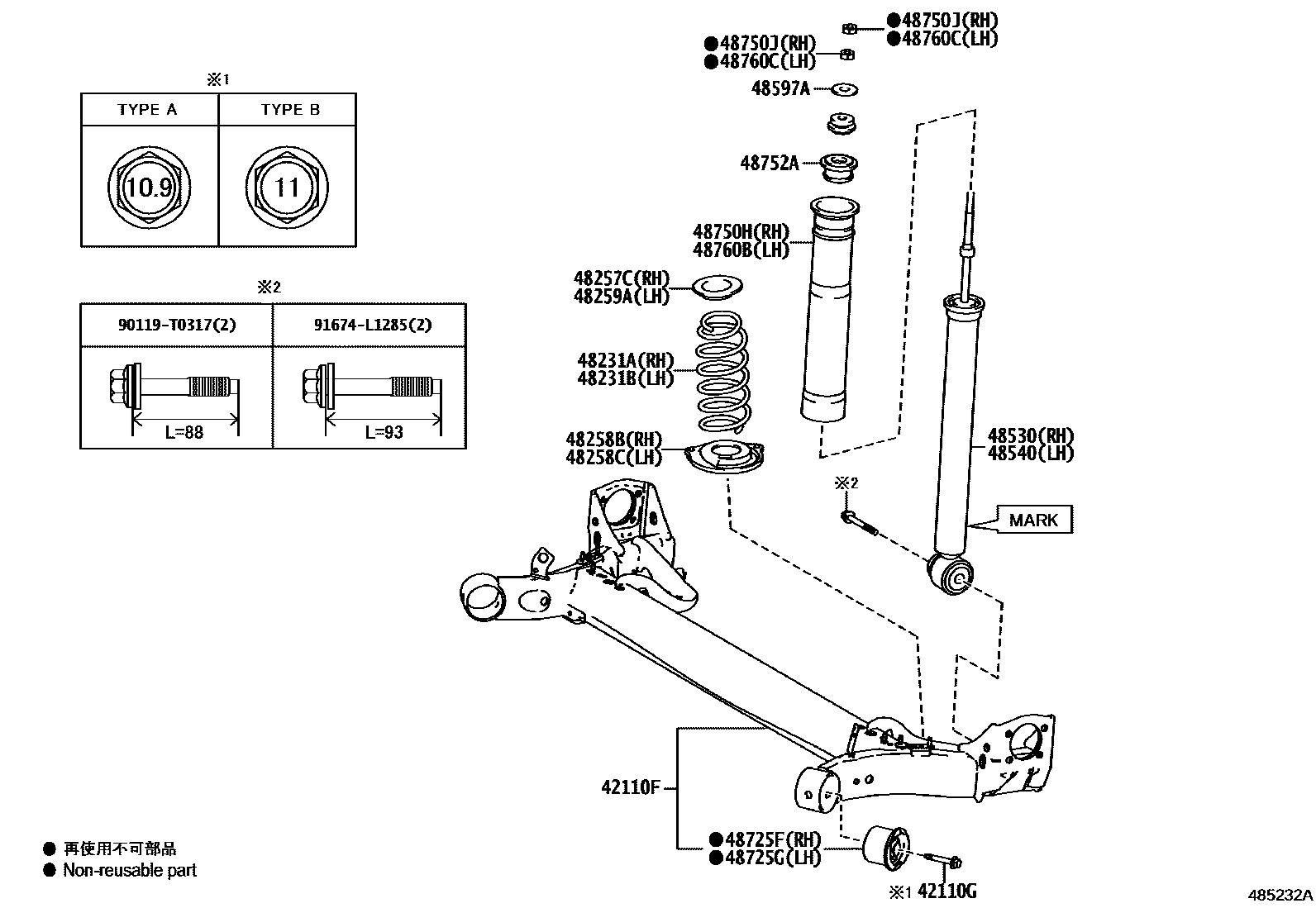

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
42110GBOLT (FOR REAR AXLE BEAM)
MADE IN JAPAN
MADE IN THAILAND
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0DD80
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0DD80
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
(L)
(J)
48752ASTOPPER, REAR SUSPENSION SUPPORT
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
(L)
(J)
90119T0317
main90119-T0317
91674L1285
main91674-L1285
20 parts on this diagram · 1 diagram in section
