REAR DISC BRAKE CALIPER & DUST COVER

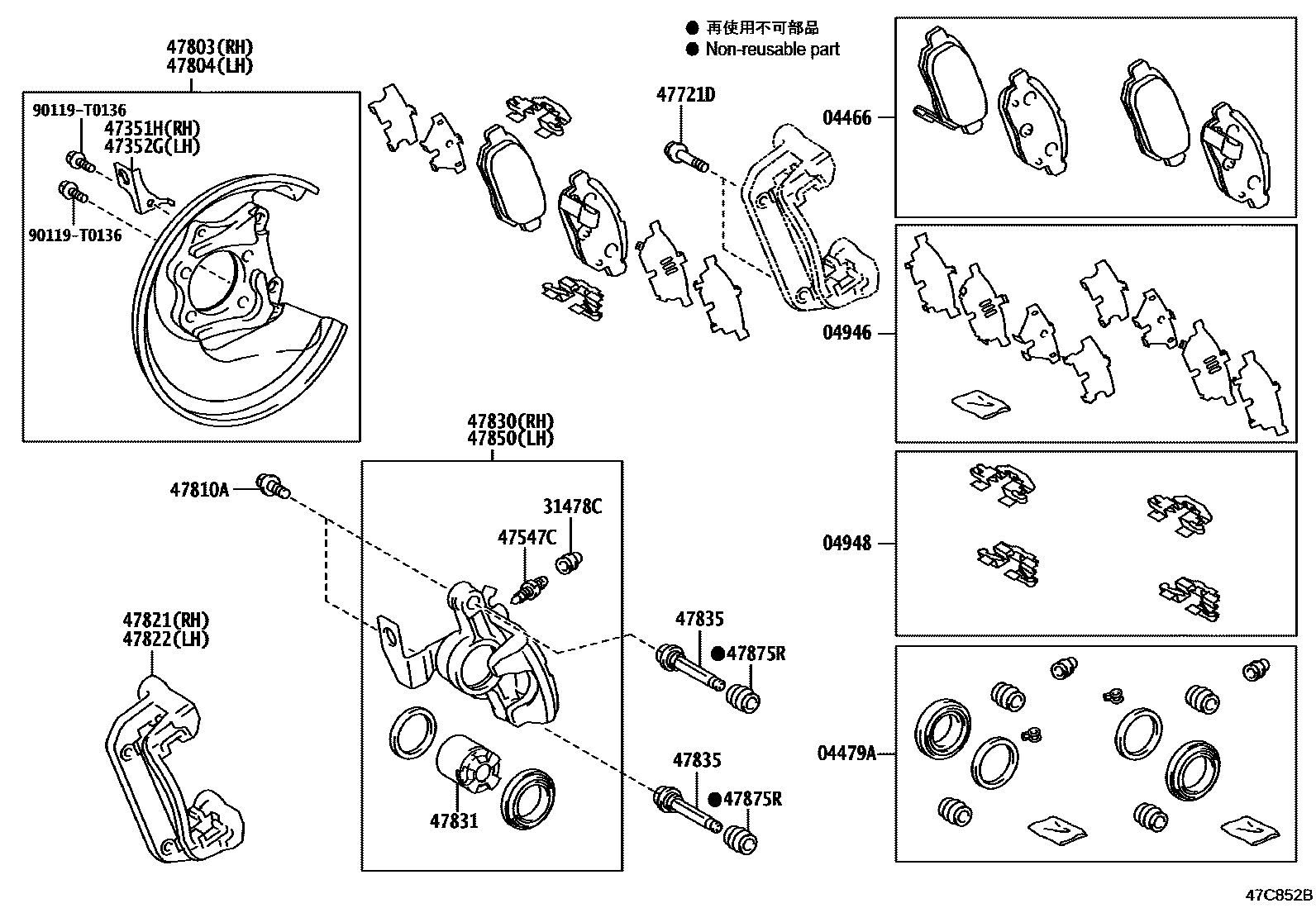

Parts diagram

04466PAD KIT, DISC BRAKE, REAR

main04466-52170i202101-202306

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52250i202101-202306

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080i202101-202306

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060i202101-202306

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010i202101-202306

47351HBRACKET, FLEXIBLE HOSE, RH

main47351-0D160i202101-202306

47352GBRACKET, FLEXIBLE HOSE, LH

main47352-0D130i202101-202306

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050i202101-202306

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404i202101-202306

*10-1.25PX24-21.5

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-0D040i202101-202306

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-0D040i202101-202306

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102i202101-202306

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151i202101-202306

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151i202101-202306

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52200i202101-202306

47831PISTON, REAR DISC BRAKE

main47831-52090i202101-202306

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150i202101-202306

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52200i202101-202306

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150i202101-202306

90119T0136

main90119-T0136

20 parts on this diagram · 1 diagram in section
