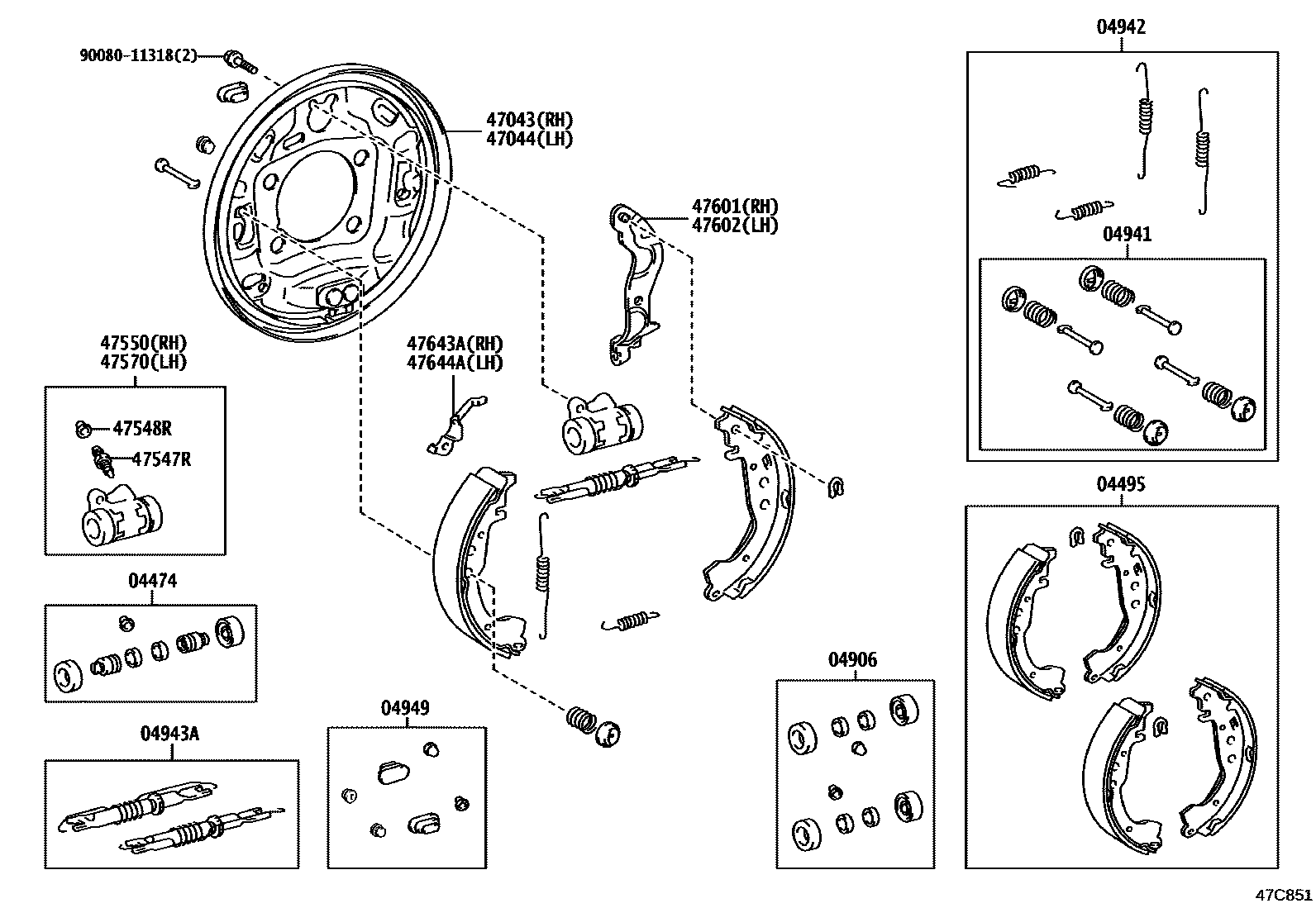

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52010iNSP151..5D..(G,R)202101-202407

04495SHOE KIT, REAR BRAKE

main04495-0D121iNSP151..5D..(G,R)202101-202407

MARK HTM LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNSP151..5D..(G,R)202101-202407

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0D050iNSP151..5D..(G,R)202101-202407

04942SPRING KIT, REAR BRAKE

main04942-0D060iNSP151..5D..(G,R)202101-202407

04943ASTRUT KIT, REAR BRAKE

main04943-0D030iNSP151..5D..(G,R)202101-202407

04949PLUG KIT, REAR BRAKE

main04949-0D040iNSP151..5D..(G,R)202101-202407

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D050iNSP151..5D..(G,R)202101-202407

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D050iNSP151..5D..(G,R)202101-202407

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNSP151..5D..(G,R)202101-202407

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNSP151..5D..(G,R)202101-202407

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52050iNSP151..5D..(G,R)202101-202407

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52050iNSP151..5D..(G,R)202101-202407

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D050iNSP151..5D..(G,R)202101-202407

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D050iNSP151..5D..(G,R)202101-202407

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D141iNSP151..5D..(G,R)202101-202407

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D141iNSP151..5D..(G,R)202101-202407

9008011318

main90080-11318

18 parts on this diagram · 1 diagram in section
