FRONT DISC BRAKE CALIPER & DUST COVER

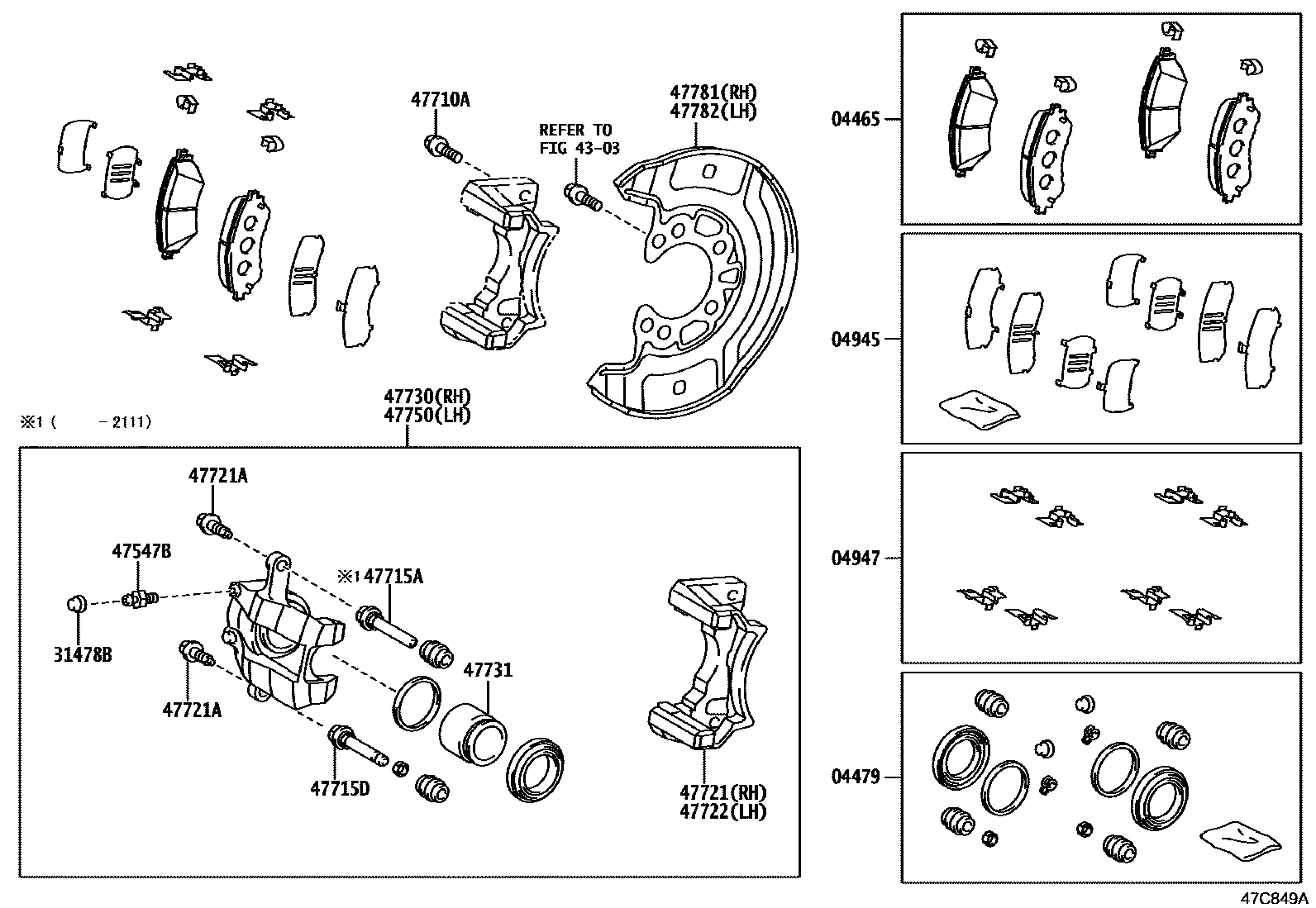

Parts diagram

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D130i¥8,600202101-202306

MARK ADVICS PV565H

main04465-0D170i202101-202407

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D181i202101-202306

main04478-0D200i202101-202407

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D070i202101-202306

main04945-0D100i202101-202407

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030i202101-202306

main04947-0D050i202101-202407

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040i202101-202306

main31478-30010i¥160202101-202407

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030i202101-202306

main47547-20010i¥200202101-202111

main90016-AJ004i202111-202407

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i¥160202101-202407

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0K220i202101-202306

main47715-06250i202101-202111

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06250i202101-202407

main47715-0K220i202101-202306

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D240i202101-202407

main47721-0D250i202101-202306

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603i¥80202101-202306

*8-1.00PX23-15

main90080-10247i202101-202407

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D230i202101-202407

main47722-0D240i202101-202306

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D240i202101-202407

main47730-0D250i202101-202306

47731PISTON, FRONT DISC BRAKE

main47731-0D110i202101-202306

main47731-0D210i202101-202407

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D230i202101-202407

main47750-0D240i202101-202306

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D160i202101-202407

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D160i202101-202407

18 parts on this diagram · 2 diagrams in section
