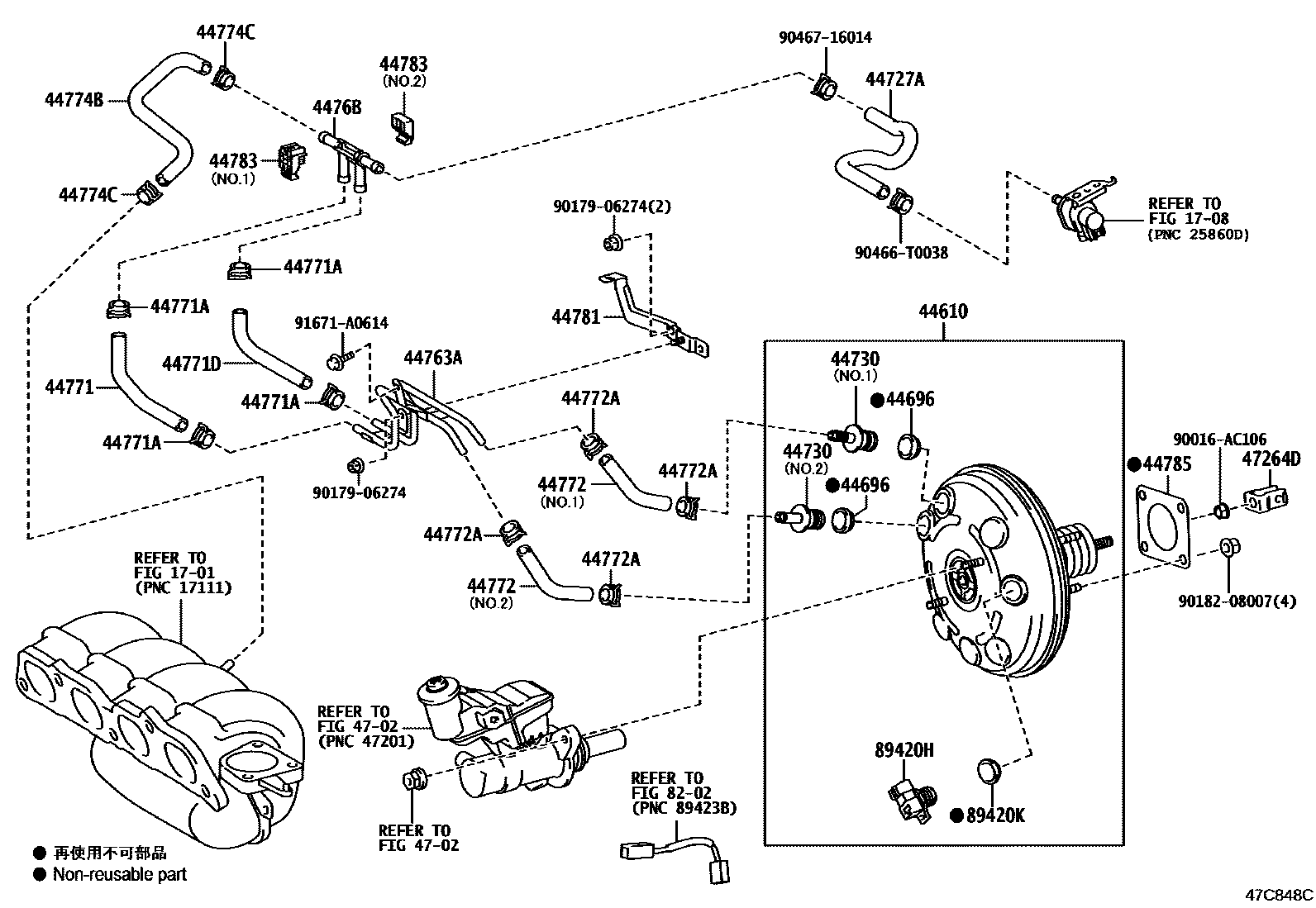

BRAKE BOOSTER & VACUUM TUBE
1701
1708
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44727AHOSE, AIR, NO.2
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
NO.1
NO.1
NO.2
44763ATUBE, HOSE TO HOSE, NO.1
4476BEJECTOR, BRAKE BOOSTER VACUUM
44771HOSE, VACUUM TUBE CONNECTOR
44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44771DHOSE, VACUUM TUBE CONNECTOR
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
NO.1
NO.2
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774BHOSE, UNION TO CONNECTOR TUBE
44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44781BRACKET, HOSE
44783CLAMP, VACUUM HOSE
NO.1
NO.2
44785GASKET, BRAKE BOOSTER
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
8202
89420HSENSOR ASSY, VACUUM
89420KGROMMET, VACUUM SENSOR
90016AC106
main90016-AC106
9017906274
9018208007
90466T0038
main90466-T0038
9046716014
91671A0614
29 parts on this diagram · 1 diagram in section
