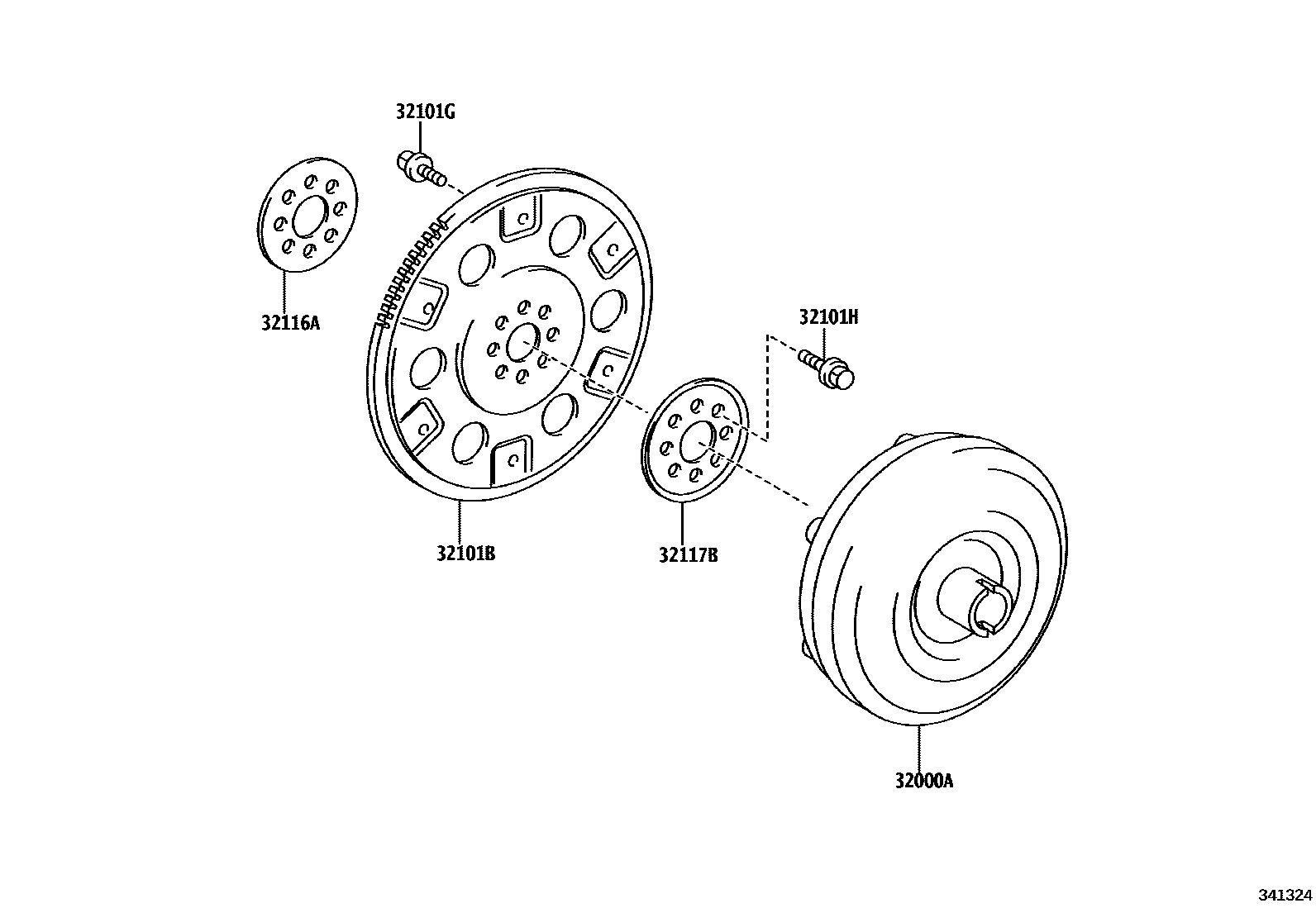

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52201iNSP151..D202101-202407

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP151202101-202306

main32111-52110iNSP151..D202306-202407

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP151..4D..(R,V)202101

*8-1.25PX12-8.4,BLACK

main90119-08498×5iNSP151..D202101-202407

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNSP151..5D202101-202306

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP151..5D202101-202306

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP151..5D202101-202306

6 parts on this diagram · 1 diagram in section
