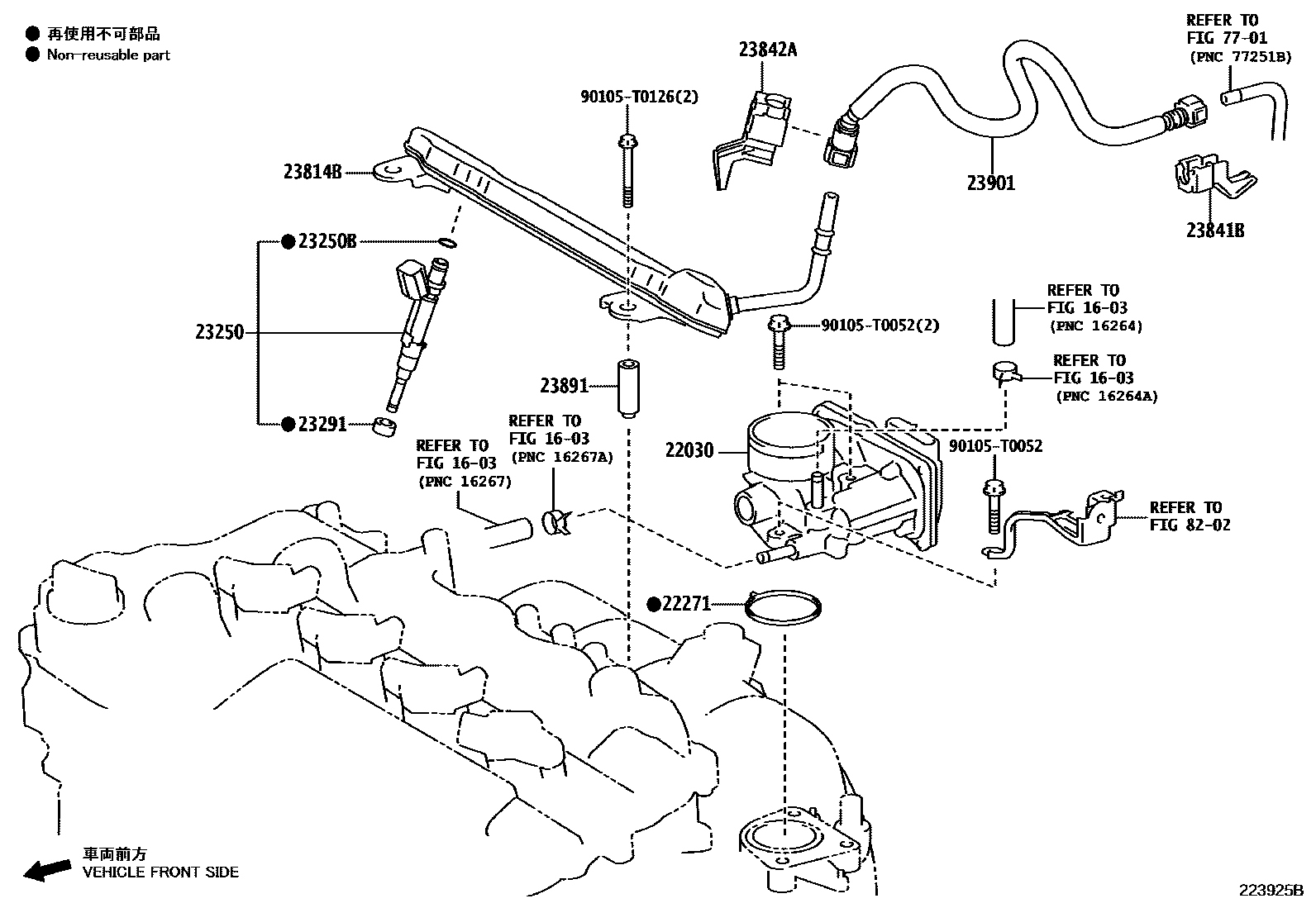

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRFE..NSP151..5D202101-202407

22271GASKET, THROTTLE BODY

main22271-0Y030i2NRFE..NSP151..5D202101-202407

23250INJECTOR ASSY, FUEL

main23209-09340i2NRFE..NSP151..5D202101-202407

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i2NRFE..NSP151..5D202101-202407

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRFE..NSP151..5D202101-202407

23814BPIPE, FUEL DELIVERY

main23814-0Y010i2NRFE..NSP151..5D202101-202407

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Y030i2NRFE..NSP151..5D202101-202407

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0Y040i2NRFE..NSP151..5D202101-202407

23891SPACER, FUEL DELIVERY

main23891-47040i2NRFE..NSP151..5D202101-202407

23901TUBE SUB-ASSY, FUEL

main23901-0Y150i2NRFE..NSP151202101-202108

main23901-0Y440i2NRFE..NSP151..5D202108-202407

7701

8202

90105T0052

main90105-T0052

90105T0126

main90105-T0126

15 parts on this diagram · 1 diagram in section
