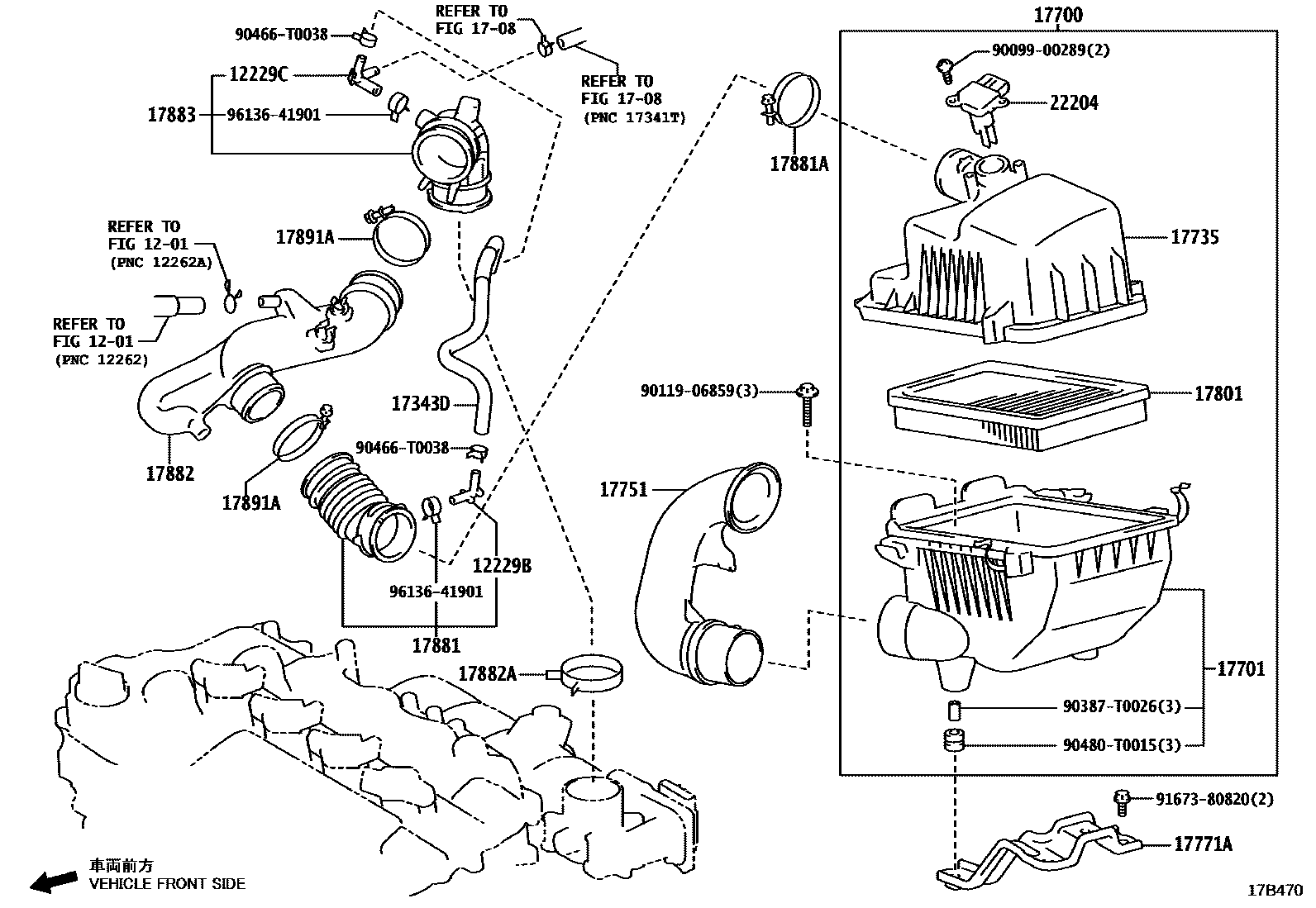

AIR CLEANER

1201

12229BPIPE, VENTILATION, NO.1

main12229-0Y120i2NRFE..NSP151..5D202101-202407

12229CPIPE, VENTILATION, NO.2

main12229-0Y170i2NRFE..NSP151..5D202101-202407

1708

17343DHOSE, AIR, NO.3

main17343-0Y031i2NRFE..NSP151..5D202101-202407

17700CLEANER ASSY, AIR

main17700-0Y210i2NRFE..NSP151..5D202101-202407

17701CASE SUB-ASSY, AIR CLEANER

main17701-0M080i2NRFE..NSP151..5D202101-202407

17735CAP, AIR CLEANER

main17735-0Y160i2NRFE..NSP151..5D202101-202407

17751INLET, AIR CLEANER, NO.1

main17751-0Y271i2NRFE..NSP151..5D202101-202407

17771ABRACKET, AIR CLEANER

main17771-0Y080i2NRFE..NSP151..5D202101-202407

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0Y040i2NRFE..NSP151..5D202101-202407

17881HOSE, AIR CLEANER, NO.1

main17881-0Y180i2NRFE..NSP151..5D202101-202407

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i2NRFE..NSP151..5D202101-202407

17882HOSE, AIR CLEANER, NO.2

main17882-0Y140i2NRFE..NSP151..5D202101-202407

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2NRFE..NSP151..5D202101-202407

17883HOSE, AIR CLEANER, NO.3

main17883-0Y071i2NRFE..NSP151..5D202101-202407

17891ACLAMP, AIR CLEANER HOSE

main96111-10730i2NRFE..NSP151..5D202101-202407

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V020i2NRFE..NSP151..5D202101-202407

9009900289

main90099-00289

9011906859

main90119-06859

90387T0026

main90387-T0026

90466T0038

main90466-T0038

90480T0015

main90480-T0015

9167380820

main91673-80820

9613641901

main96136-41901

25 parts on this diagram · 1 diagram in section
